Drive Information Center (DIC) Switch(es) Inoperative

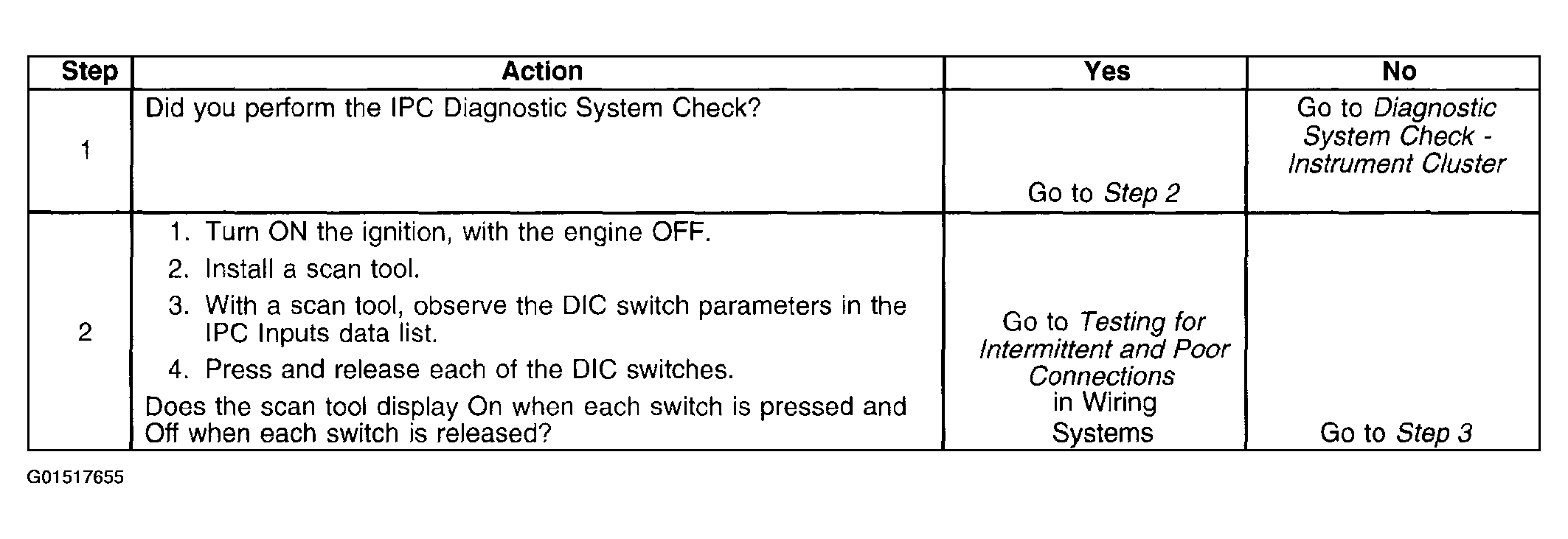

Fig 1: Drive Information Center (DIC) Switch(es) Inoperative Diagnosis (Steps 1-2)
G01517655Courtesy of GENERAL MOTORS CORP.

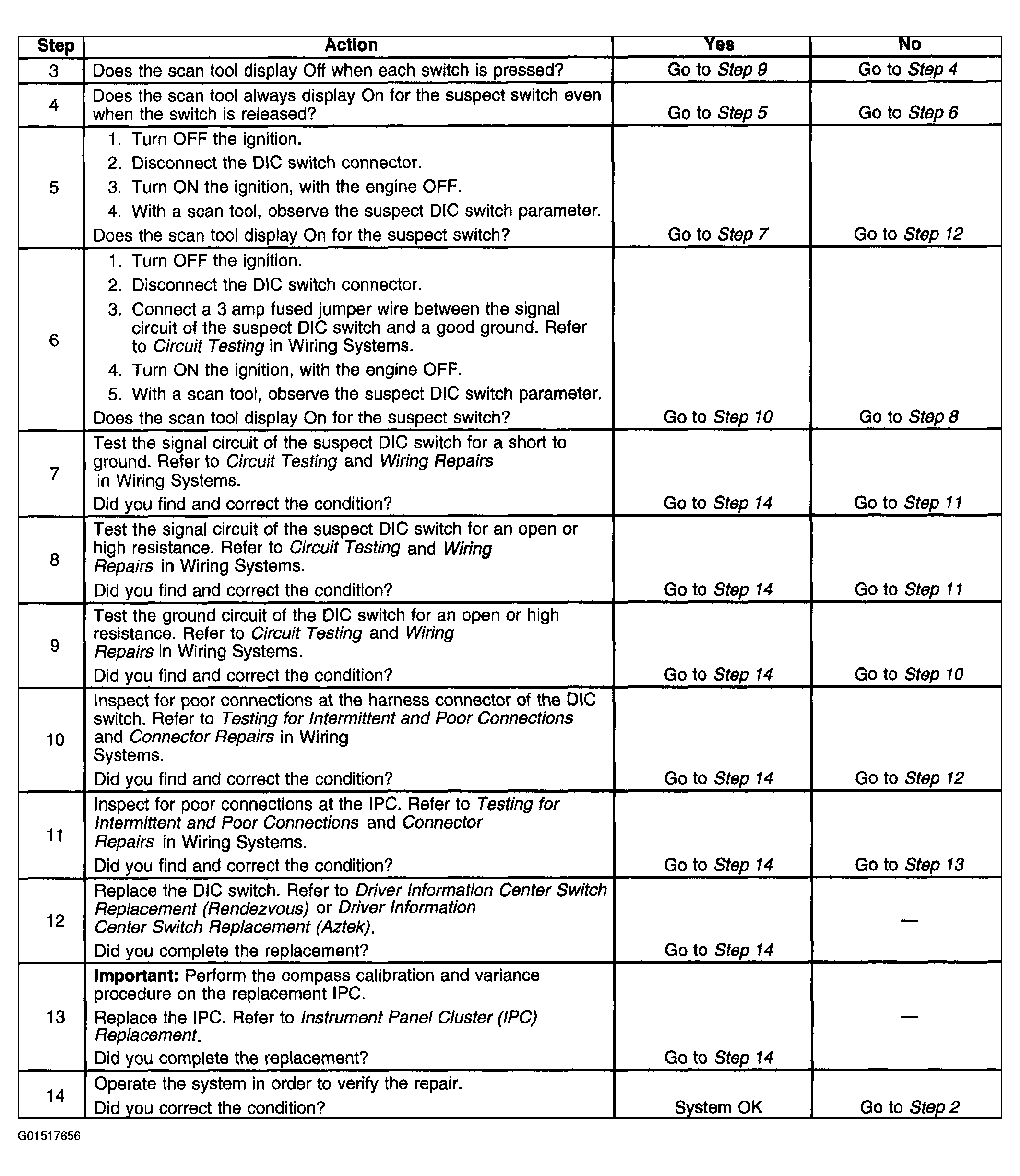

Fig 2: Drive Information Center (DIC) Switch(es) Inoperative Diagnosis (Steps 3-14)
G01517656Courtesy of GENERAL MOTORS CORP.
