Removal Procedure

  1. Remove the windshield garnish molding. Refer to GARNISH MOLDING REPLACEMENT -- WINDSHIELD PILLAR .

    Important:  Remove the upper trim panel slowly, the retainer clips could possibly fall into the instrument panel.

  2. Lift the instrument panel (I/P) upper trim panel approximately 51 mm (2.0 in) and pull rearward to release the retainers.
  3. Remove the DRL ambient light sensor. Refer to DAYTIME RUNNING LAMPS (DRL) AMBIENT LIGHT SENSOR REPLACEMENT .
  4. If equipped, remove the sun load sensor.

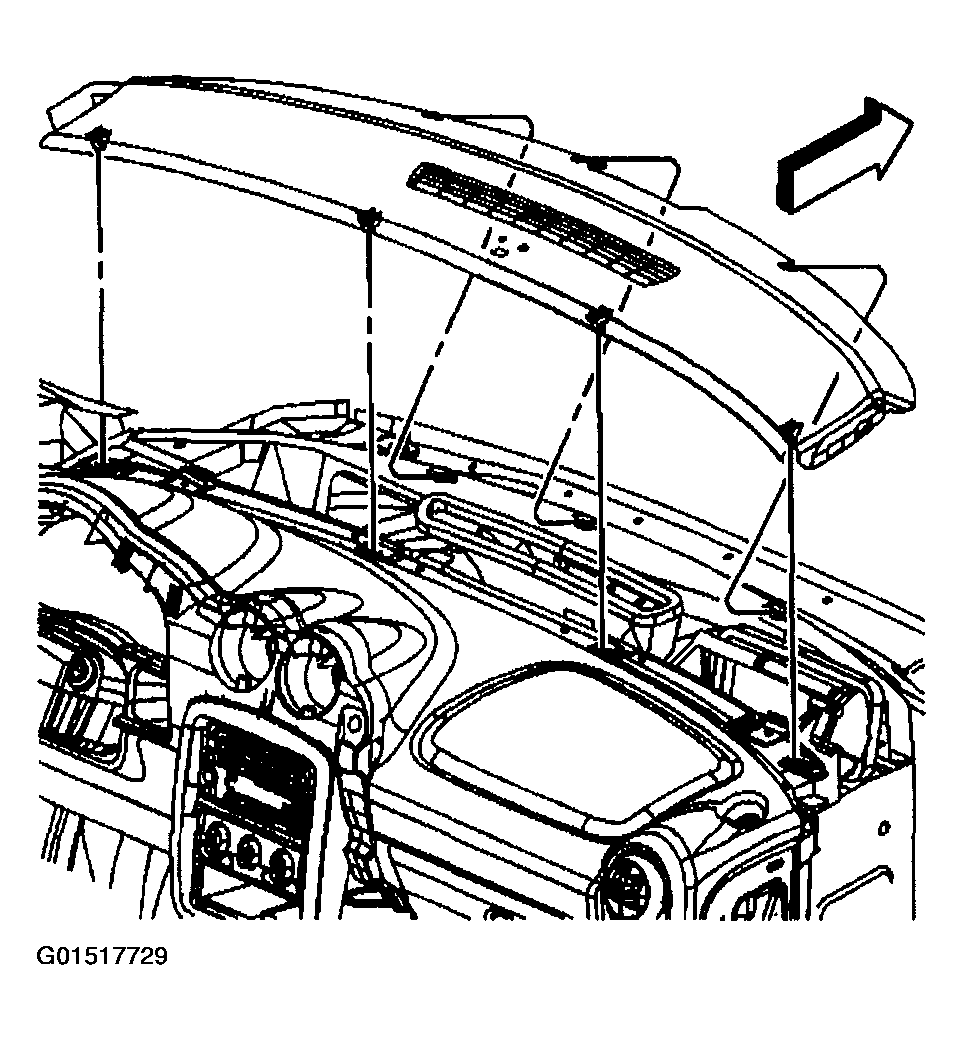

    Fig 1: Removing I/P Upper Trim Panel
    G01517729Courtesy of GENERAL MOTORS CORP.
  5. Remove the I/P upper trim panel.

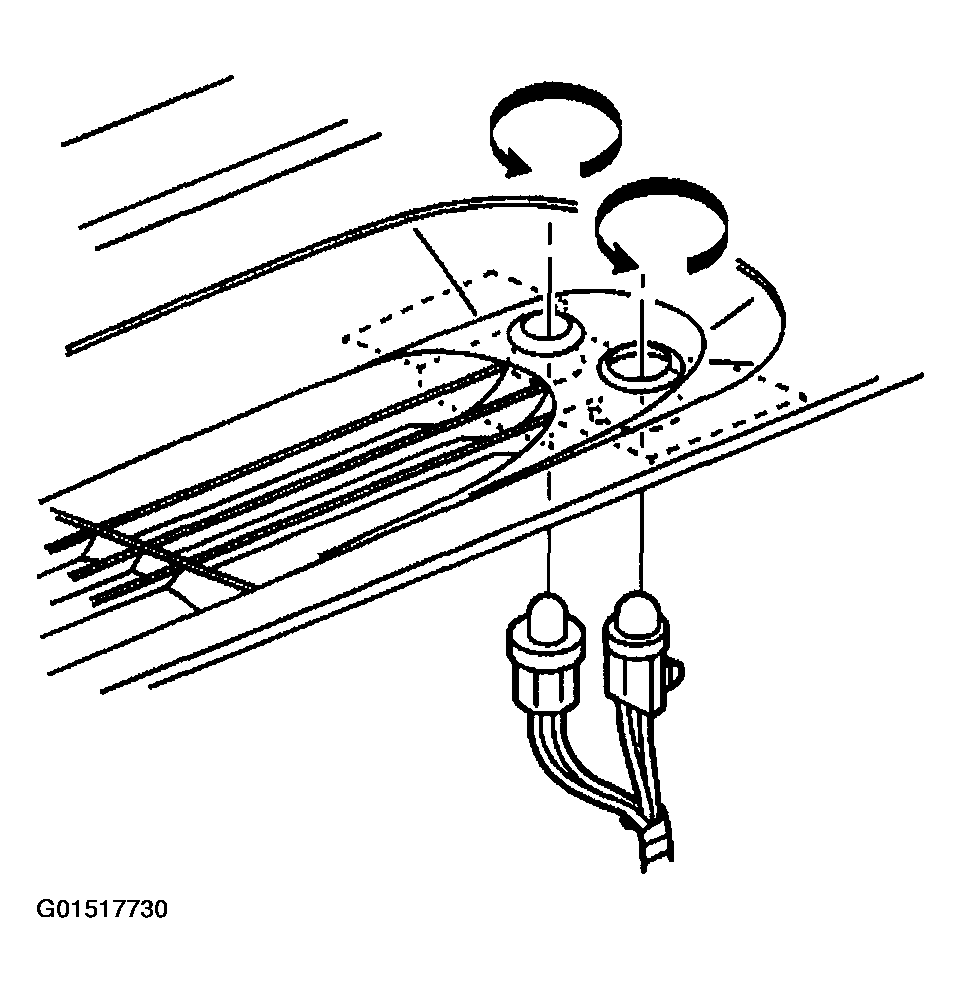

    Fig 2: Removing Sun Load Sensor
    G01517730Courtesy of GENERAL MOTORS CORP.
