Installation Procedure

  1. Perform the following steps in order to install the knee bolster to the instrument panel:
    1. Align the clips with the slots in the instrument panel.
    2. Push in, in order to secure the knee bolster.
  2. Install the bolts to the bottom of the knee bolster.

    Tighten

    Tighten the bolts/screws to 2.5 N.m (22 lb in).

  3. Install the IP insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT  and CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT  .

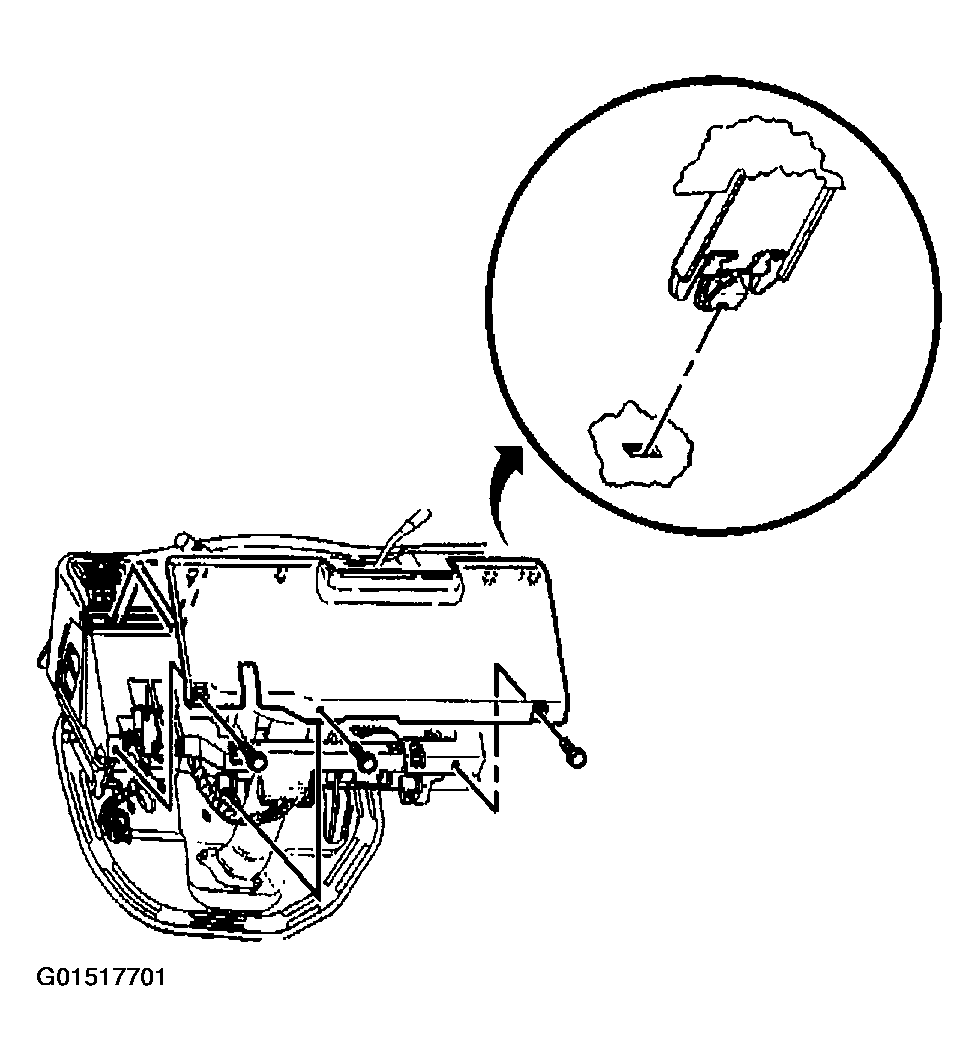

    Fig 1: Installing Knee Bolster
    G01517701Courtesy of GENERAL MOTORS CORP.
