Removal Procedure

  1. Open the instrument panel compartment.
  2. Remove the bolts from the instrument panel compartment hinge.
  3. Remove the instrument panel compartment from the instrument panel.

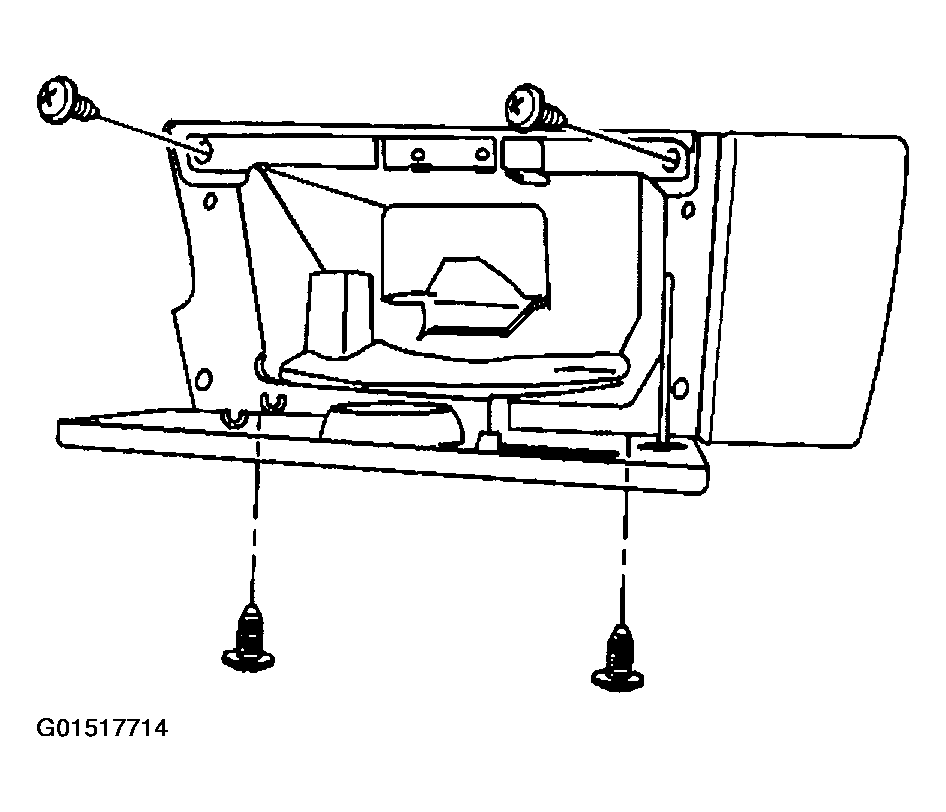

    Fig 1: Removing Instrument Panel Compartment
    G01517714Courtesy of GENERAL MOTORS CORP.
