Removal Procedure

  1. Remove the front floor console. Refer to CONSOLE REPLACEMENT - FRONT FLOOR (AZTEK)  or Console Replacement - Front Floor
  2. Remove the upper bolts (2) from the IP.
  3. Remove the lower nuts (1) from the floor.
  4. Remove the front floor console bracket from the floor.

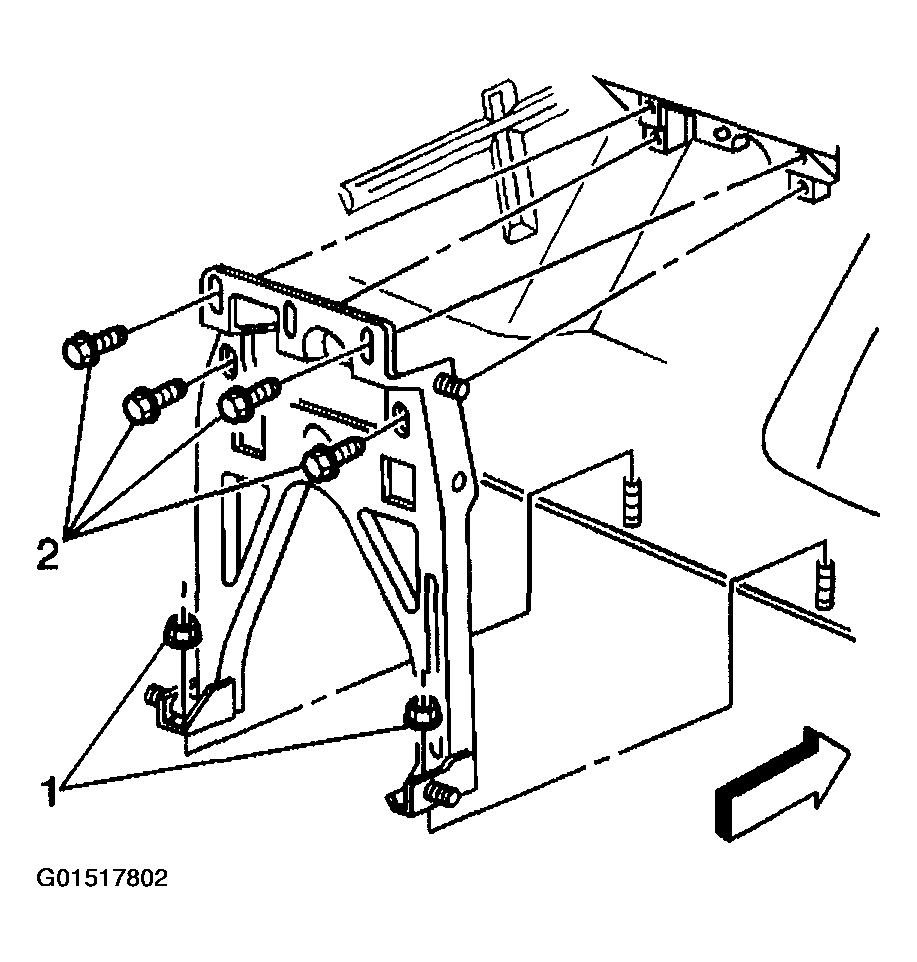

    Fig 1: Removing Front Floor Console Bracket
    G01517802Courtesy of GENERAL MOTORS CORP.
