Seat Belt Indicator Circuit Malfunction

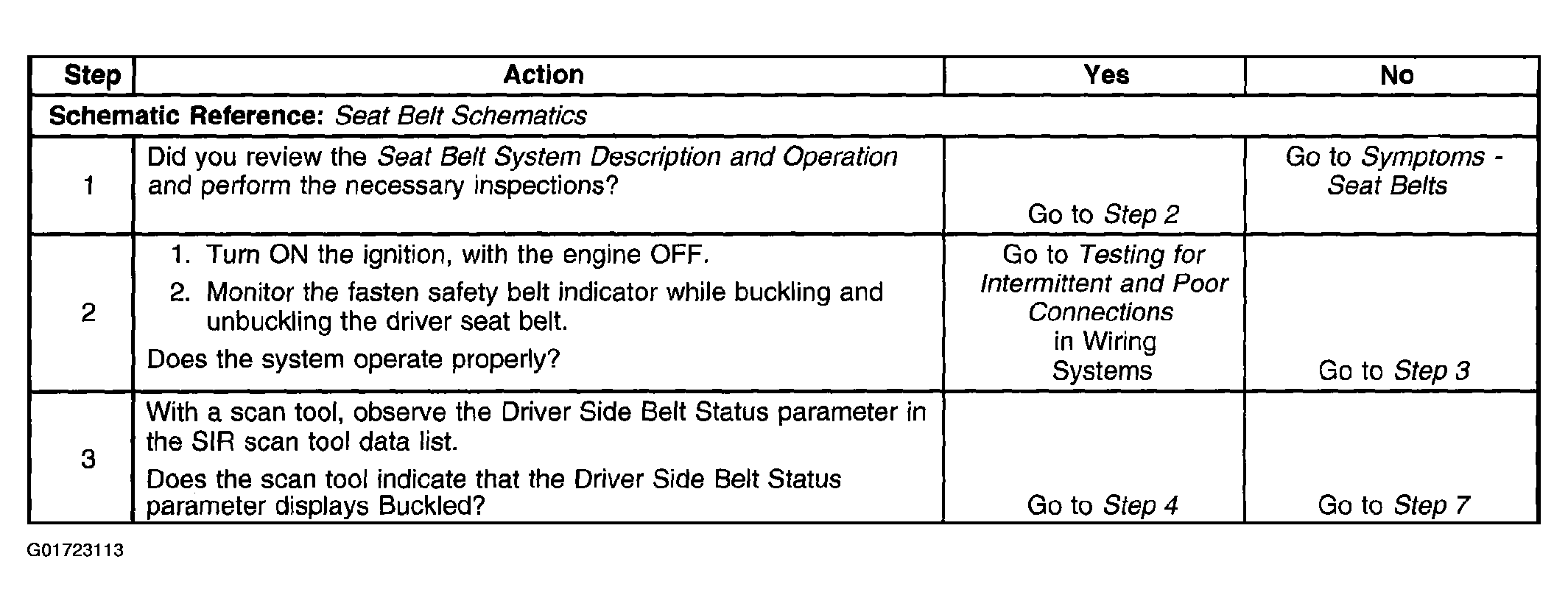

Fig 1: Seat Belt Indicator Circuit Malfunction (1 Of 2)
G01723113Courtesy of GENERAL MOTORS CORP.
Fig 2: Seat Belt Indicator Circuit Malfunction (2 Of 2)
G01723114Courtesy of GENERAL MOTORS CORP.
