Head Up Display (HUD) Inoperative
Head Up Display (HUD) Inoperative

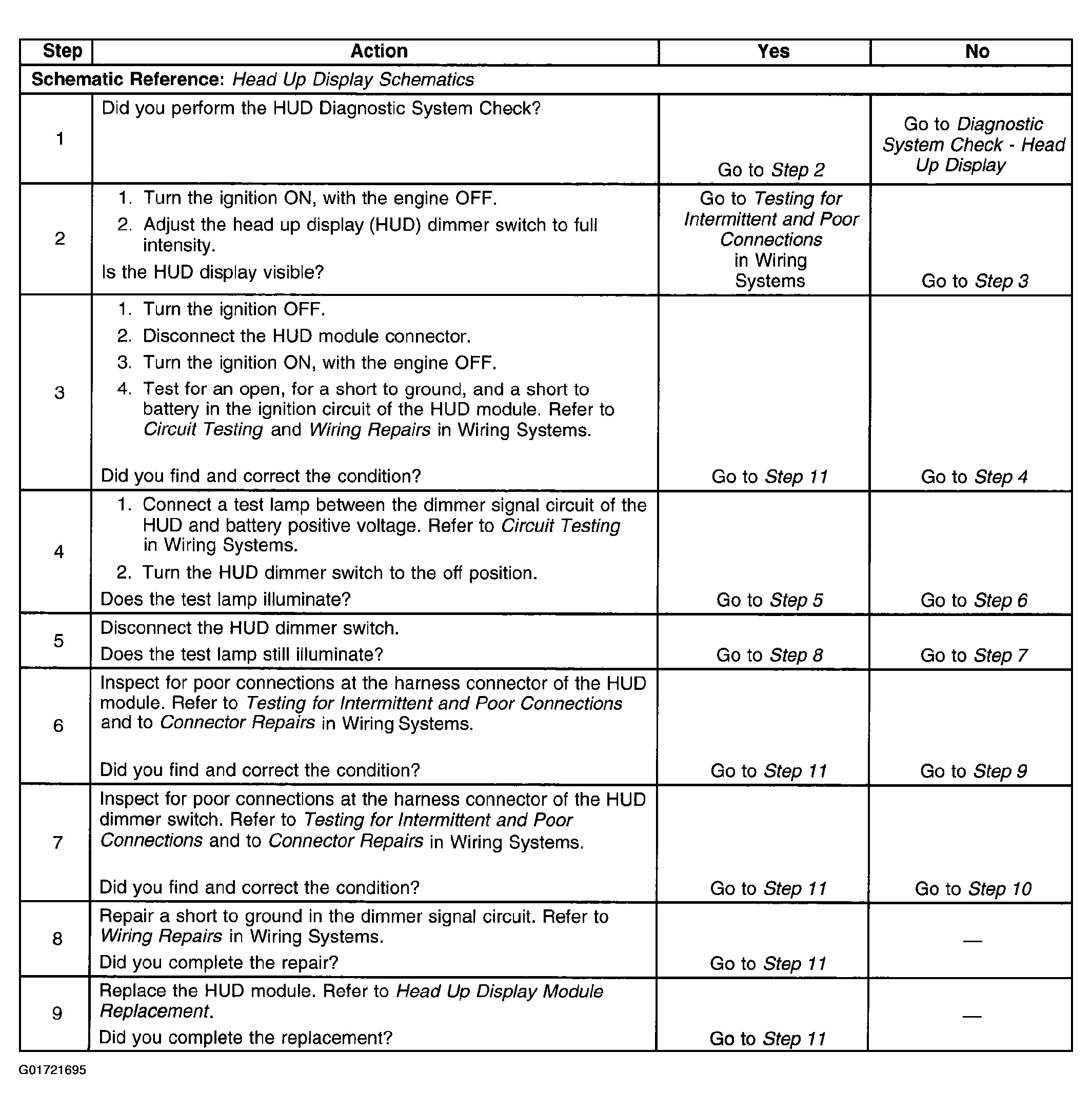

Fig 1: Head Up Display (HUD) Inoperative (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

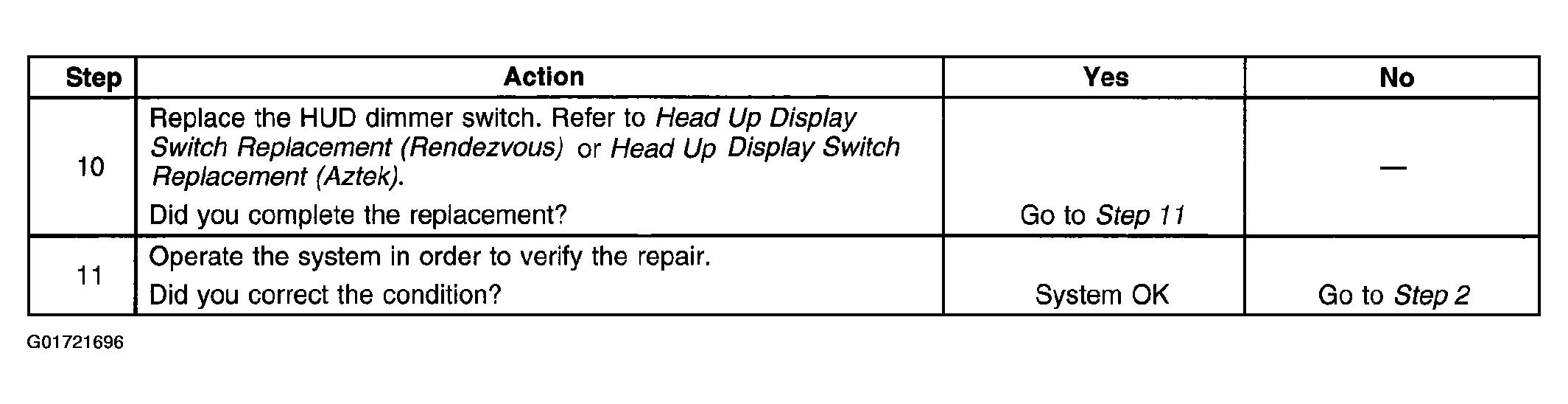

Fig 2: Head Up Display (HUD) Inoperative (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
