Head Up Display (HUD) Image Adjustment Inoperative

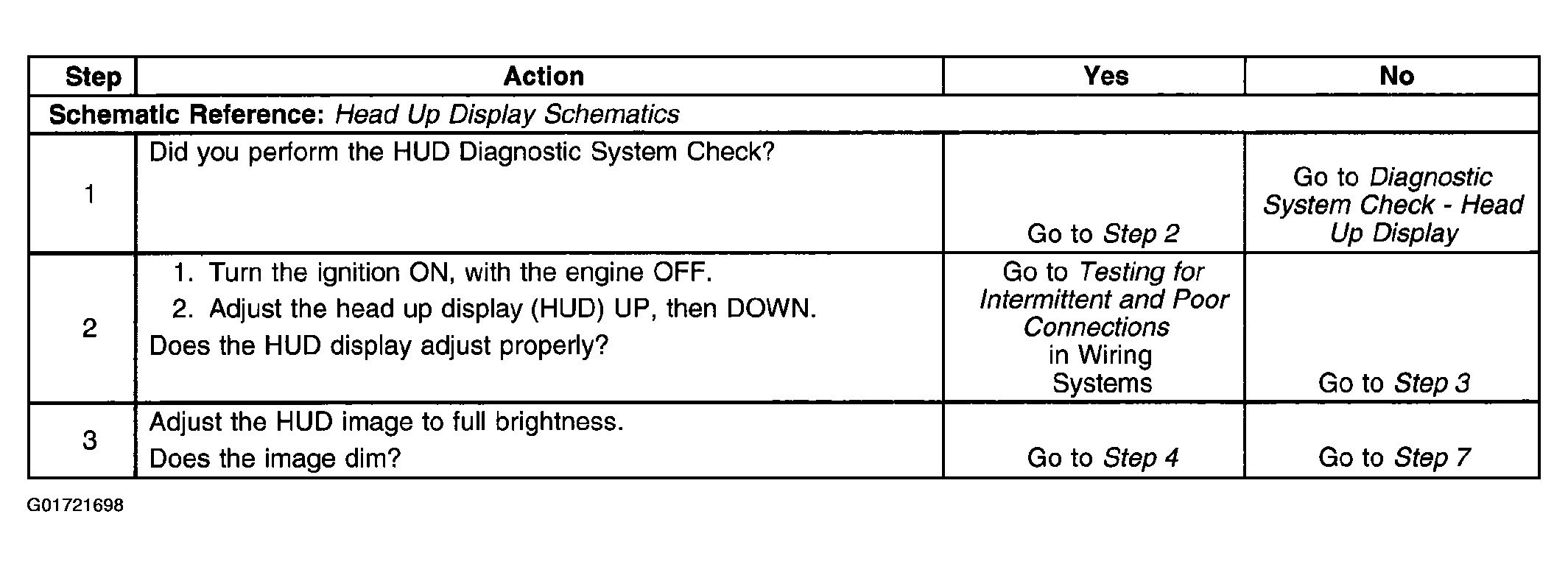

Fig 1: Head Up Display (HUD) Image Adjustment Inoperative (1 Of 2)
G01721698Courtesy of GENERAL MOTORS CORP.

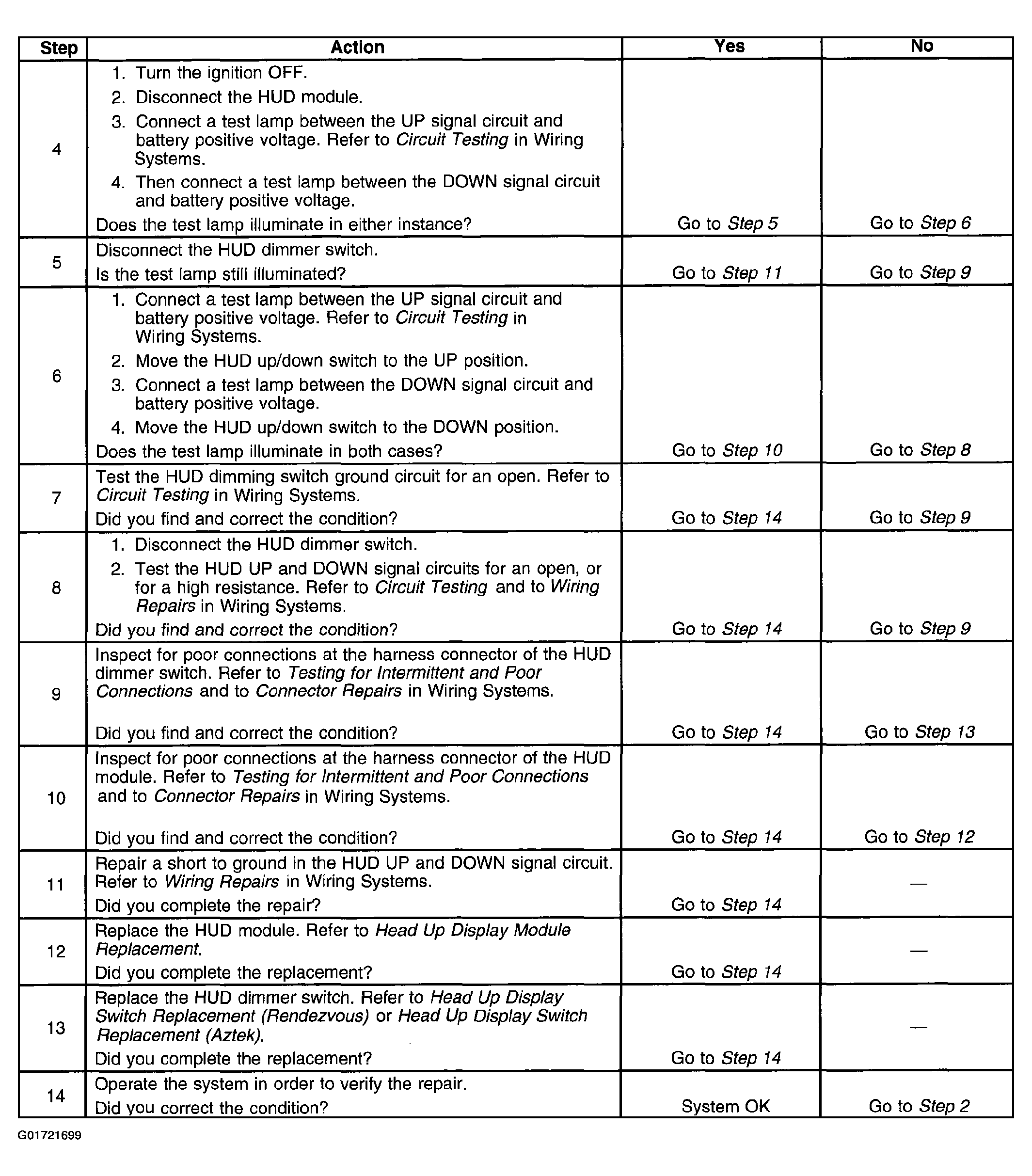

Fig 2: Head Up Display (HUD) Image Adjustment Inoperative (2 Of 2)
G01721699Courtesy of GENERAL MOTORS CORP.
