Driver Information Center (DIC) Temperature Display Always Reads SC

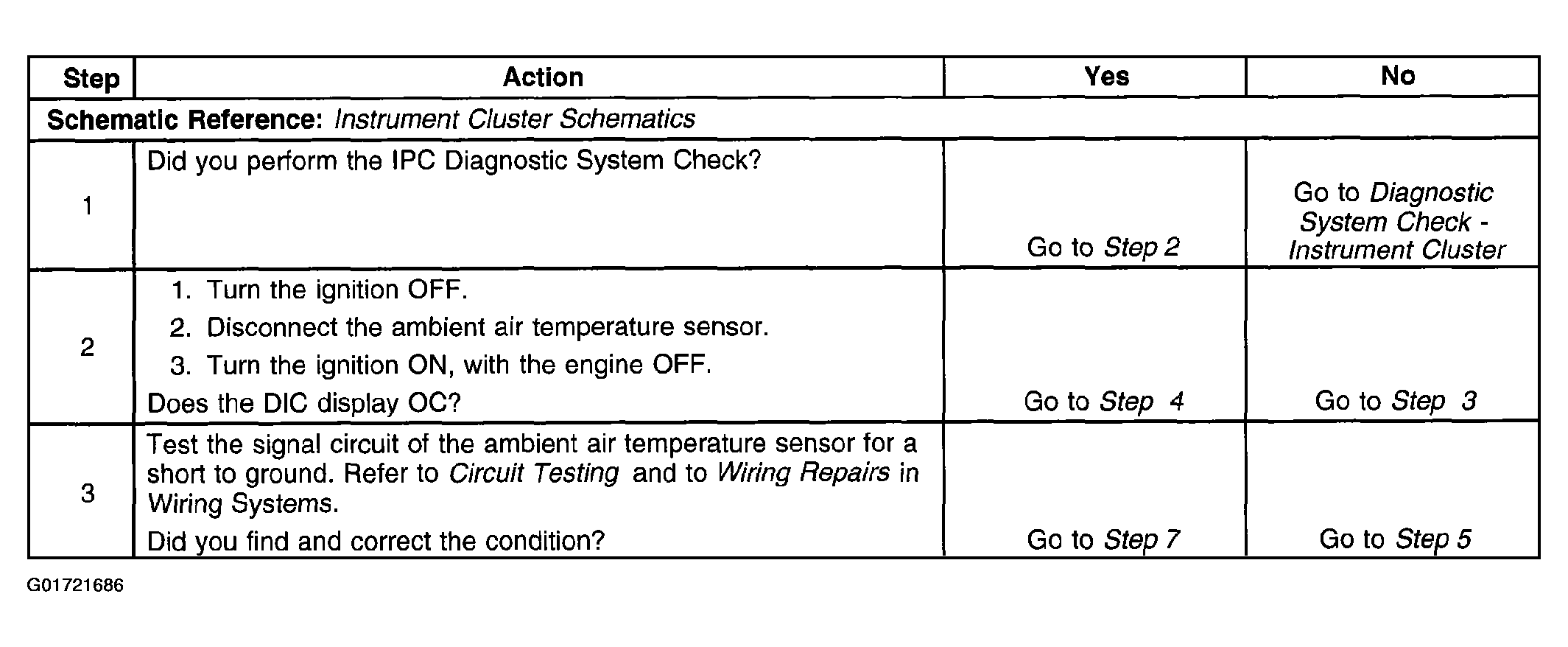

Fig 1: Driver Information Center (DIC) Temperature Display Always Reads SC (1 Of 2)
G01721686Courtesy of GENERAL MOTORS CORP.

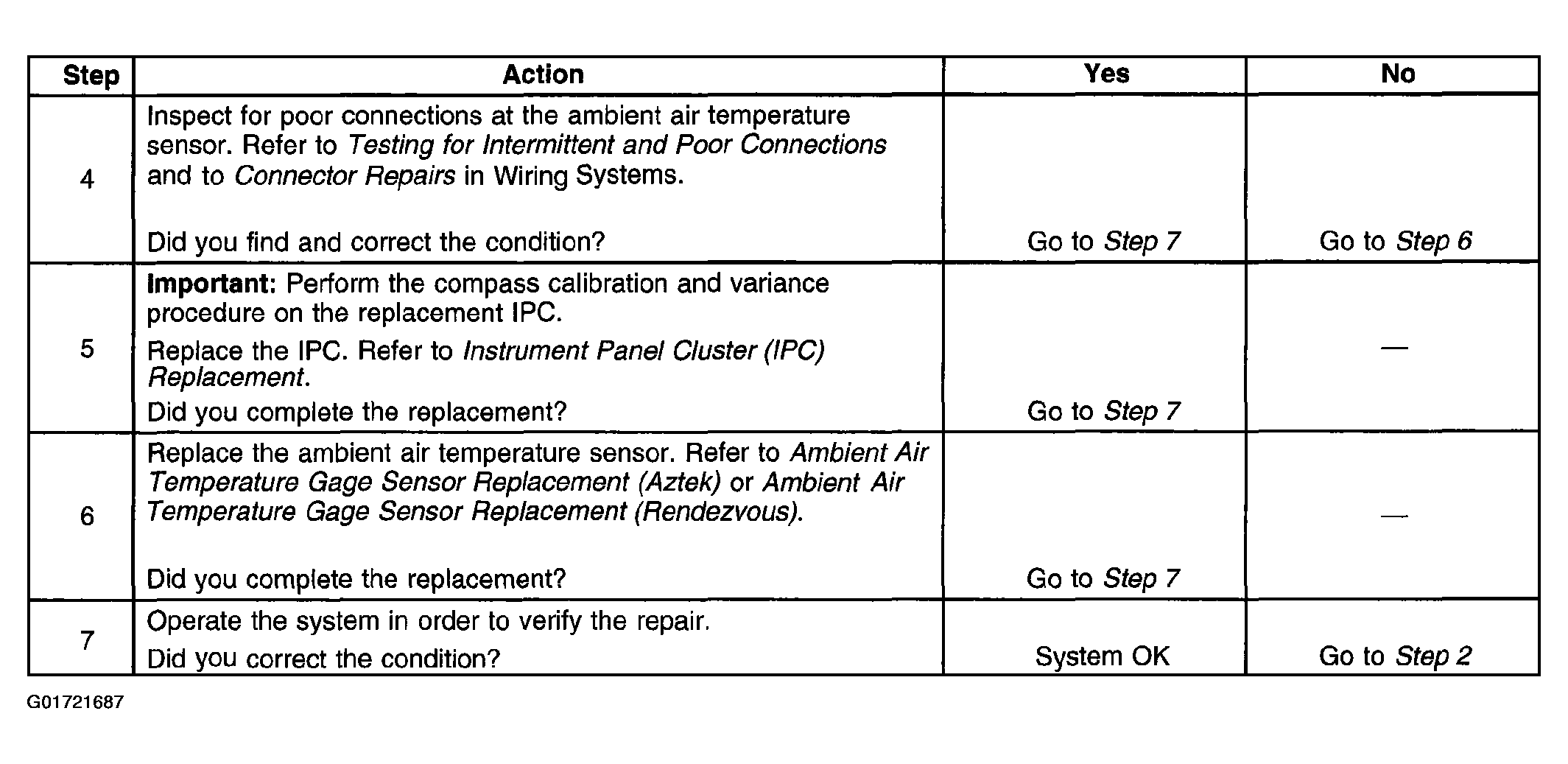

Fig 2: Driver Information Center (DIC) Temperature Display Always Reads SC (1 Of 2)
G01721687Courtesy of GENERAL MOTORS CORP.
