Instrument Cluster Schematics (Power, Ground, Serial Data and Message Center)

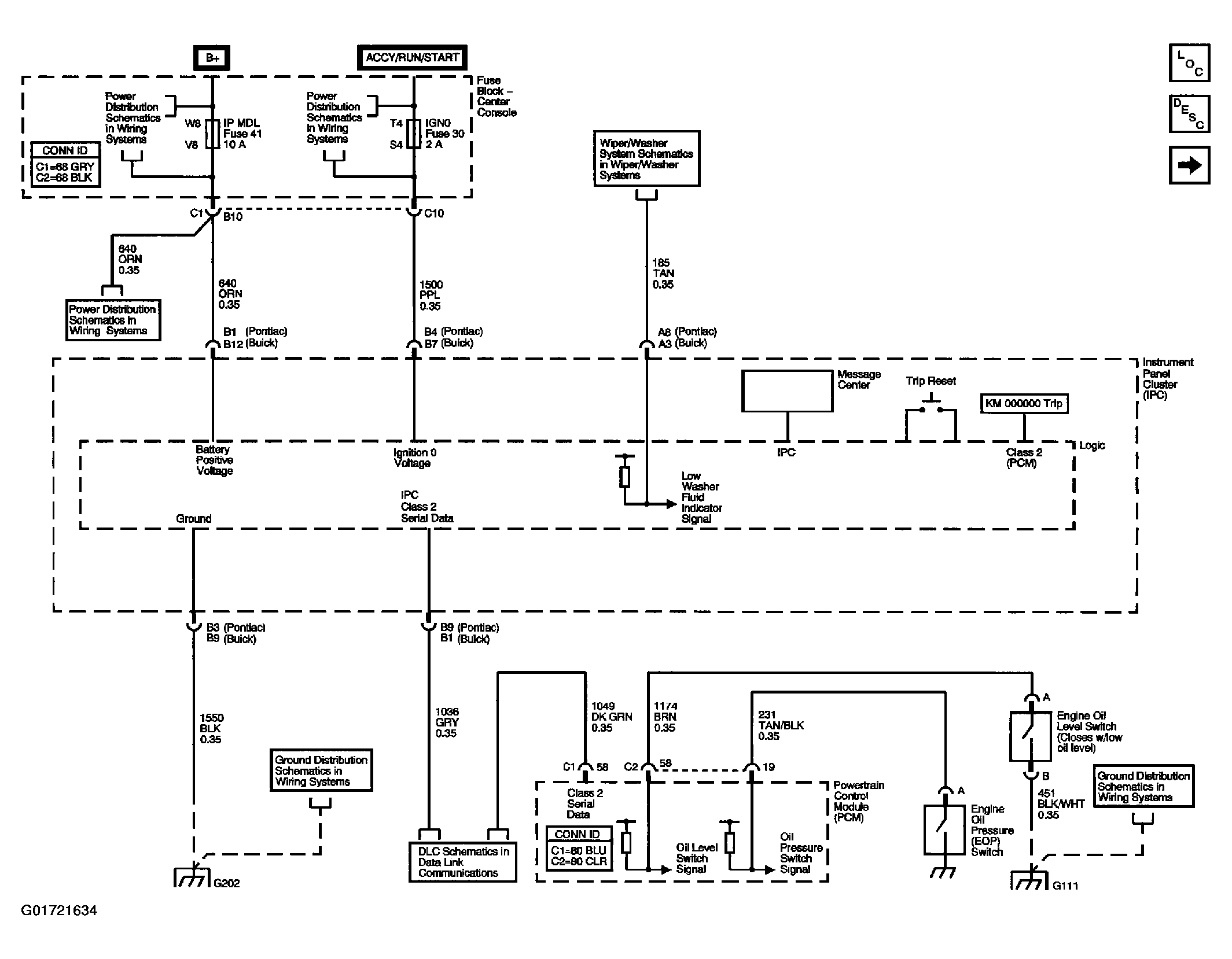

Fig 1: Instrument Cluster Schematics (Power, Ground, Serial Data and Message Center)

Courtesy of GENERAL MOTORS CORP.

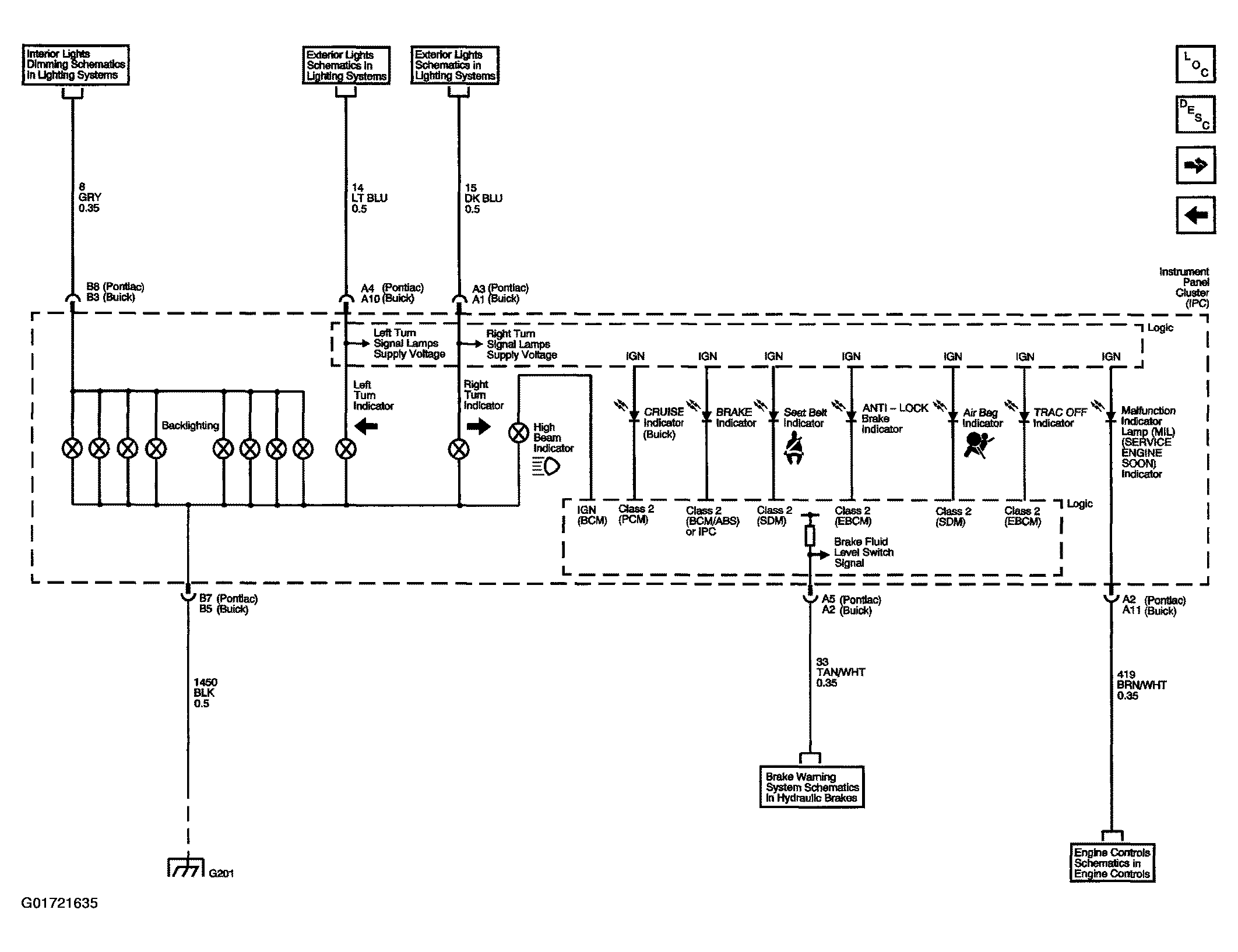

Fig 2: Instrument Cluster Schematics (Indicators)

Courtesy of GENERAL MOTORS CORP.

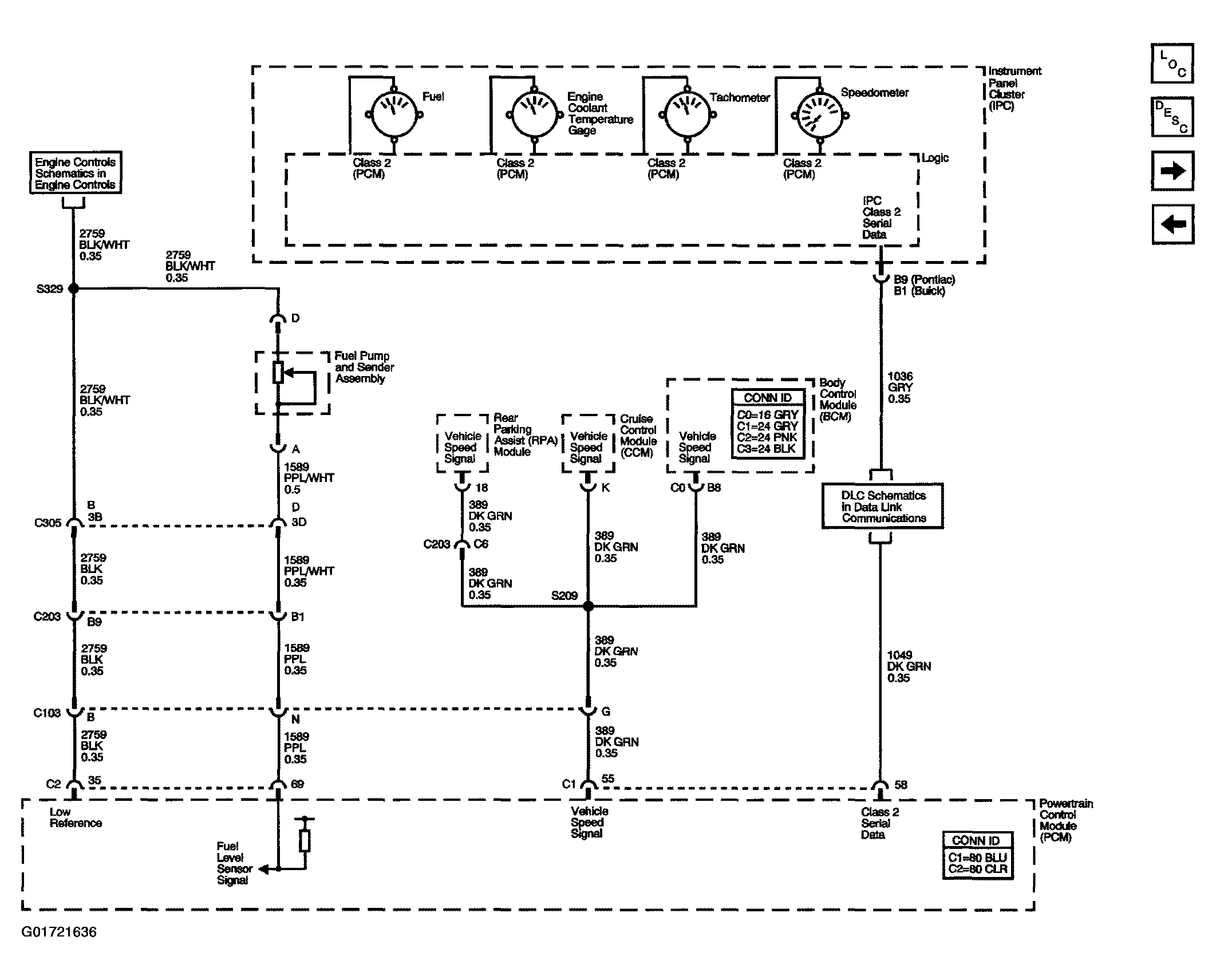

Fig 3: Instrument Cluster Schematics (Gauges)

Courtesy of GENERAL MOTORS CORP.

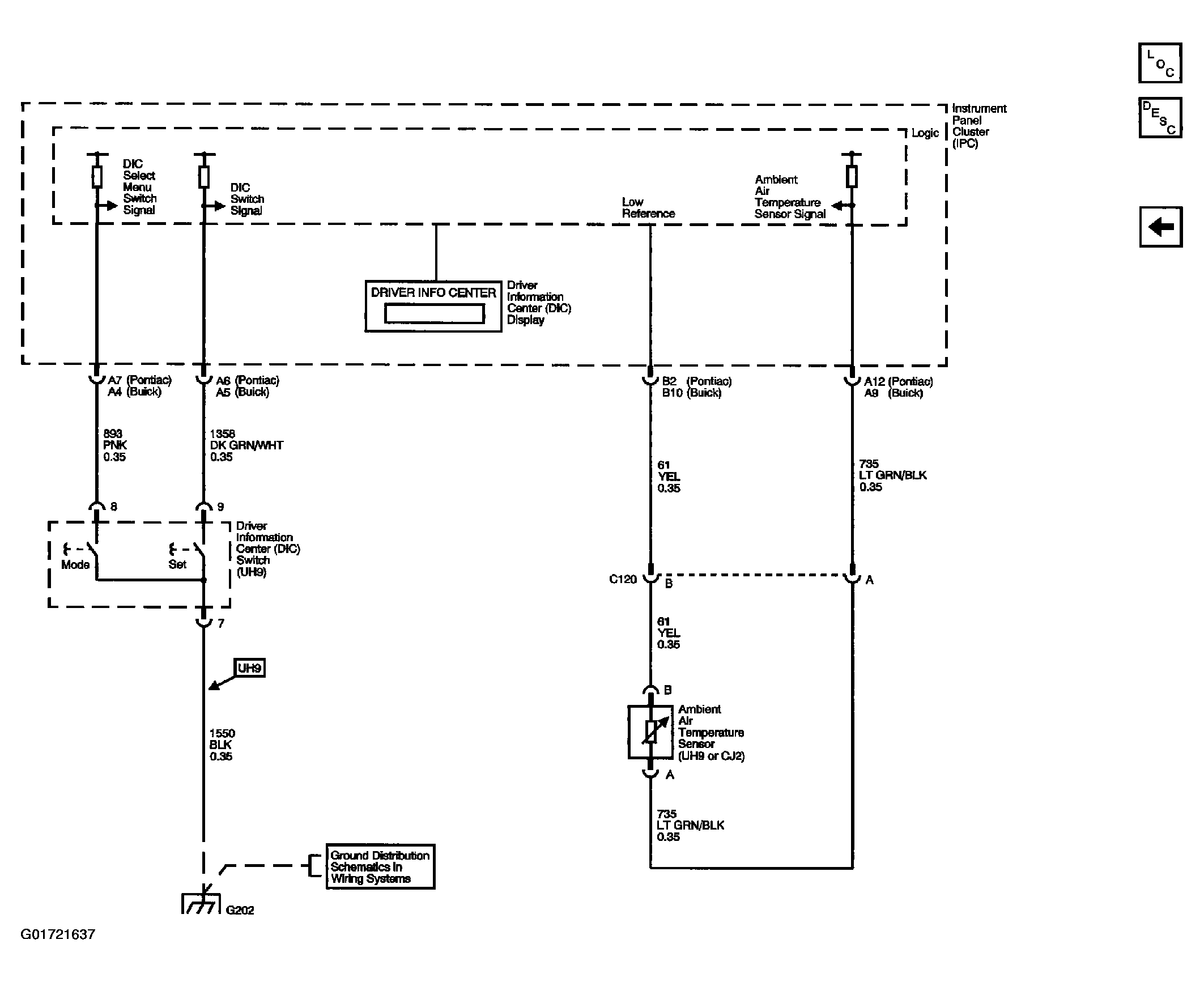

Fig 4: Instrument Cluster Schematics (Driver Information Center (DIC)

Courtesy of GENERAL MOTORS CORP.
