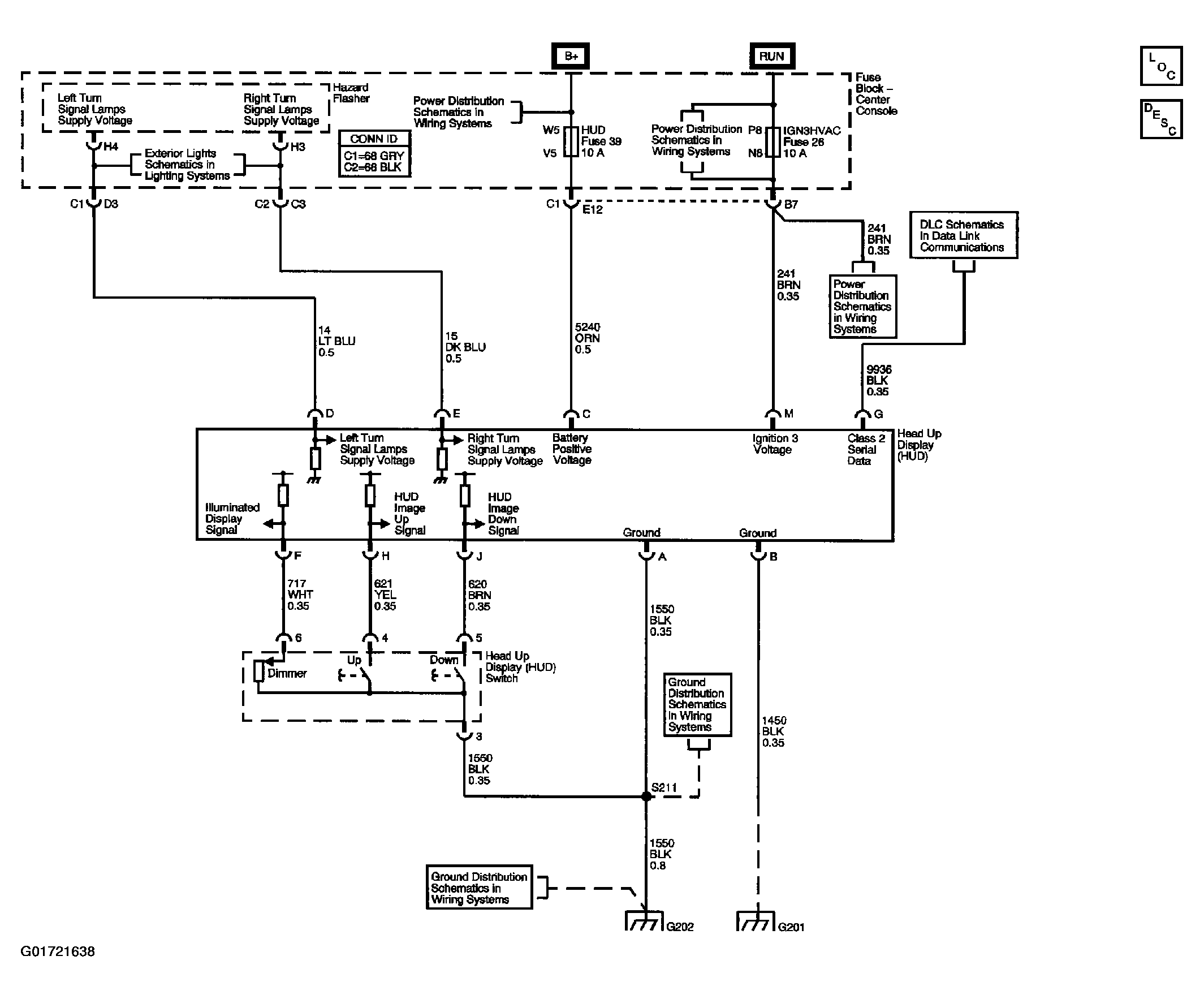

Home >> Pontiac >> 2002 >> Aztek FWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel, Gauges & Console >> Schematic and Routing Diagrams >> Head Up Display Schematics
