Removal Procedure

  1. Position the floor shifter in the Drive position.
  2. Remove 2 screws from the lower trim plate.
  3. Remove the instrument panel (IP) accessory trim plate by releasing the retainers.

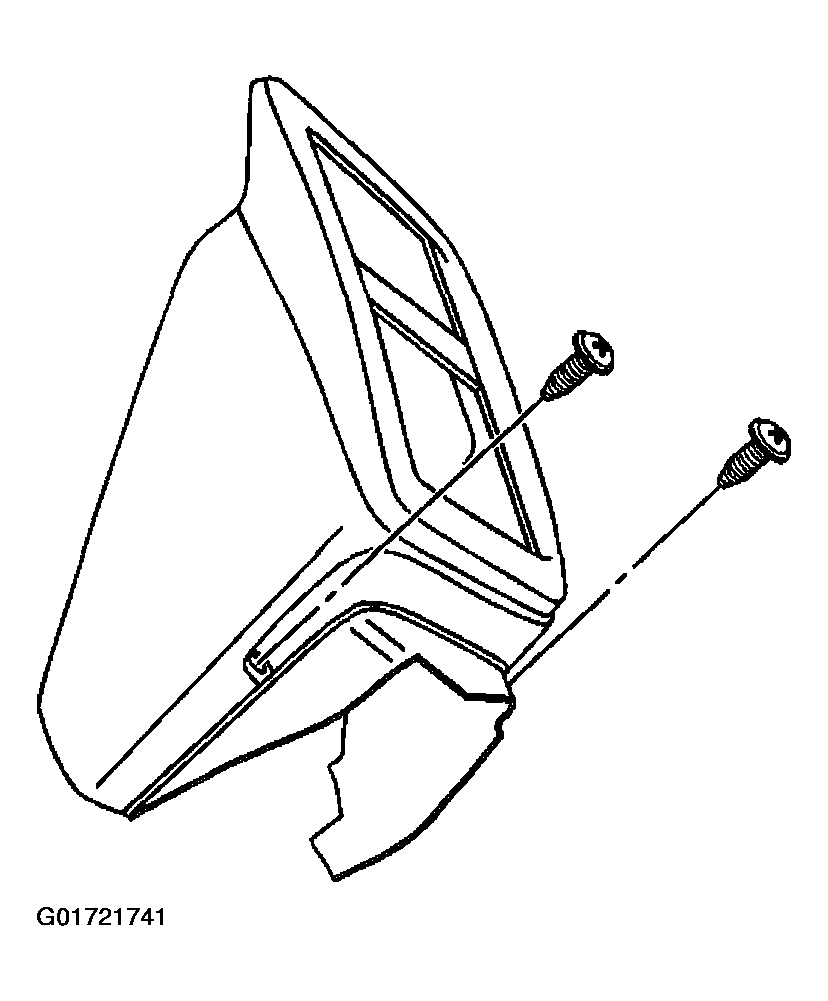

    Fig 1: Removing Lower Trim Plate And Screws
    G01721741Courtesy of GENERAL MOTORS CORP.
