Installation Procedure

  1. Align the retainers on the IP accessory trim plate to the slots in the IP.
  2. Install the retainers into the slots until the retainers are fully seated.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the 2 screws to the lower trim plate.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

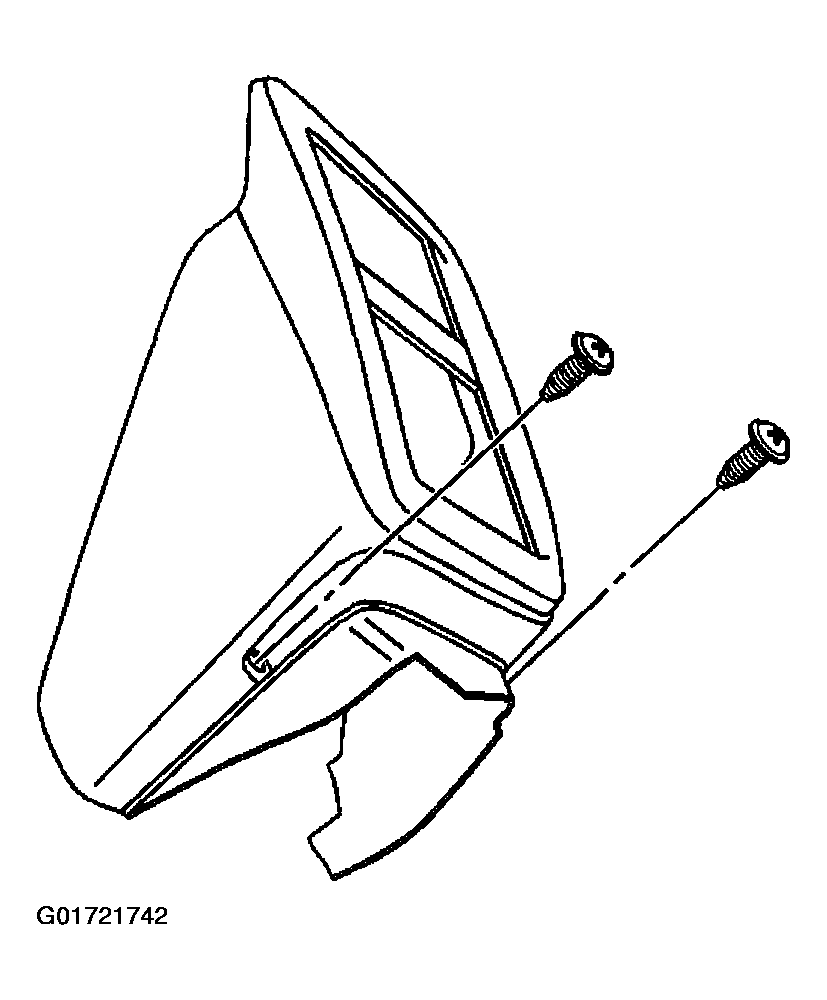

    Fig 1: Installing Lower Trim Plate And Screws
    G01721742Courtesy of GENERAL MOTORS CORP.
