Installation Procedure

  1. Connect the electrical connectors to the trim plate.
  2. Install the trim plate assembly.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the trim plate screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  4. Install the cup liners.
  5. Install the power accessory liners.
  6. Close the armrest cover.

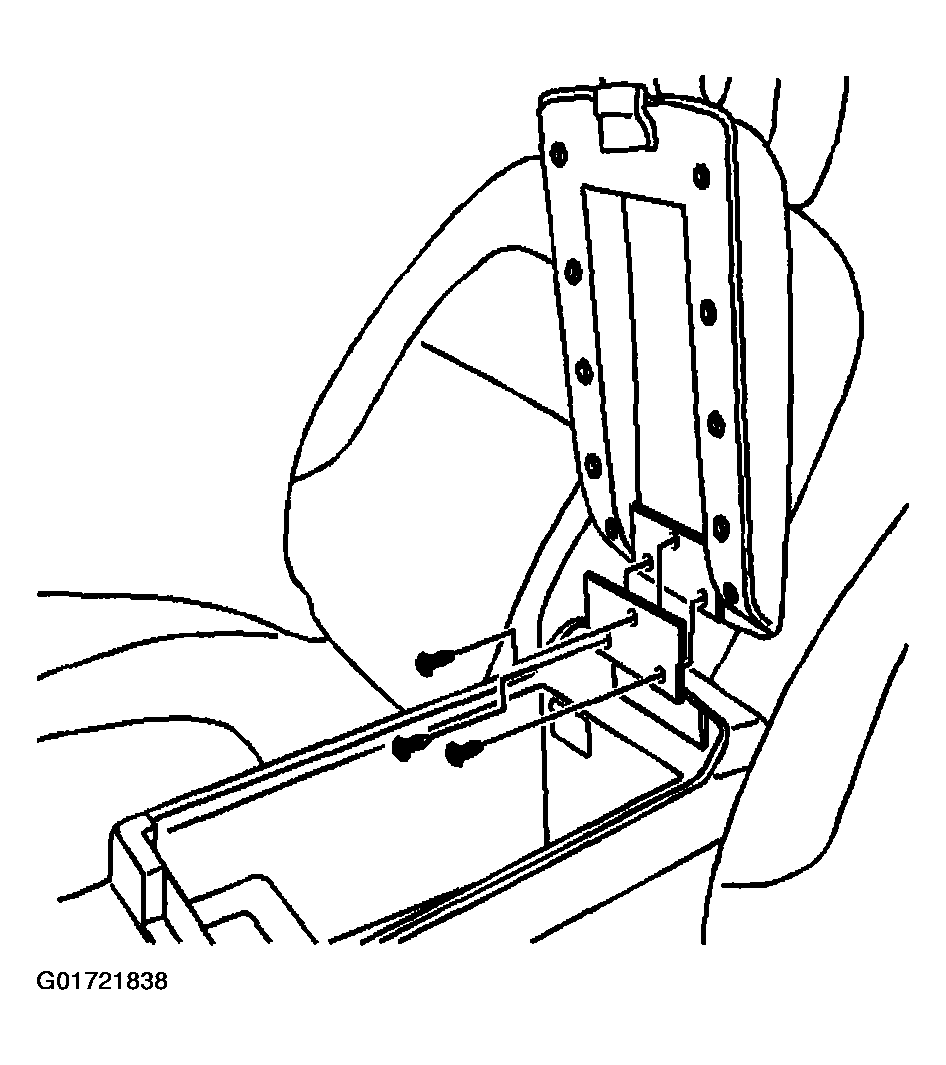

    Fig 1: Installing Armrest And Screws
    G01721838Courtesy of GENERAL MOTORS CORP.
