Installation Procedure

  1. Align the trim plate to the front floor console.
  2. Position the trim plate over the transaxle shift lever.
  3. Install the trim plate to the front floor console and snap into place.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the rear trim plate screw and insert the cup holder liner.

    Tighten

    Tighten the screw to 2 N.m (18 lb in).

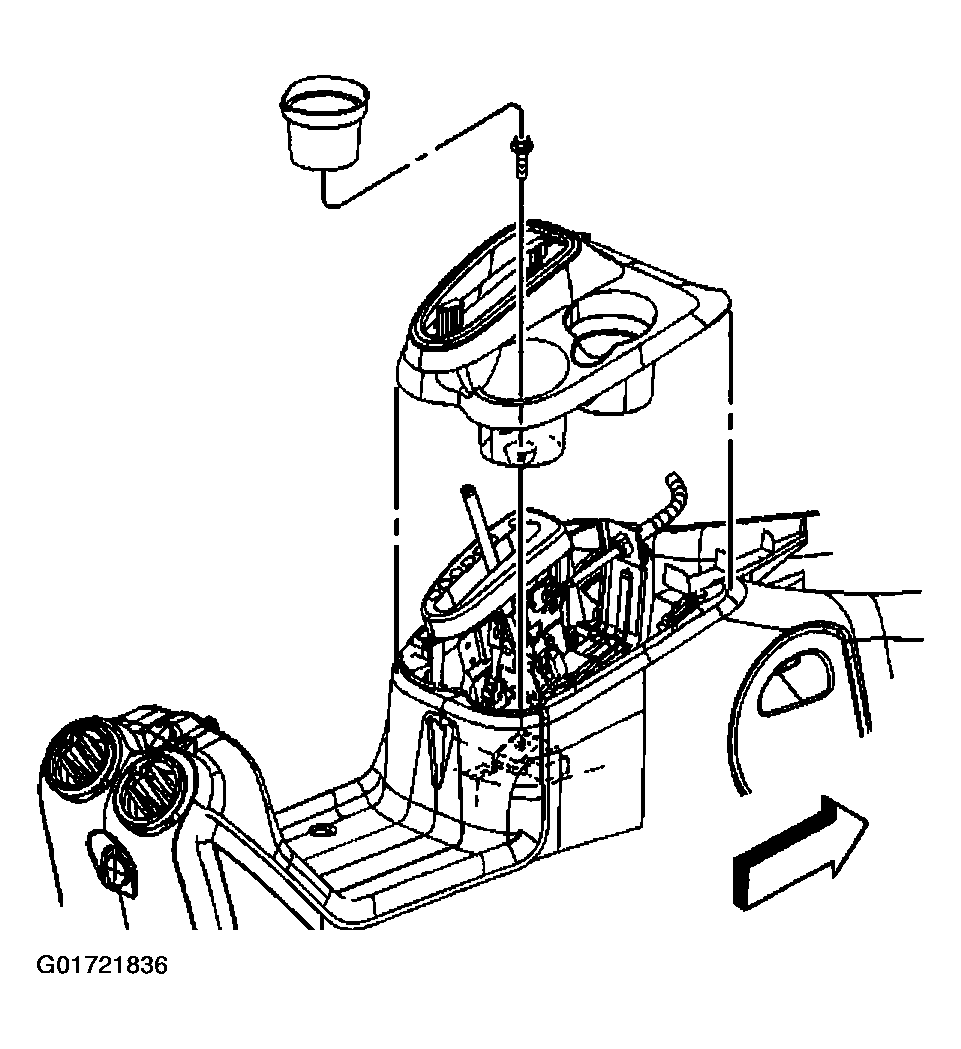

    Fig 1: Installing Front Floor Console Trim Plate
    G01721836Courtesy of GENERAL MOTORS CORP.
