Installation Procedure

  1. Install the trim plate bezel. Press the bezel into place until seated.
    NOTE: Refer to FASTENER NOTICE .
  2. Tighten the steering column bracket nuts.

    Tighten

    Tighten the nuts to 24 N.m (18 lb ft).

  3. Install the DIC switch to the trim plate bezel. Refer to Driver Information Center Switch Replacement (Aztek)  or Driver Information Center Switch Replacement (Rendezvous) .
  4. Install the knee bolster panel. Refer to Knee Bolster Replacement .

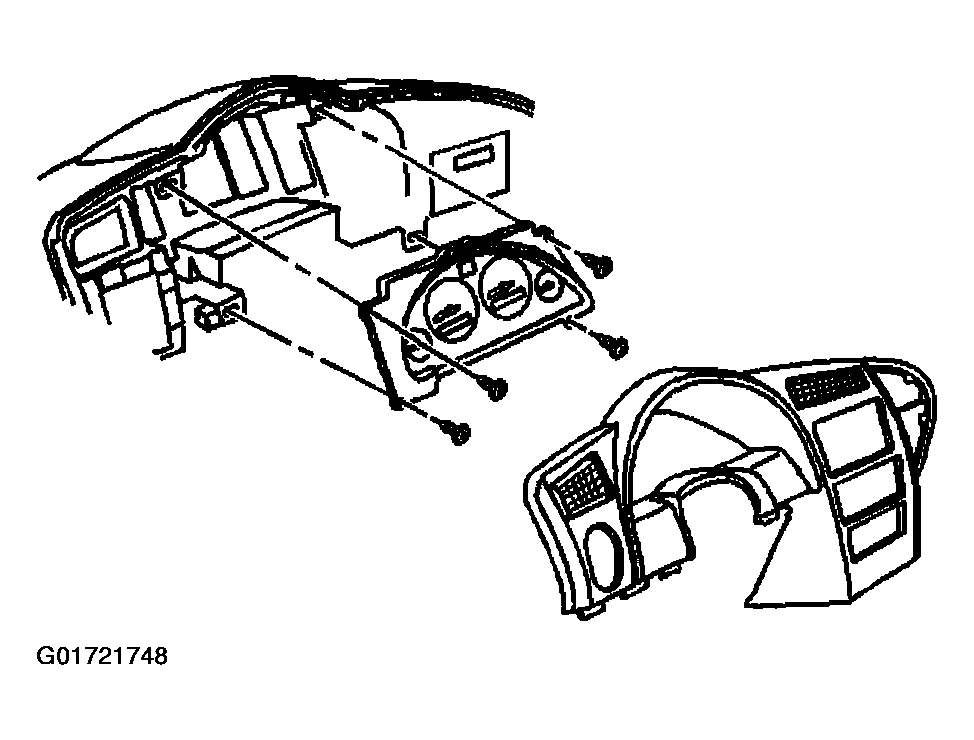

    Fig 1: Installing Instrument Panel (I/P) Cluster Trim Plate Bezel (Rendezvous)
    G01721748Courtesy of GENERAL MOTORS CORP.
