Removal Procedure

  1. Remove the knee bolster panel. Refer to Knee Bolster Replacement .
  2. Remove the screws from the I/P cluster trim plate at the assist handle.
  3. Pull out the I/P cluster trim plate in order to release from the retainers.

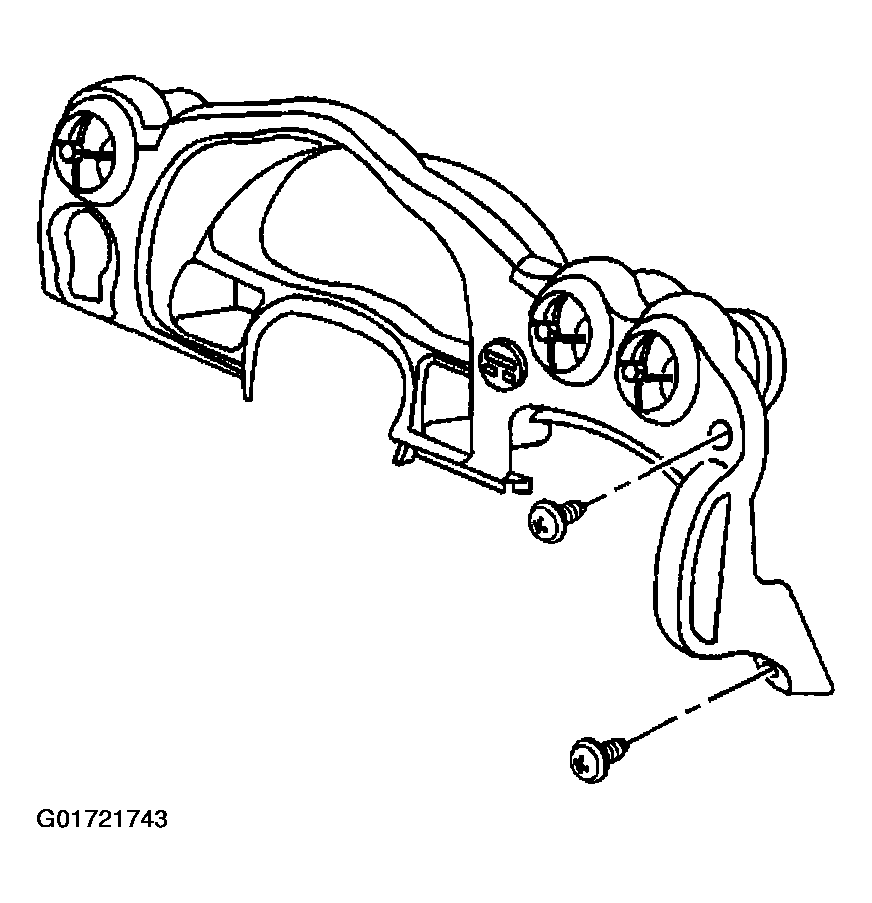

    Fig 1: Removing Instrument Panel (I/P) Cluster Trim Plate Bezel And Retainers (Aztek)
    G01721743Courtesy of GENERAL MOTORS CORP.
  4. From the back side disconnect the driver information center (DIC) from the I/P cluster trim plate panel.
  5. Loosen the steering column bracket and lower the steering column.
  6. Remove the I/P cluster trim plate.

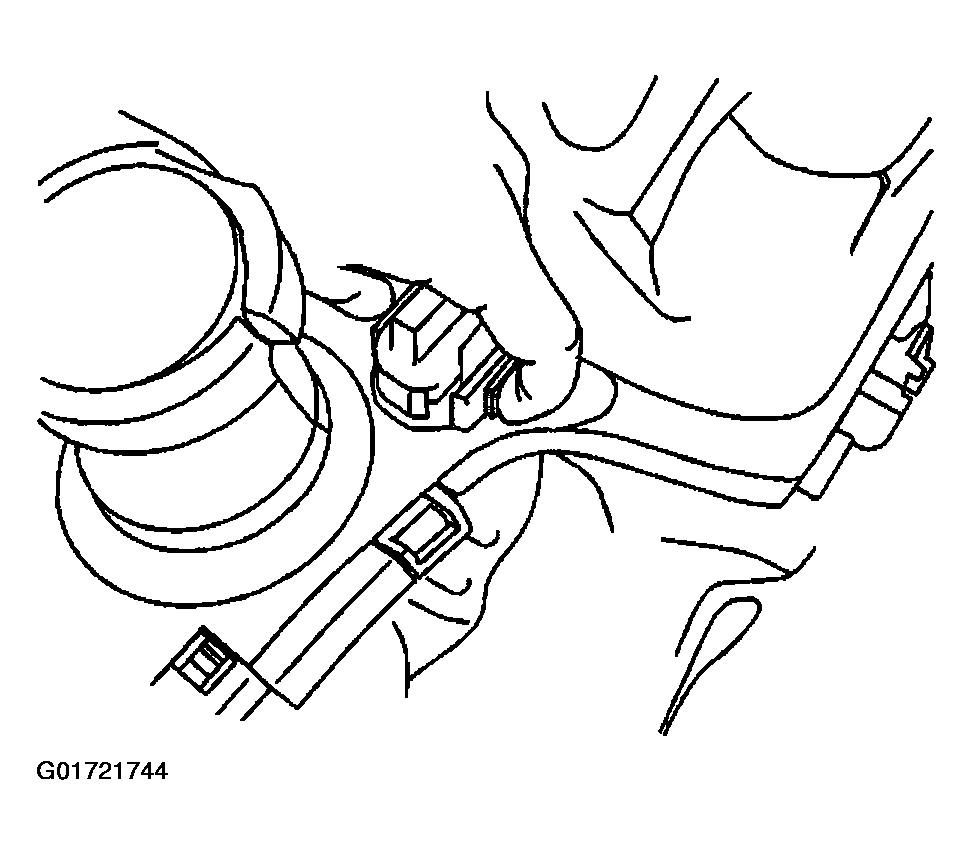

    Fig 2: Disconnecting Driver Information Center From Instrument Panel (I/P) Cluster Trim Plate Panel
    G01721744Courtesy of GENERAL MOTORS CORP.
