Installation Procedure

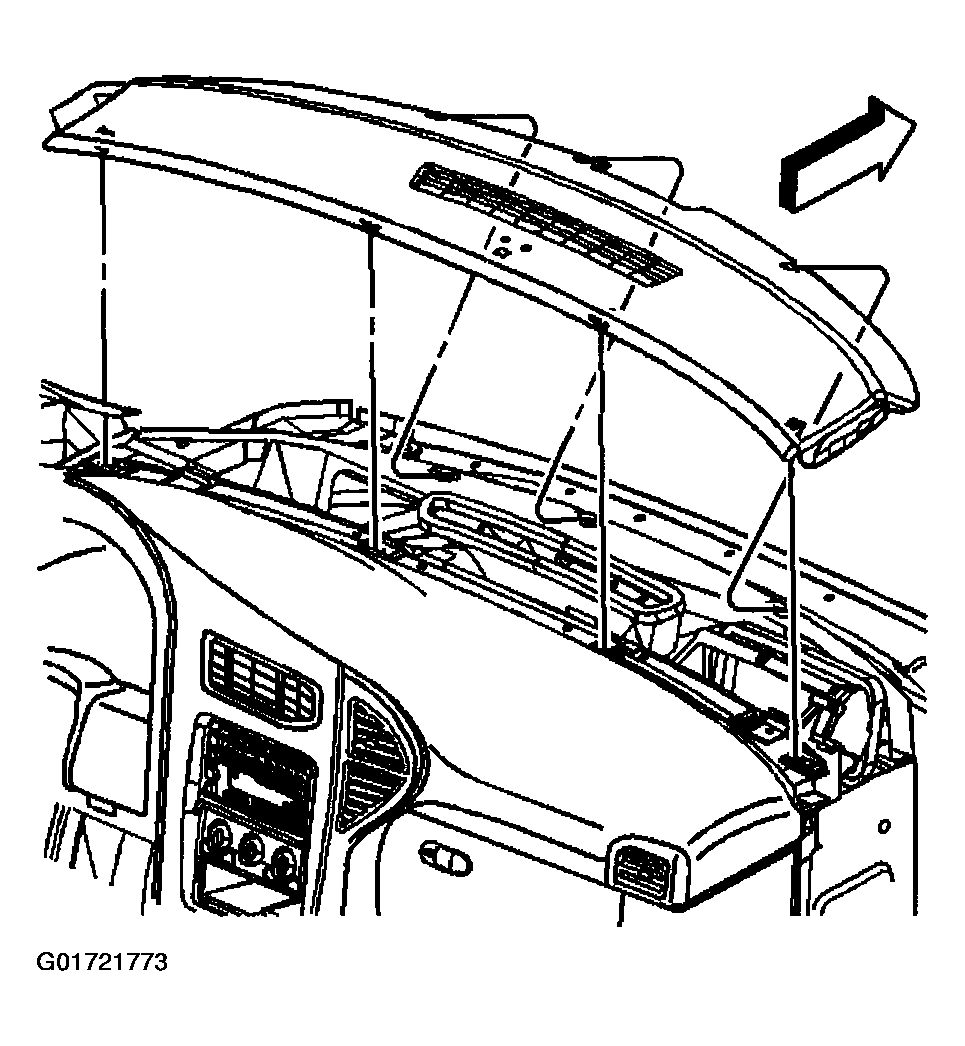

Align the locating pins and the retainers from the upper trim panel to the slots in the I/P.
Install the DRL ambient light sensor. Refer to DAYTIME RUNNING LAMPS (DRL) AMBIENT LIGHT SENSOR REPLACEMENT .
If removed, install the sun load sensor.

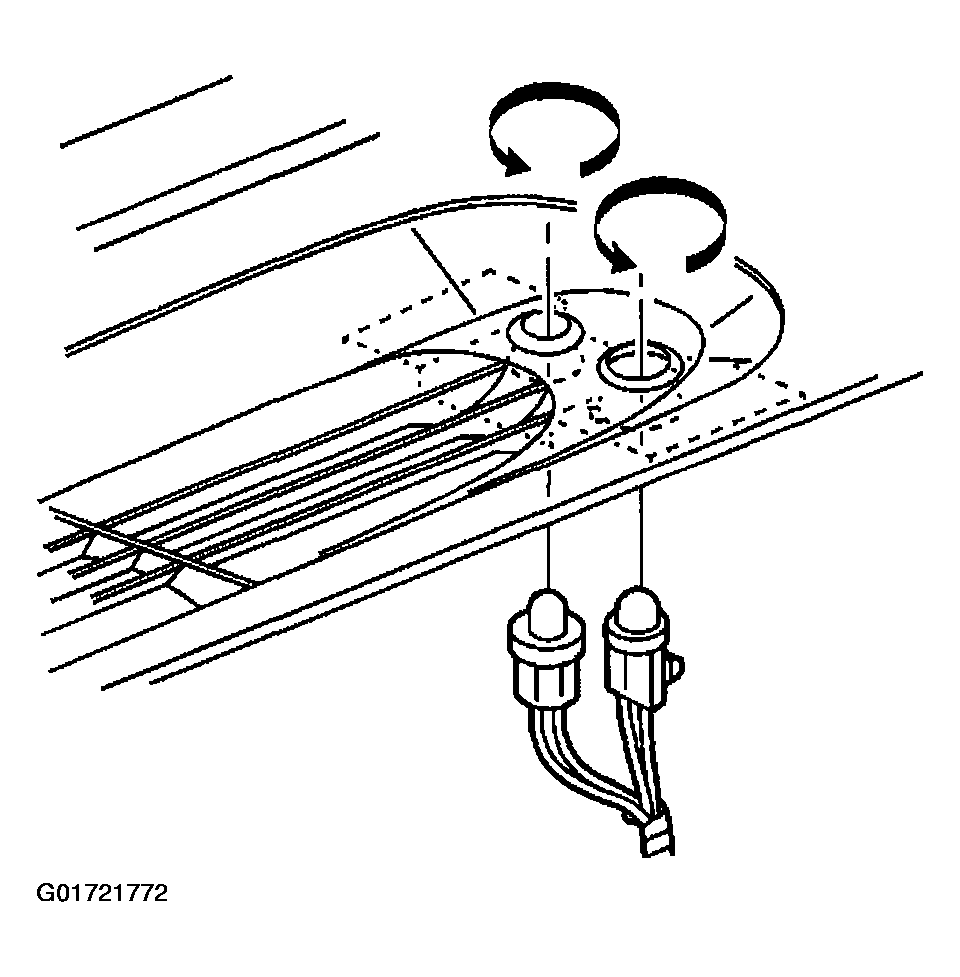

Fig 1: Installing DRL Ambient Light Sensor
Courtesy of GENERAL MOTORS CORP.
Push forward and down on the I/P upper trim panel to lock into place.
Install the windshield garnish molding. Refer to GARNISH MOLDING REPLACEMENT - WINDSHIELD PILL .

Fig 2: Installing Windshield Garnish Molding (Rendezvous)
Courtesy of GENERAL MOTORS CORP.
