Installation Procedure

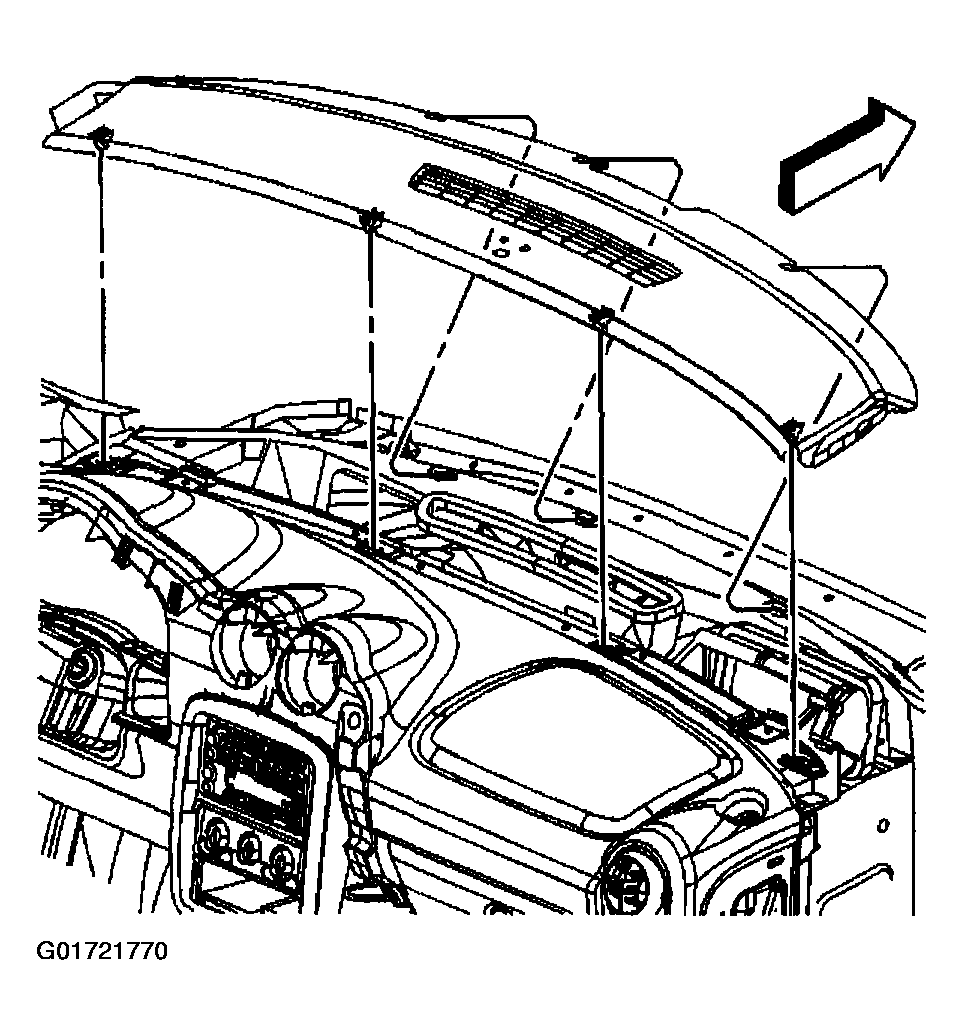

Align the locating pins and the retainers from the upper trim panel to the slots in the I/P.
Install the DRL ambient light sensor. Refer to DAYTIME RUNNING LAMPS (DRL) AMBIENT LIGHT SENSOR REPLACEMENT .
If equipped, install the sun load sensor.

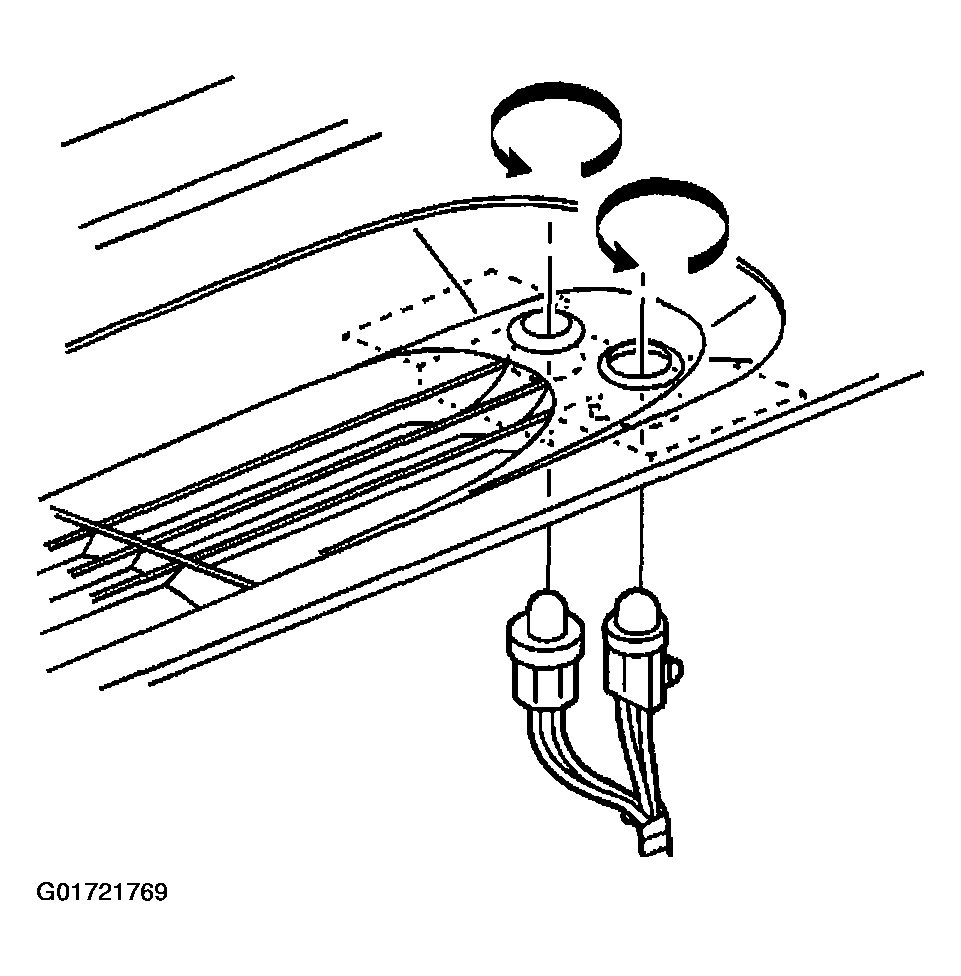

Fig 1: Installing DRL Ambient Light Sensor
Courtesy of GENERAL MOTORS CORP.
Push forward and down on the upper trim panel to lock into place.
Install the windshield garnish molding. Refer to GARNISH MOLDING REPLACEMENT - WINDSHIELD PILL .

Fig 2: Installing Windshield Garnish Molding
Courtesy of GENERAL MOTORS CORP.
