Removal Procedure

  1. Remove the power accessory port fuse.
  2. Remove the power accessory port socket by placing one side of J 42059  into the tab window and angle the other side into the opposite tab window. Pull the power accessory port socket straight out.
  3. Remove J 42059  from the power accessory port socket.

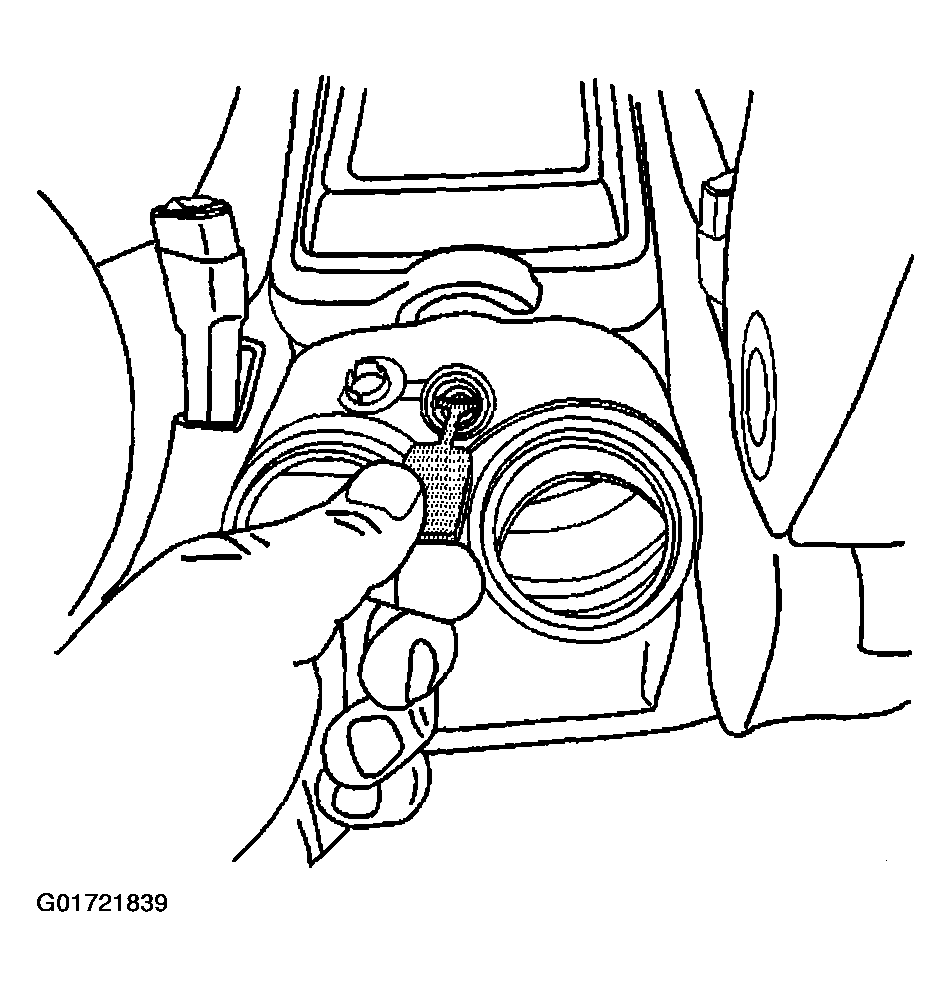

    Fig 1: Removing Power Accessory Port Socket
    G01721839Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connector from the front floor console power accessory port.

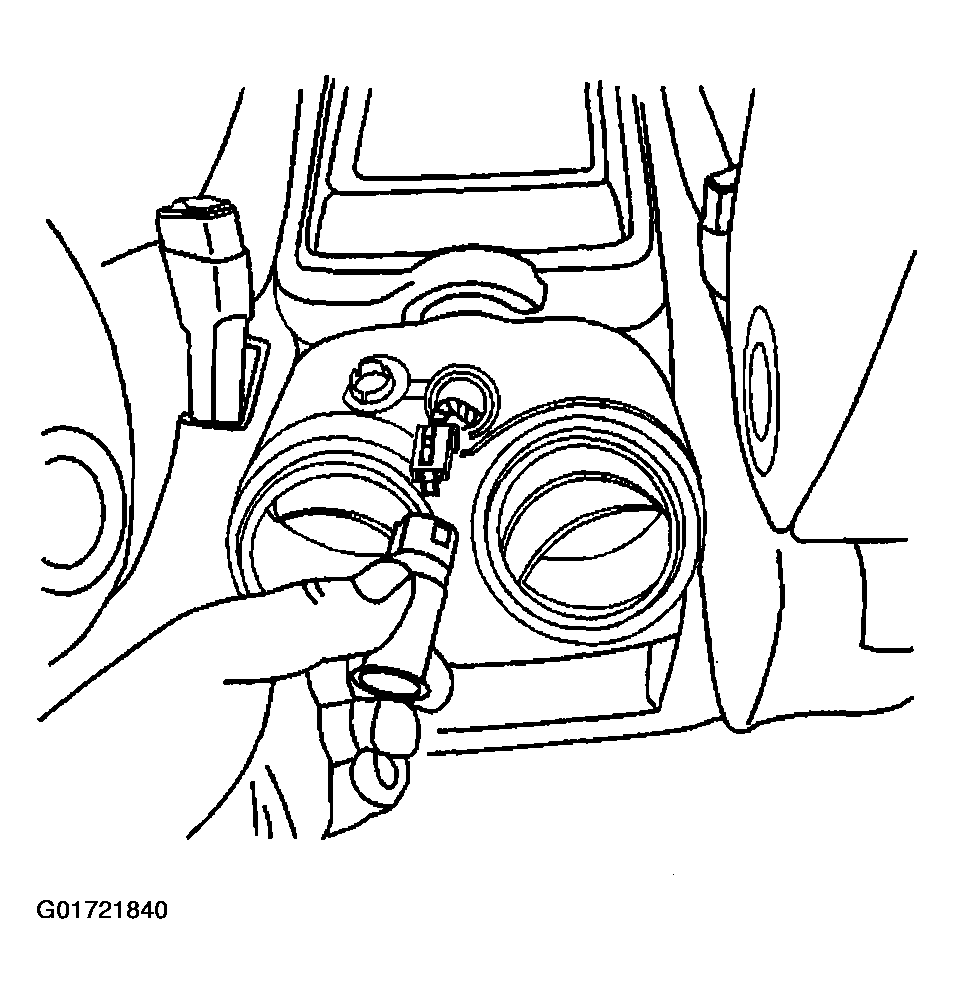

    Fig 2: Disconnecting Front Floor Console Power Accessory Port Electrical Connector
    G01721840Courtesy of GENERAL MOTORS CORP.
  5. Remove the power accessory port retainer using your index finger and pulling out.

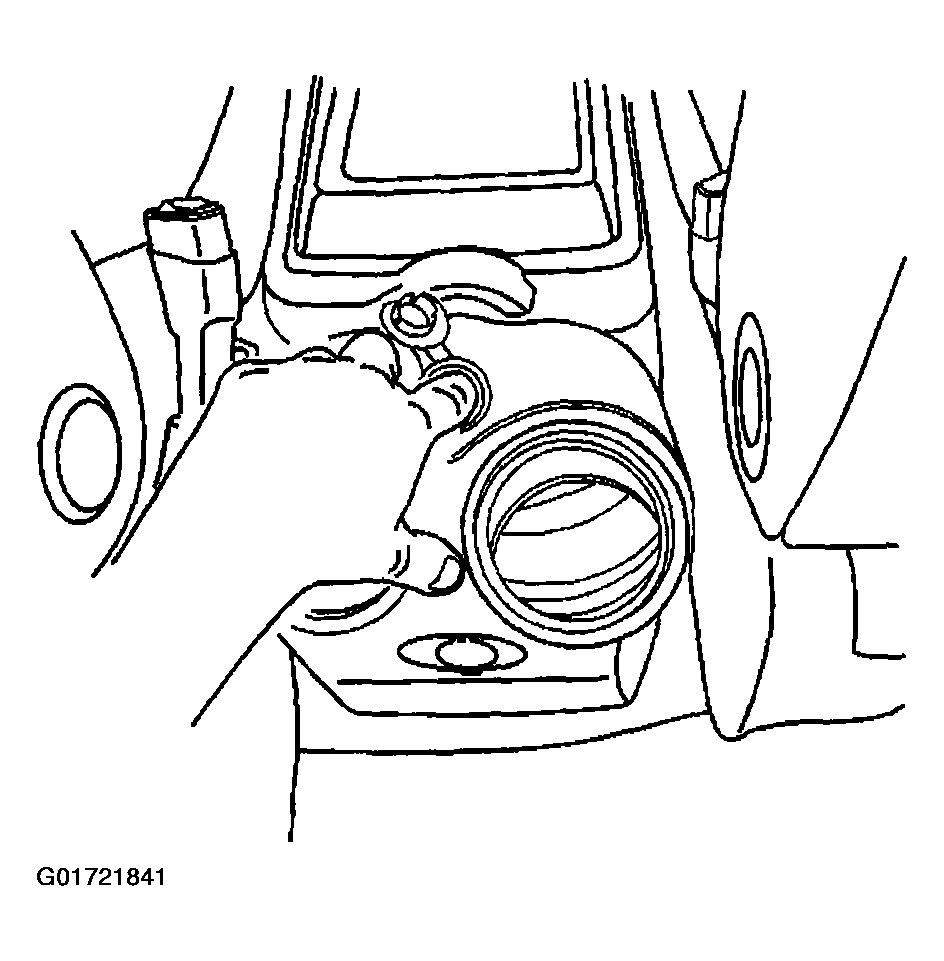

    Fig 3: Removing Power Accessory Port Retainer
    G01721841Courtesy of GENERAL MOTORS CORP.
