Removal Procedure

  1. Open the instrument panel (IP) compartment door.
  2. Remove the IP compartment latch screws.
  3. Remove the IP compartment latch from the IP compartment.
  4. Insert the key into the IP compartment door lock cylinder.
  5. Insert a small diameter tool into the slot on the upper side of the door handle cylinder housing. Depress and hold the lock cylinder retainer.
  6. While the lock cylinder retainer is still depressed, turn the key 1/4 turn counterclockwise.
  7. Pull to remove the lock cylinder.

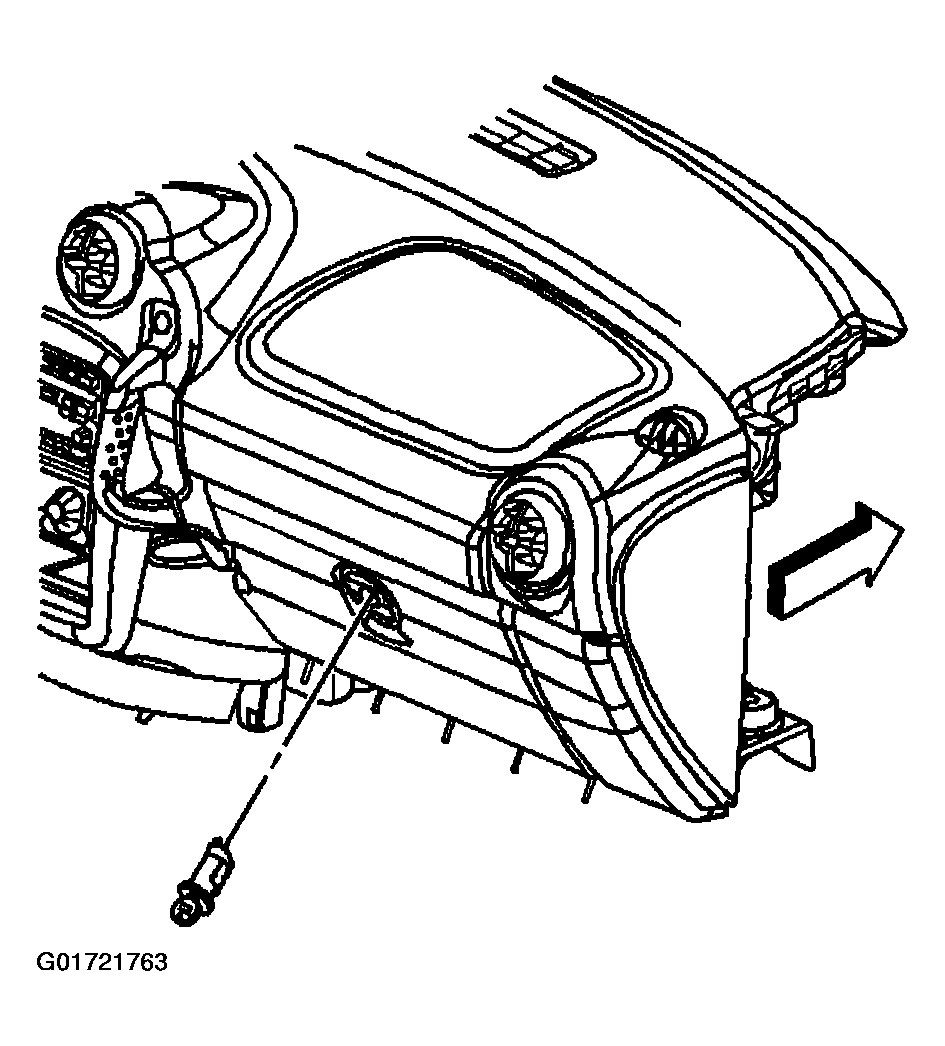

    Fig 1: Removing Instrument Panel (I/P) Compartment Lock Cylinder
    G01721763Courtesy of GENERAL MOTORS CORP.
