Removal Procedure

  1. Remove the IP insulator. Refer to Closeout/Insulator Panel Replacement - Right  and Closeout/Insulator Panel Replacement - Left .
  2. Remove the bolts from the bottom of the knee bolster.
  3. Pull on the knee bolster in order to release the upper clips.

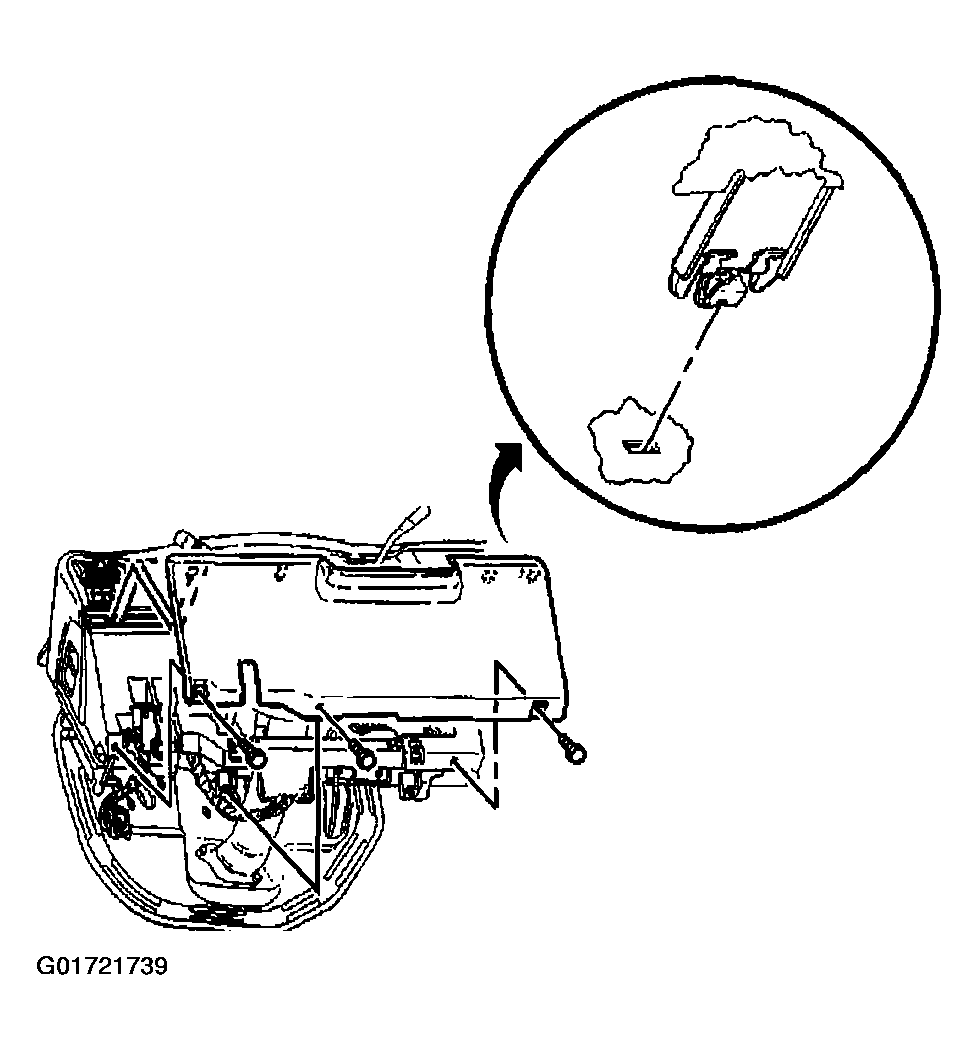

    Fig 1: Removing Knee Bolster And Bolts
    G01721739Courtesy of GENERAL MOTORS CORP.
