Removal Procedure

Important:  Turn the ignition switch to the OFF position before you remove the instrument panel cluster.

1. Remove the instrument panel (I/P) cluster trim plate bezel. Refer to Trim Plate Bezel Replacement - Instrument Panel (I/P) Cluster (Aztek)  or Trim Plate Bezel Replacement - Instrument Panel (I/P) Cluster (Rendezvous) .
2. Remove the screws from the I/P cluster.
3. Disconnect the electrical connectors from the I/P cluster.
4. Remove the I/P cluster.

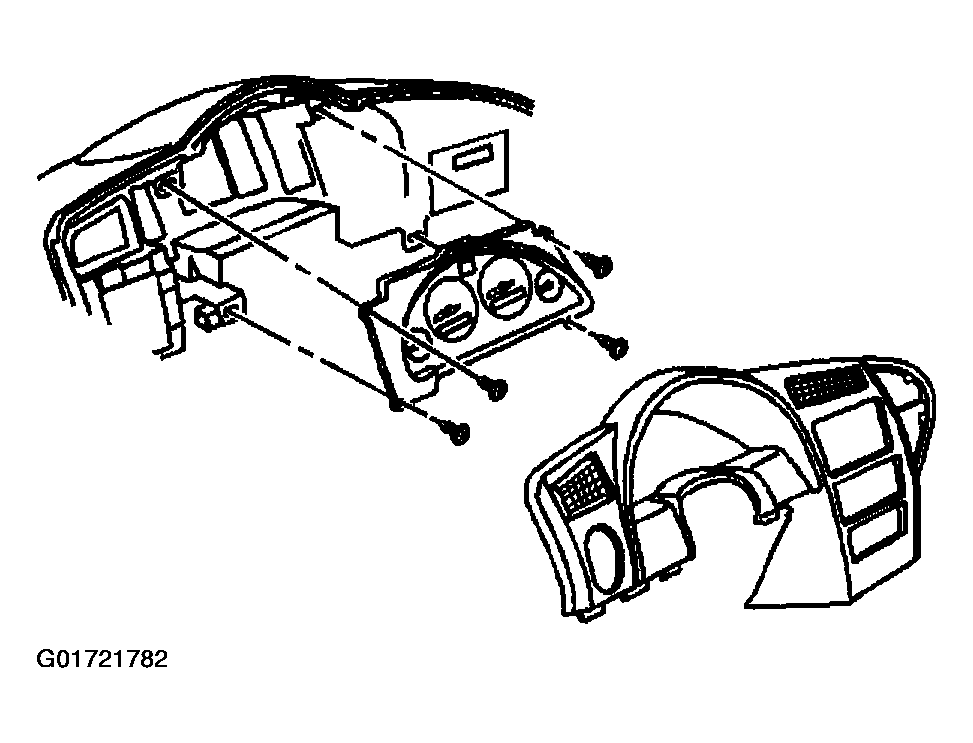

   Fig 1: Removing Instrument Panel (I/P) Bezel, Electrical Connectors, Cluster And Screws

   Courtesy of GENERAL MOTORS CORP.
