Installation Procedure

  1. Connect the electrical connectors to the I/P cluster.
  2. Install the I/P cluster.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the screws to the I/P cluster.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  4. Install the I/P cluster trim plate bezel. Refer to Trim Plate Bezel Replacement - Instrument Panel (I/P) Cluster (Aztek)  or Trim Plate Bezel Replacement - Instrument Panel (I/P) Cluster (Rendezvous) .
  5. Calibrate the electronic compass. Refer to Electronic Compass Calibration .

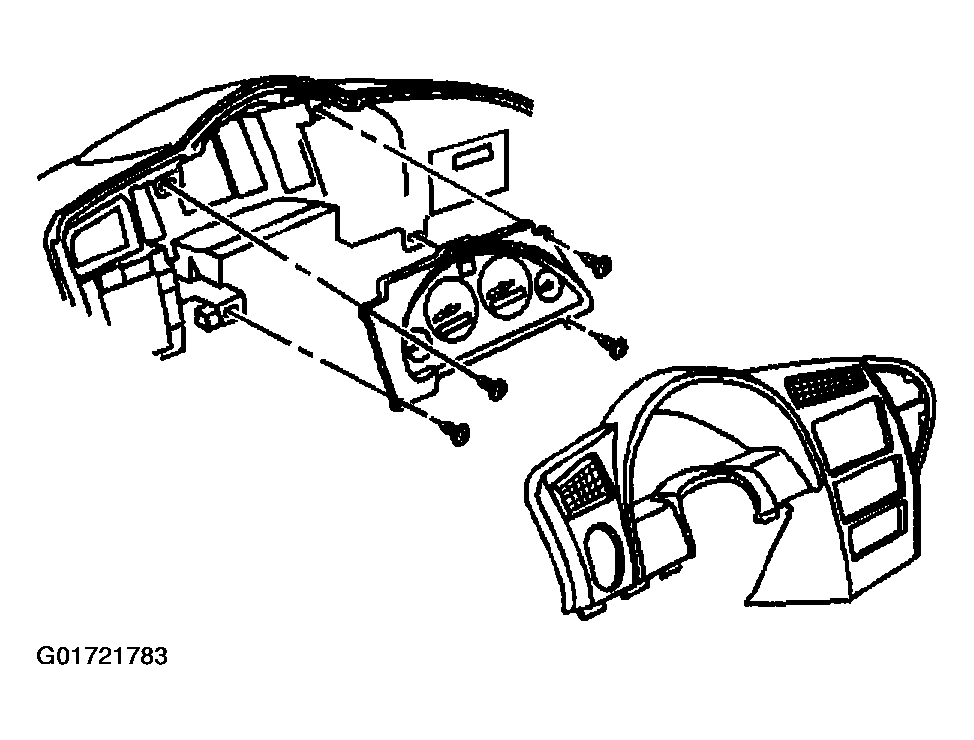

    Fig 1: Installing Instrument Panel (I/P) Bezel, Electrical Connectors, Cluster And Screws
    G01721783Courtesy of GENERAL MOTORS CORP.
