Removal Procedure

  1. Remove the instrument panel (IP) trim cover by pulling outward to disengage the retainers.

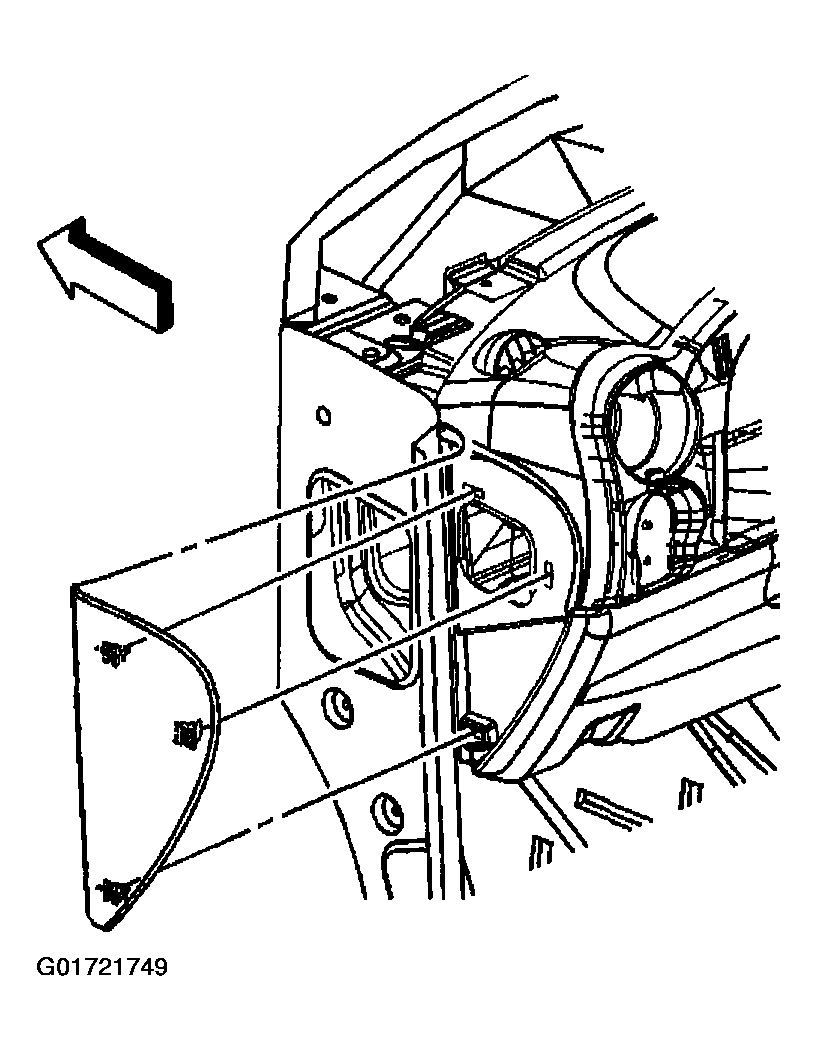

    Fig 1: Disengaging Instrument Panel (IP) Trim Cover Retainers
    G01721749Courtesy of GENERAL MOTORS CORP.
  2. Remove the IP trim cover.

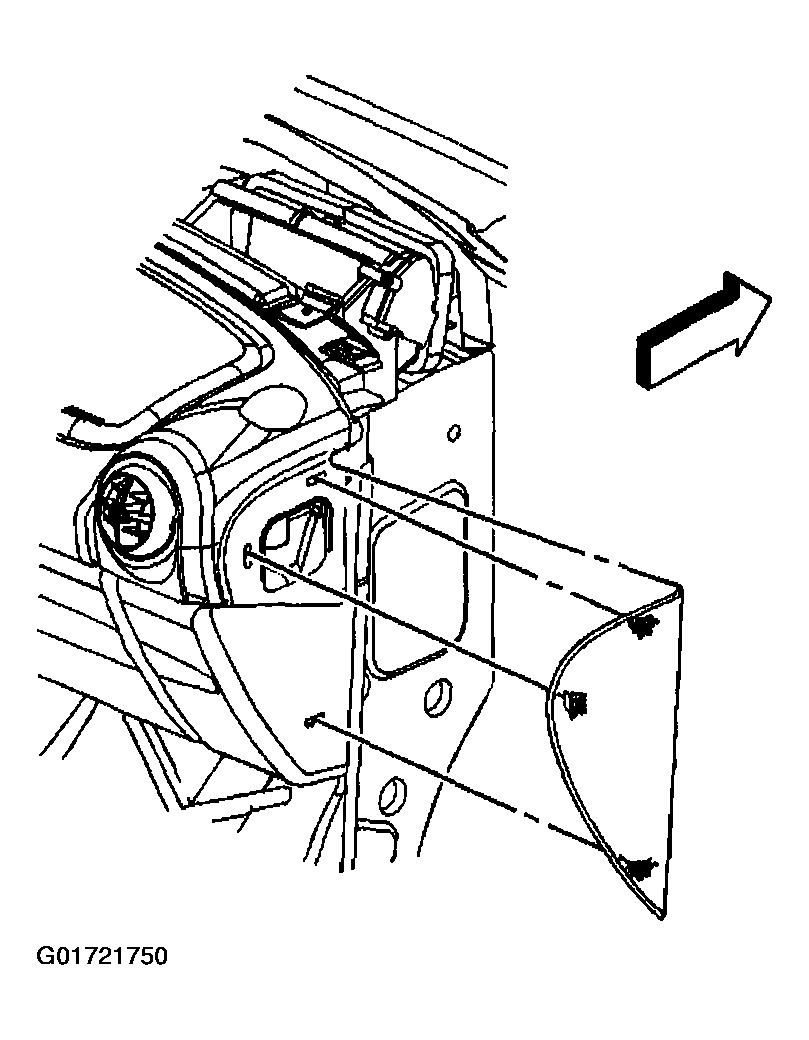

    Fig 2: Removing Instrument Panel Trim Cover
    G01721750Courtesy of GENERAL MOTORS CORP.
