Installation Procedure

  1. Align the tabs on the IP trim cover to slots in the IP retainers.

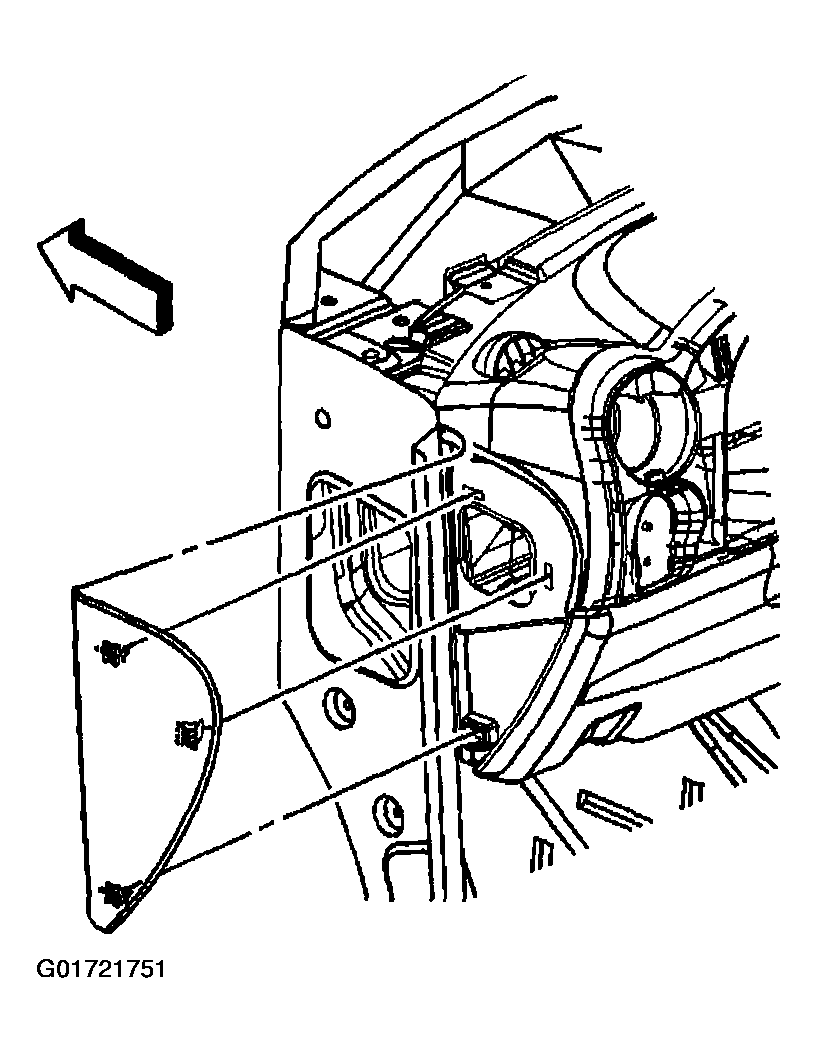

    Fig 1: Aligning IP Trim Cover To IP Retainer Slots
    G01721751Courtesy of GENERAL MOTORS CORP.
  2. Install the IP trim cover by pressing into the retainers until fully seated.

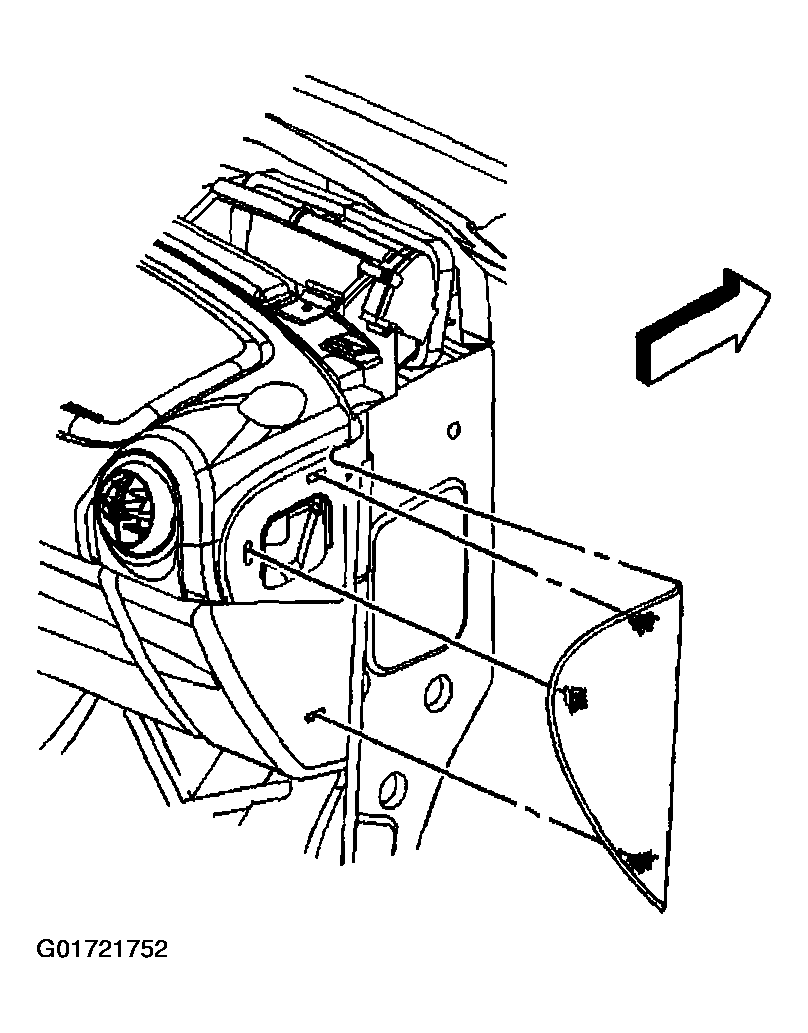

    Fig 2: Installing Instrument Panel (IP) Trim Cover Retainers
    G01721752Courtesy of GENERAL MOTORS CORP.
