Removal Procedure

  1. Open the instrument panel compartment door.
  2. Using a small flat-bladed tool depress retainers on instrument panel compartment lamp switch.

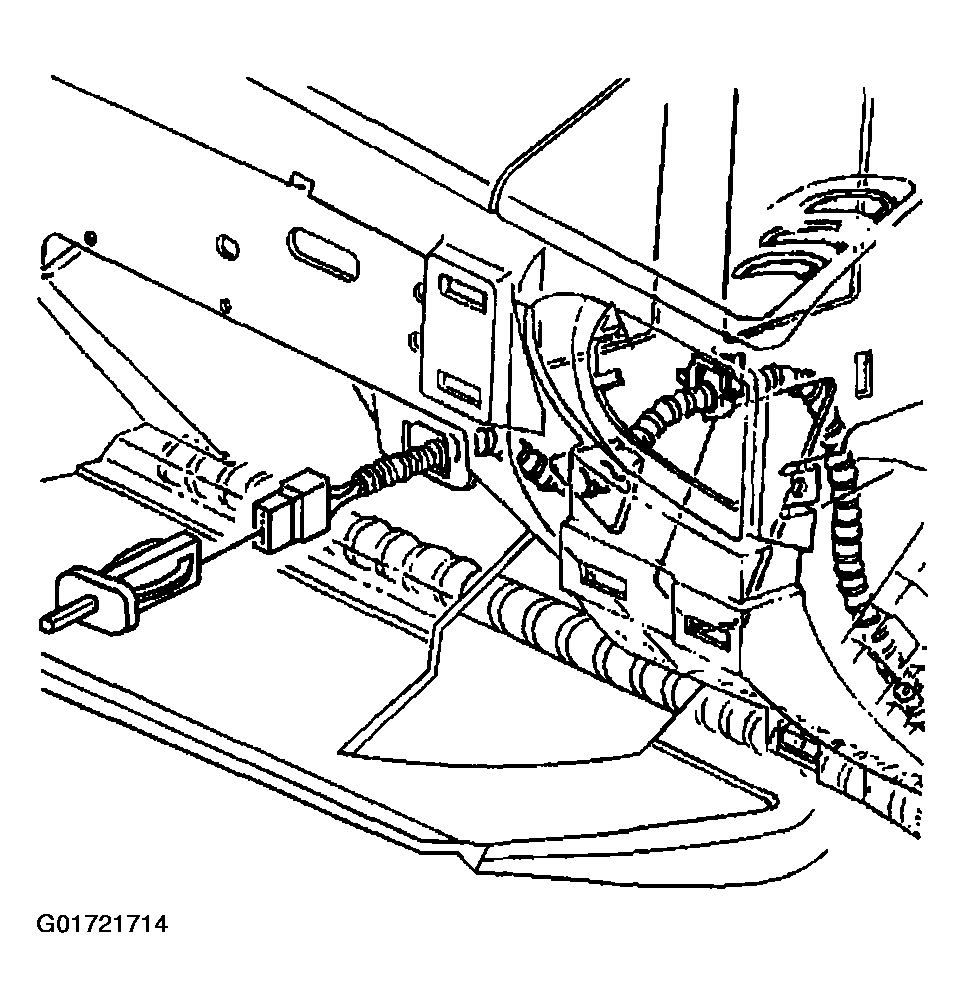

    Fig 1: Removing Instrument Panel Compartment Lamp Switch
    G01721714Courtesy of GENERAL MOTORS CORP.
  3. Remove the instrument panel compartment lamp switch from the instrument panel compartment.
  4. Disconnect the electrical connector from the instrument panel compartment lamp switch.
  5. Pull the bulb from the instrument panel compartment lamp switch socket.
    Fig 2: Removing Instrument Panel Compartment Lamp Switch Bulb From Socket
    G01721715Courtesy of GENERAL MOTORS CORP.
