Removal Procedure

  1. Remove the instrument panel (I/P) cluster trim plate bezel. Refer to Trim Plate Bezel Replacement - Instrument Panel (I/P) Cluster (Aztek)  or Trim Plate Bezel Replacement - Instrument Panel (I/P) Cluster (Rendezvous) .
  2. Remove the nuts from the assist handle and remove the assist handle.

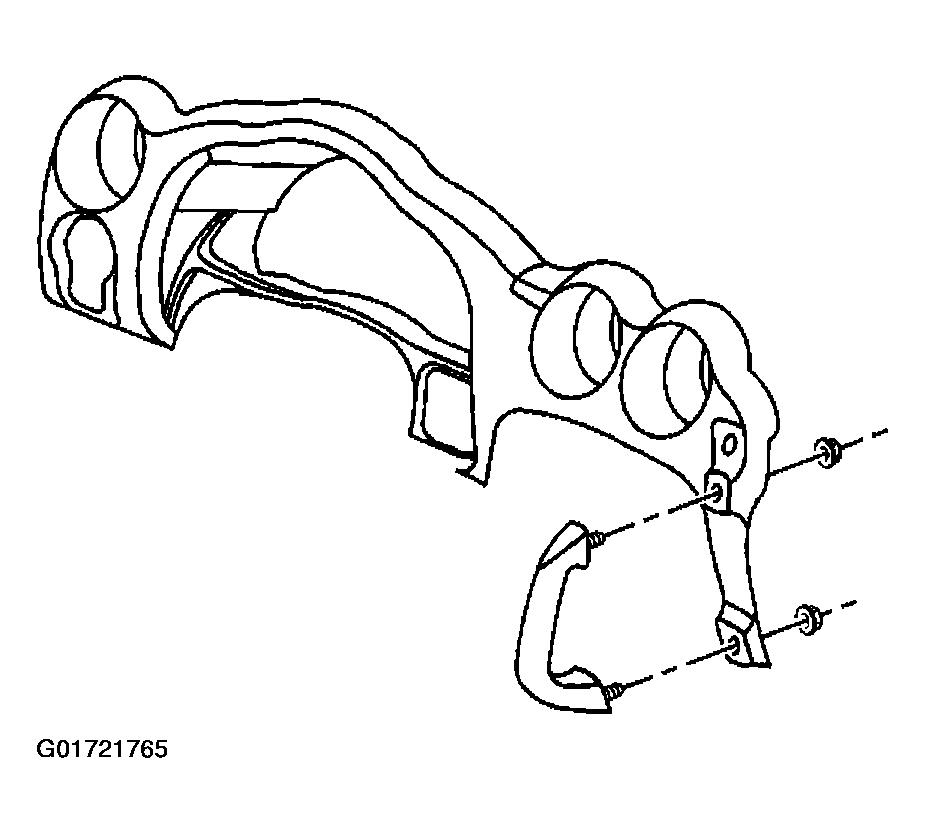

    Fig 1: Removing Instrument Panel (I/P) Assist Handle And Nuts
    G01721765Courtesy of GENERAL MOTORS CORP.
