Installation Procedure

NOTE: Refer to FASTENER NOTICE .
  1. Install the assist handle to the instrument panel. Install the assist handle nuts.

    Tighten

    Tighten the nuts to 8 N.m (71 lb in).

  2. Install the I/P cluster trim plate bezel. Refer to Trim Plate Bezel Replacement - Instrument Panel (I/P) Cluster (Aztek)  or Trim Plate Bezel Replacement - Instrument Panel (I/P) Cluster (Rendezvous) .

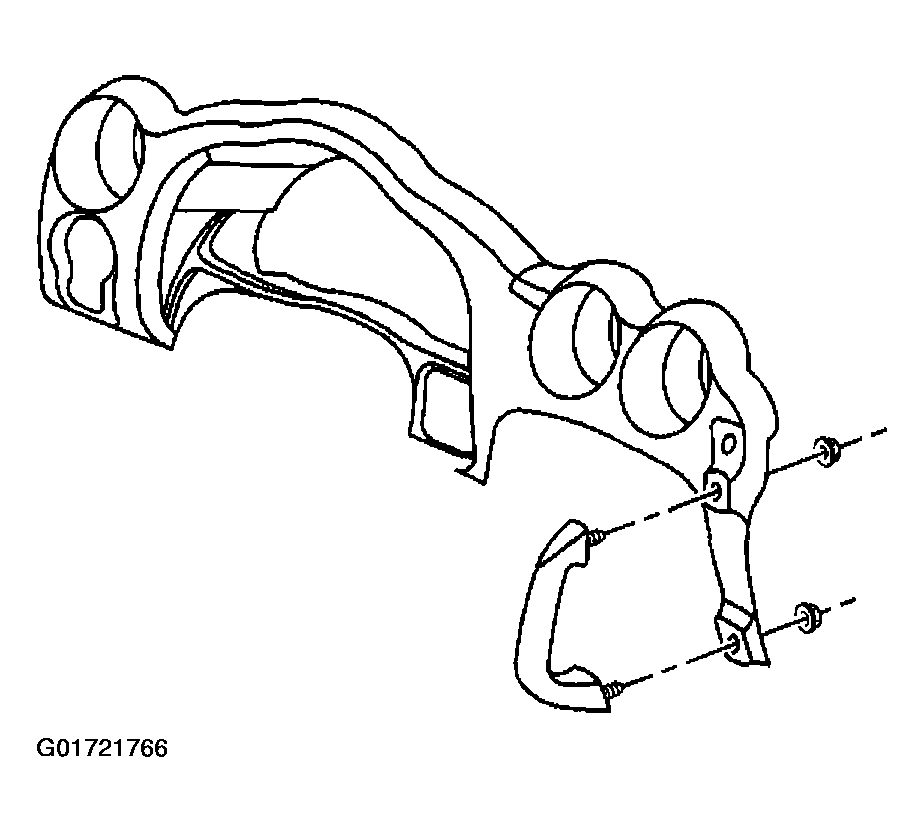

    Fig 1: Installing Instrument Panel (I/P) Assist Handle And Nuts
    G01721766Courtesy of GENERAL MOTORS CORP.
