Removal Procedure

  1. Use a small, Flat Based Tool to remove the driver information center, head up display switch from the cluster trim plate.

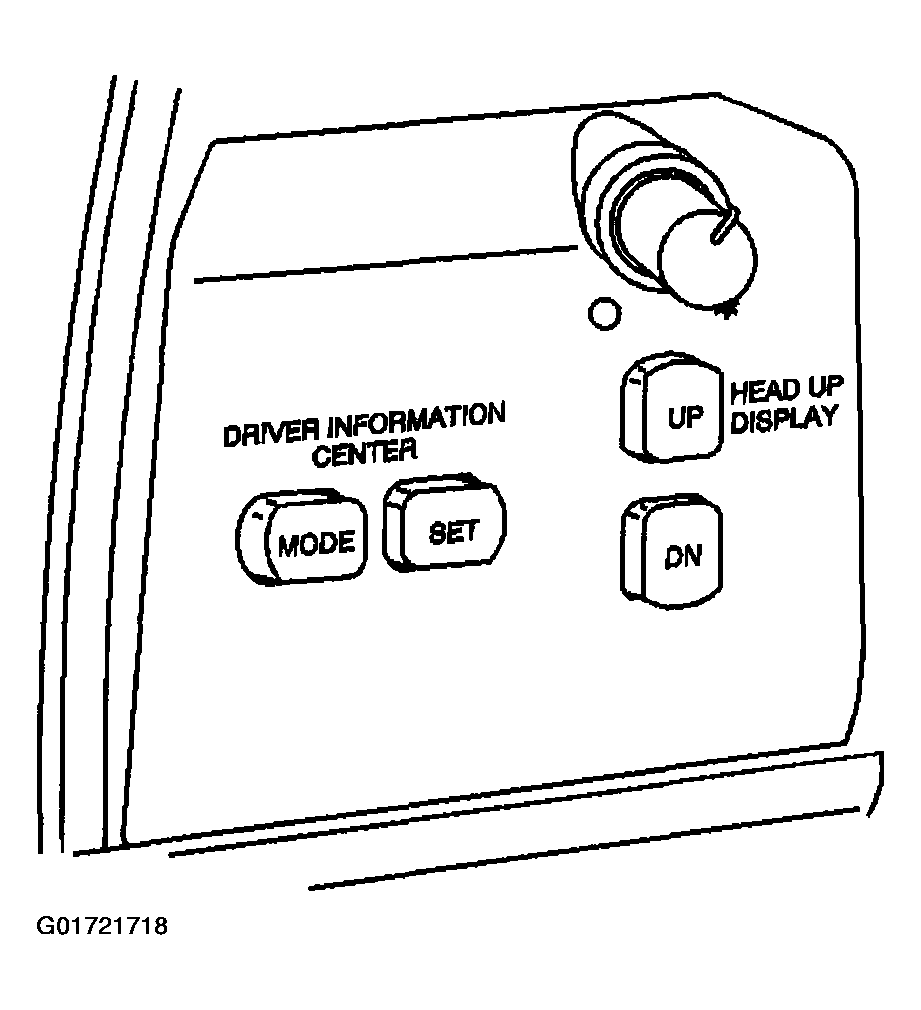

    Fig 1: Removing Driver Information Center, Head Up Display Switch From Cluster Trim Plate
    G01721718Courtesy of GENERAL MOTORS CORP.
  2. Remove the from the switch.
  3. Remove the switch.

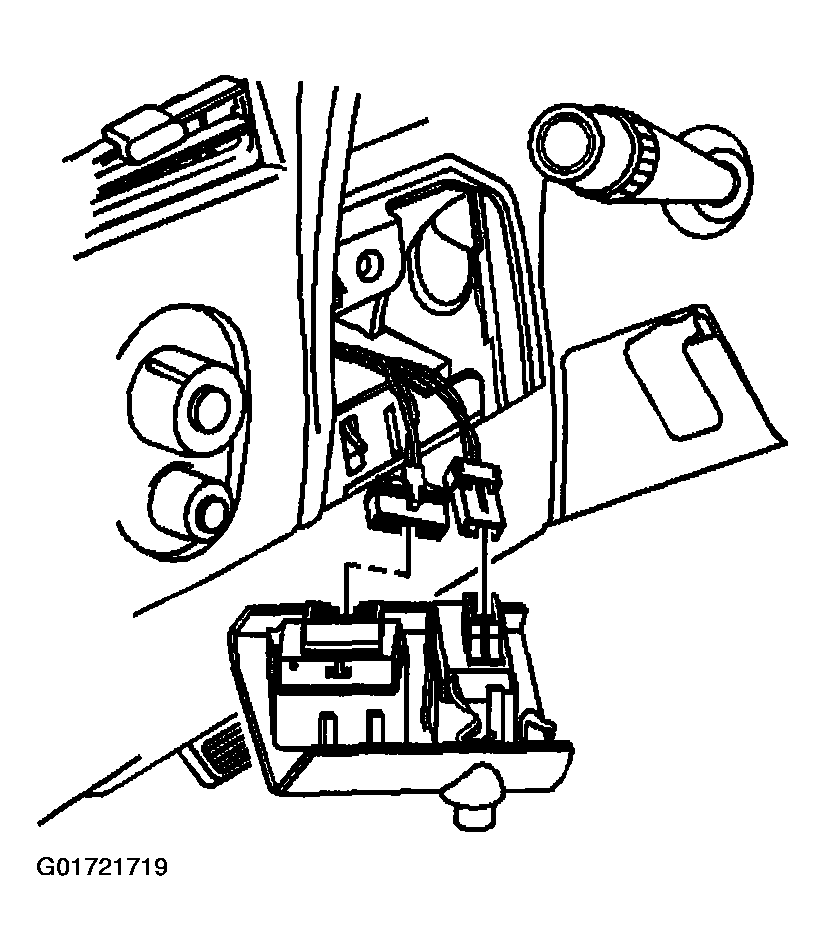

    Fig 2: Removing Head Up Display Switch Electrical Connectors
    G01721719Courtesy of GENERAL MOTORS CORP.
