Installation Procedure

  1. Install the electrical connectors to the head up display switch.

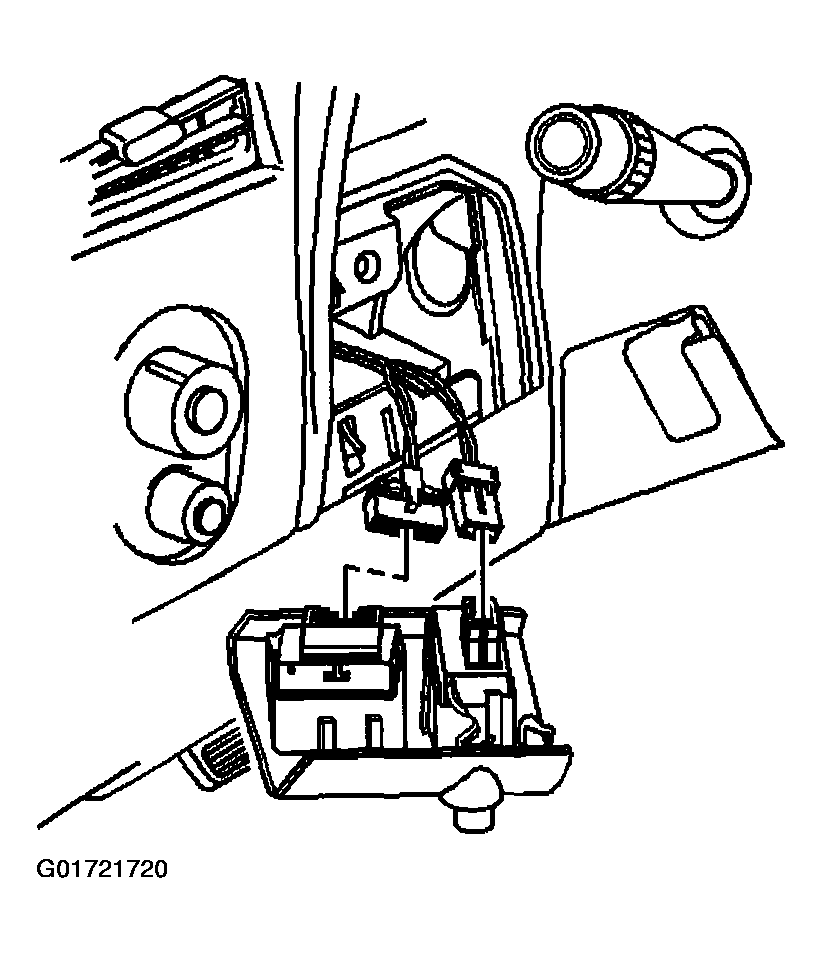

    Fig 1: Installing Head Up Display Switch Electrical Connector
    G01721720Courtesy of GENERAL MOTORS CORP.
  2. Install the head up display switch to the cluster trim plate.

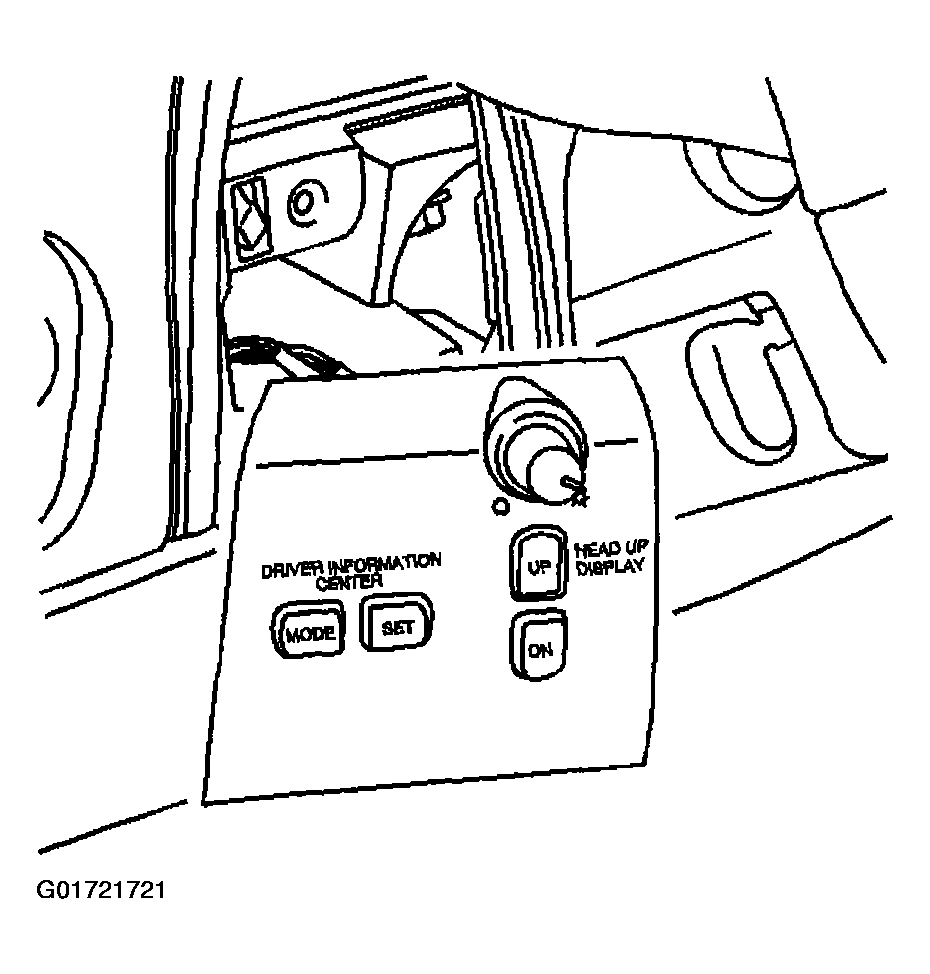

    Fig 2: Installing Head Up Display Switch
    G01721721Courtesy of GENERAL MOTORS CORP.
  3. Push the switch assembly to the cluster trim plate until seated.

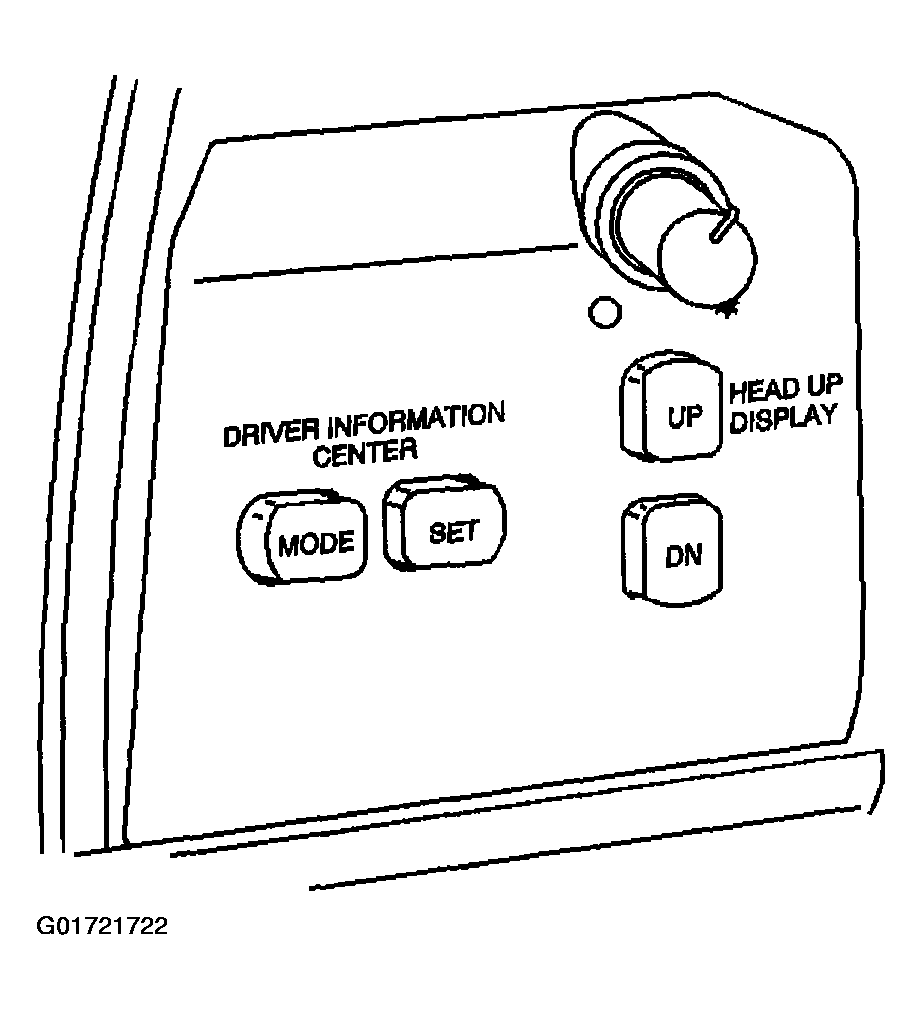

    Fig 3: Pushing Switch Assembly To Cluster Trim Plate
    G01721722Courtesy of GENERAL MOTORS CORP.
