Installation Procedure

Install the door handle into the I/P compartment door.
Install and fully seat the retainer to the door handle.
Connect the door latch rod to the door handle. Lower the door latch into position on the door.

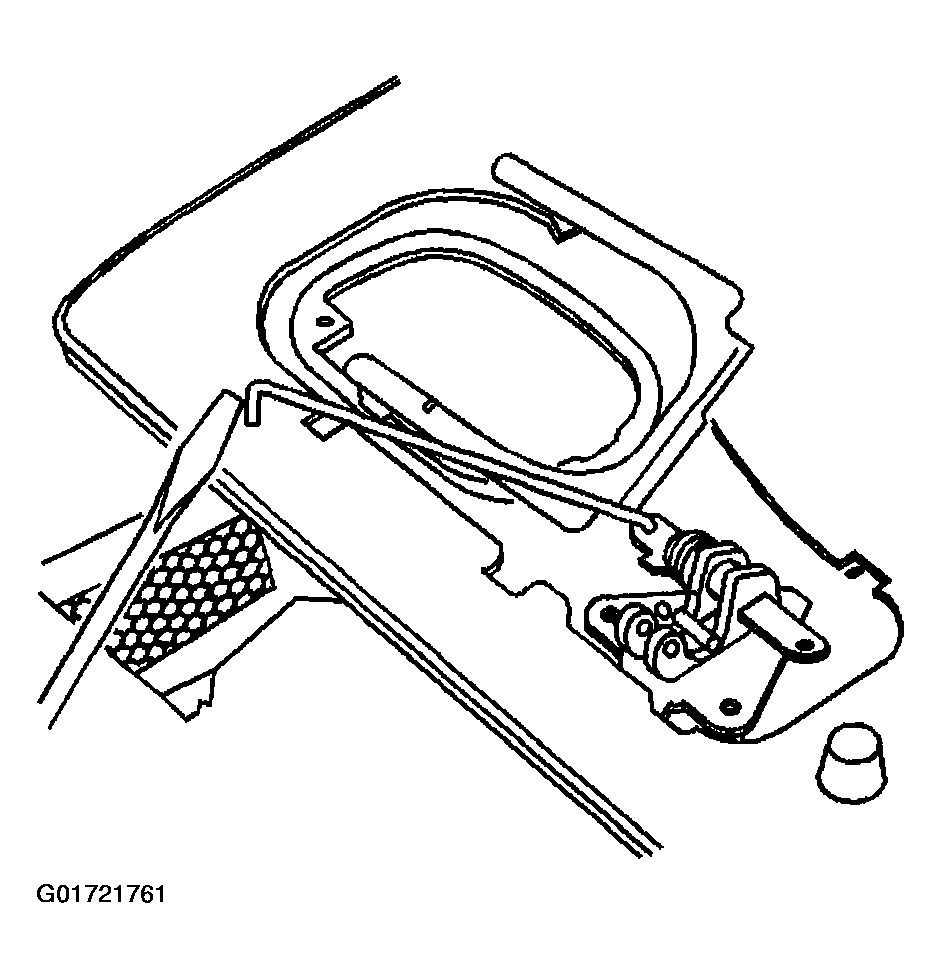

Fig 1: Installing Door Handle And Retainer
Courtesy of GENERAL MOTORS CORP.
Align the door handle and the latch cover to the I/P compartment door. Carefully press the cover into place to secure the retaining tabs.
Close the I/P compartment door.

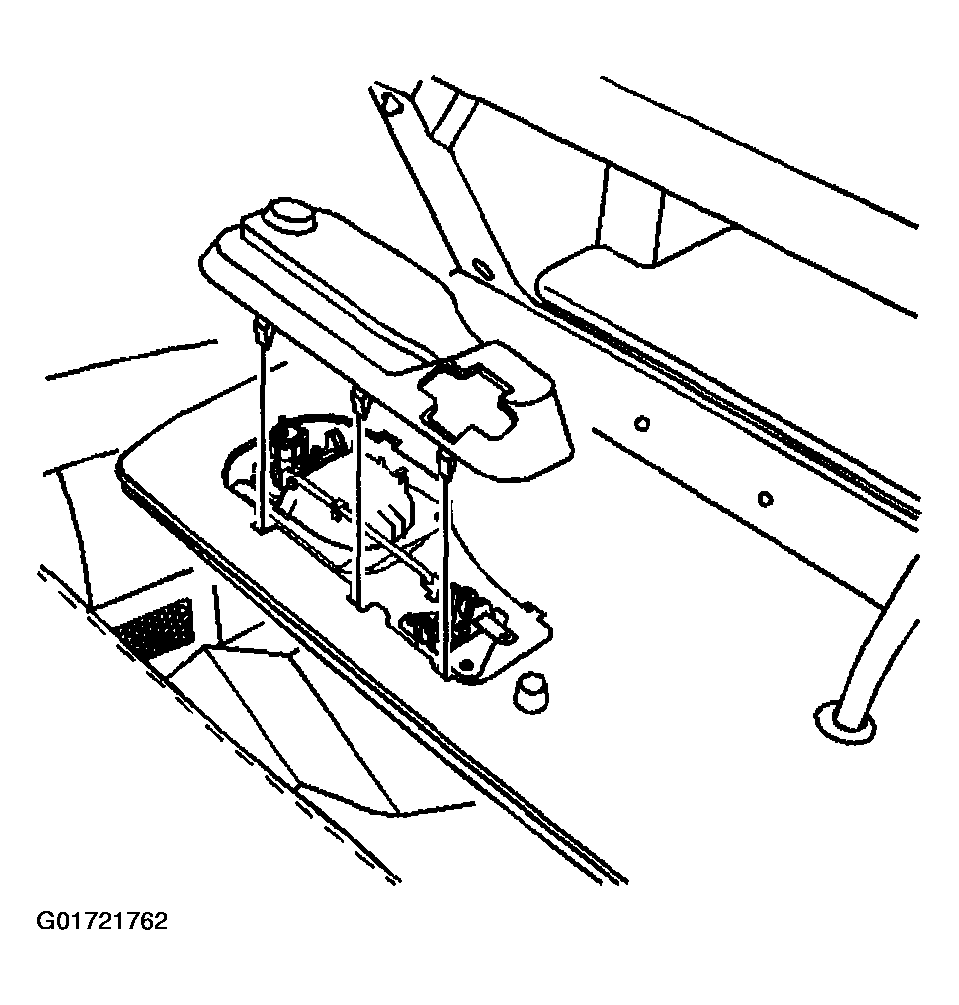

Fig 2: Aligning Door Handle And Latch Cover To Inside Of Instrument Panel (I/P) Compartment Door (Rendezvous)
Courtesy of GENERAL MOTORS CORP.
