Removal Procedure

  1. Use a flat-bladed tool to pry the cover of the driver information center panel from the instrument panel.

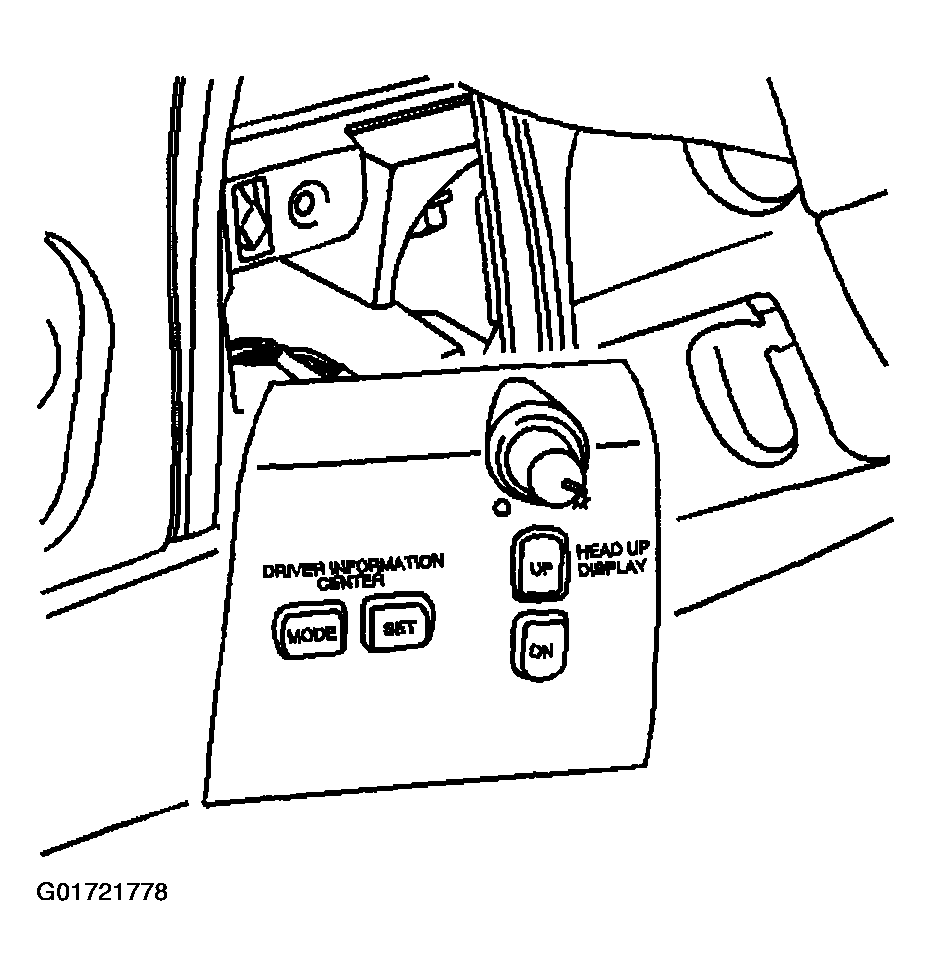

    Fig 1: Prying Off Driver Information Center Panel Cover
    G01721778Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connectors from the driver information center panel.
  3. Remove the driver information center panel from the instrument panel.

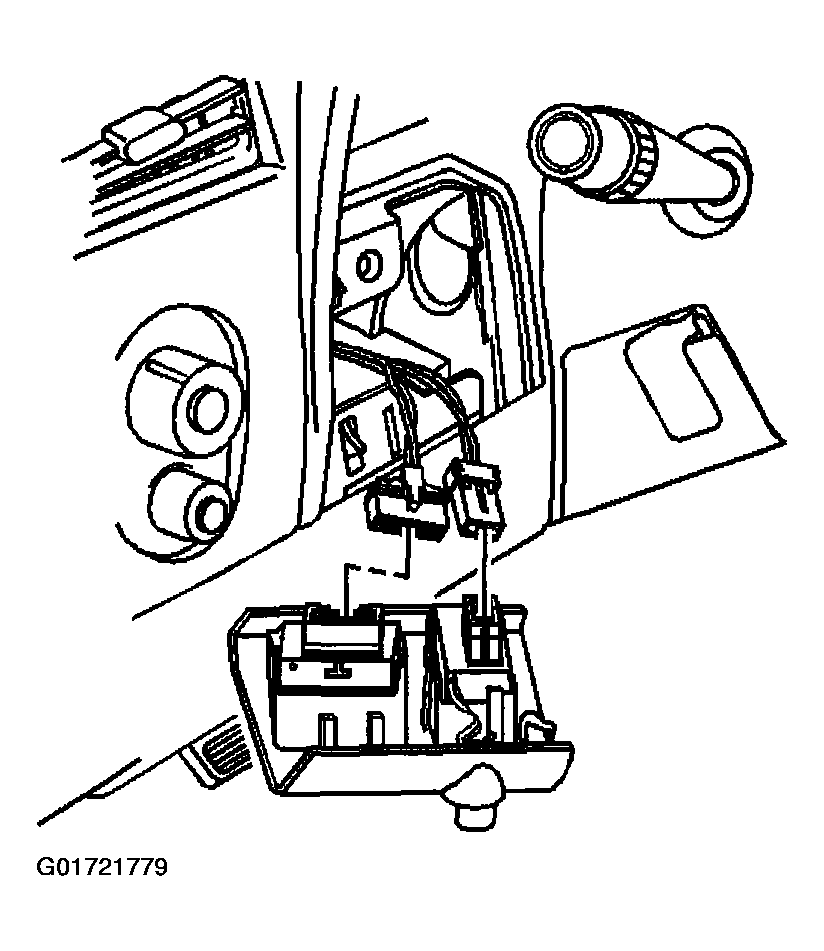

    Fig 2: Disconnecting Driver Information Center Panel Electrical Connectors
    G01721779Courtesy of GENERAL MOTORS CORP.
