Installation Procedure

  1. Connect the electrical connectors to the driver information center panel.

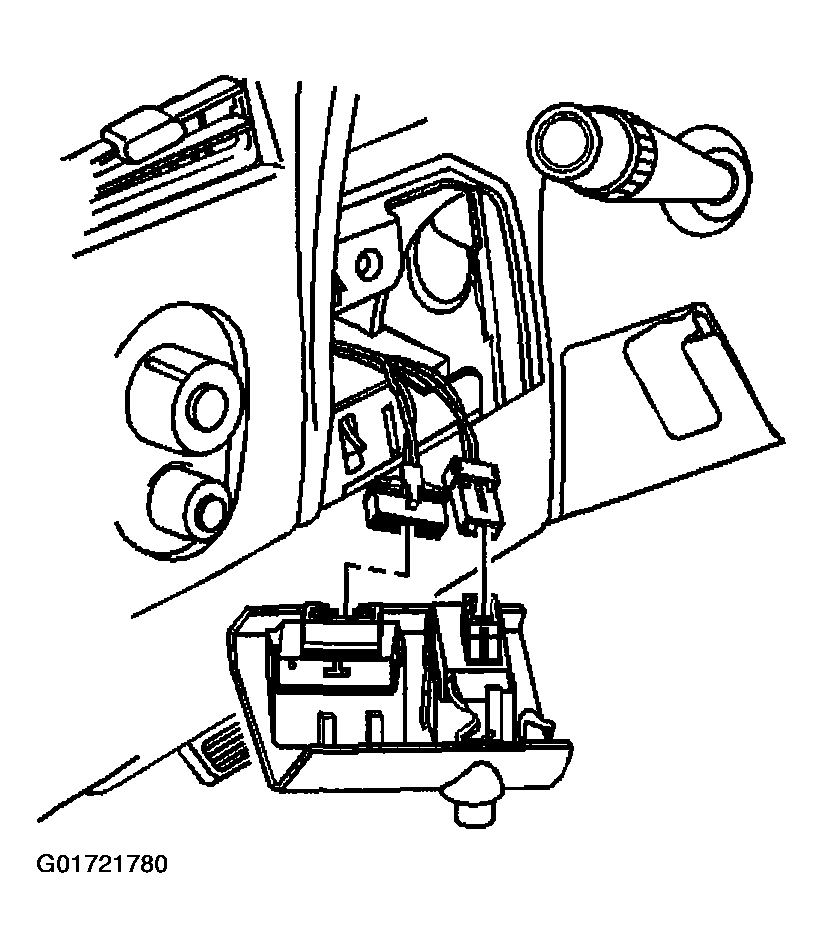

    Fig 1: Connecting Driver Information Center Panel Electrical Connectors
    G01721780Courtesy of GENERAL MOTORS CORP.
  2. Install the driver information center panel to the instrument panel. Press firmly into place until fully seated.

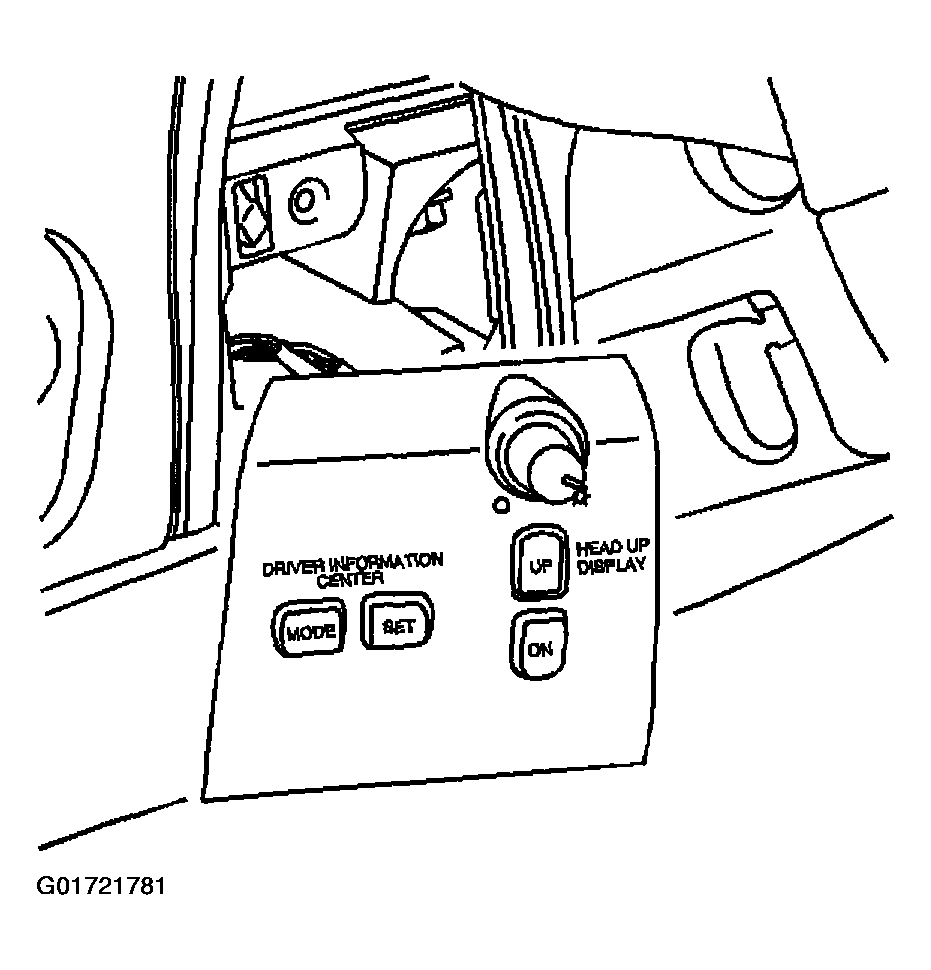

    Fig 2: Installing Driver Information Center Panel
    G01721781Courtesy of GENERAL MOTORS CORP.
