Installation Procedure

  1. Align the armrest to the hinge assembly.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the screws to the armrest assembly.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  3. Inspect the armrest position for proper alignment.

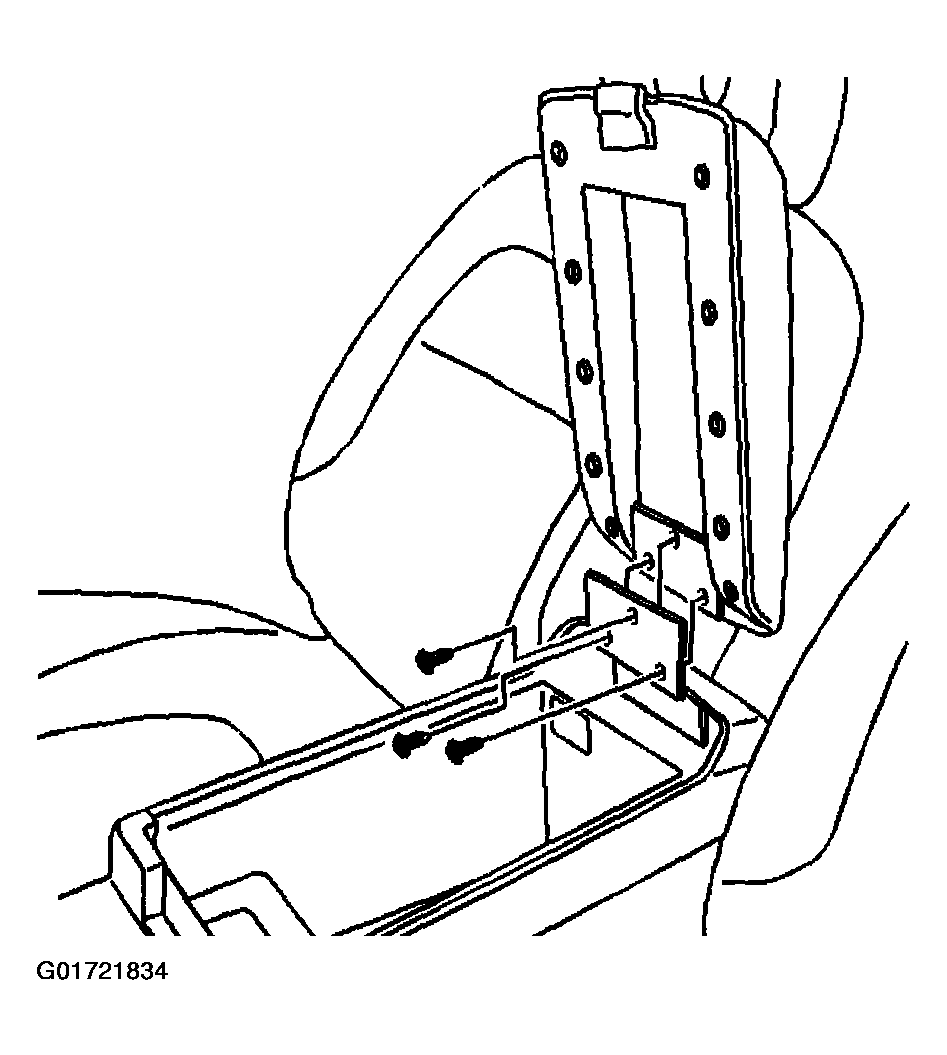

    Fig 1: Installing Armrest And Screws
    G01721834Courtesy of GENERAL MOTORS CORP.
