Installation Procedure

  1. Align the instrument panel compartment to the instrument panel.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the bolts to the instrument panel compartment hinge.

    Tighten

    Tighten the instrument panel compartment hinge bolts to 4 N.m (35 lb in).

  3. Close the instrument panel compartment.

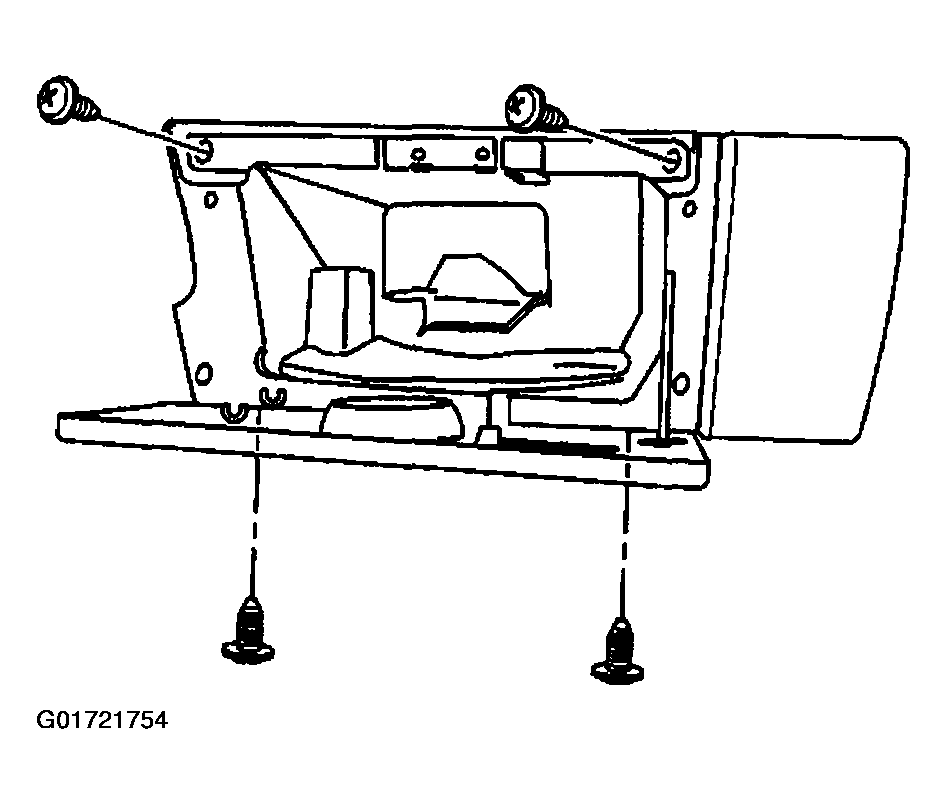

    Fig 1: Installing Instrument Panel Compartment
    G01721754Courtesy of GENERAL MOTORS CORP.
