Installation Procedure

  1. Snap the IP courtesy lamp into the IP insulator.

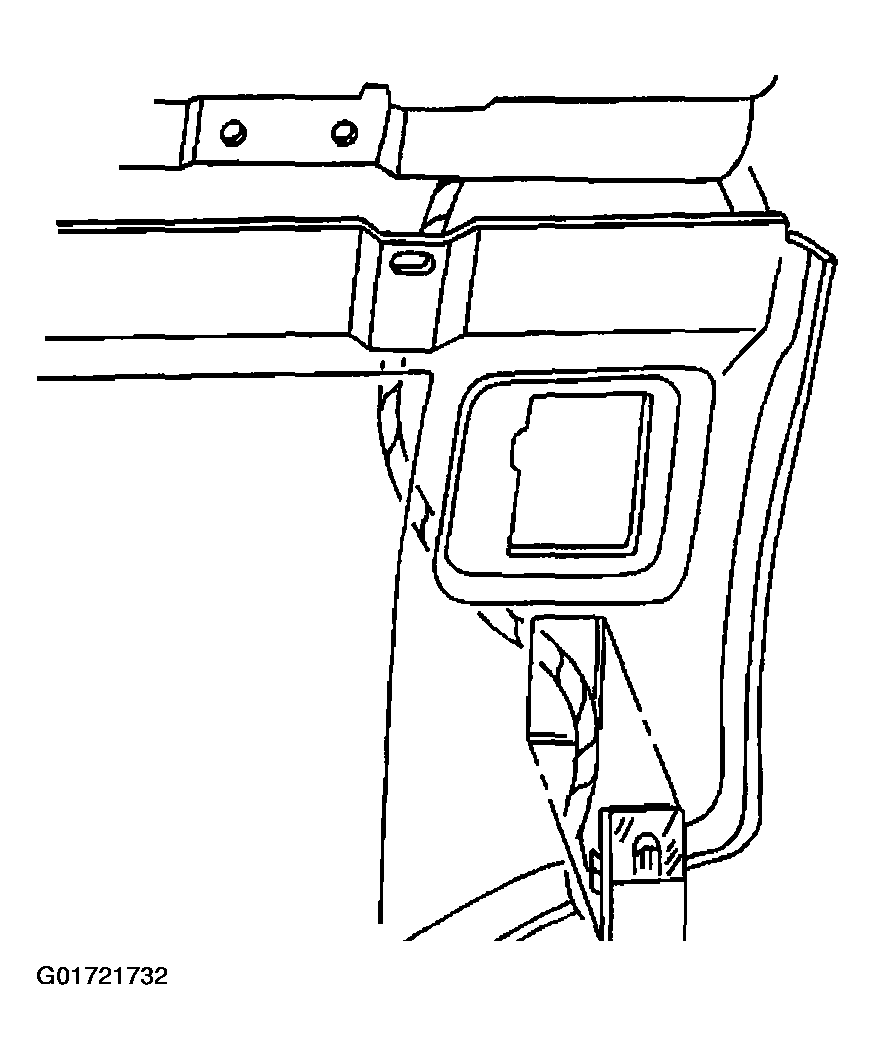

    Fig 1: Snapping IP Courtesy Lamp From IP Insulator
    G01721732Courtesy of GENERAL MOTORS CORP.
  2. Position the IP insulator to the instrument panel.
  3. Install the push-in retainers to the IP insulator to instrument panel.
  4. Install the press-on retainers to the IP insulator to dash mat.

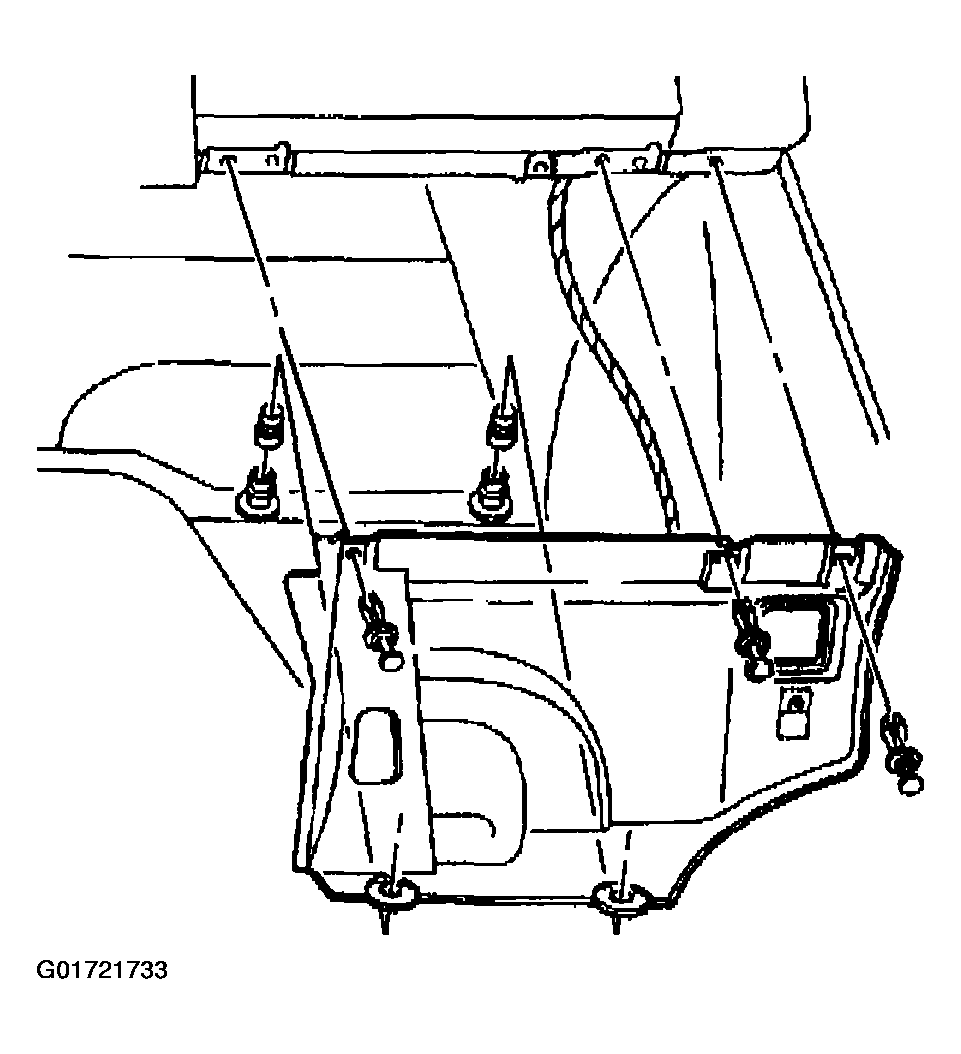

    Fig 2: Installing IP Insulator To Dash Mat Press-On Retainers
    G01721733Courtesy of GENERAL MOTORS CORP.
