Removal Procedure

Remove the push-in retainers from the IP insulator to instrument panel.
Remove the press-on retainers from the IP insulator to dash mat.

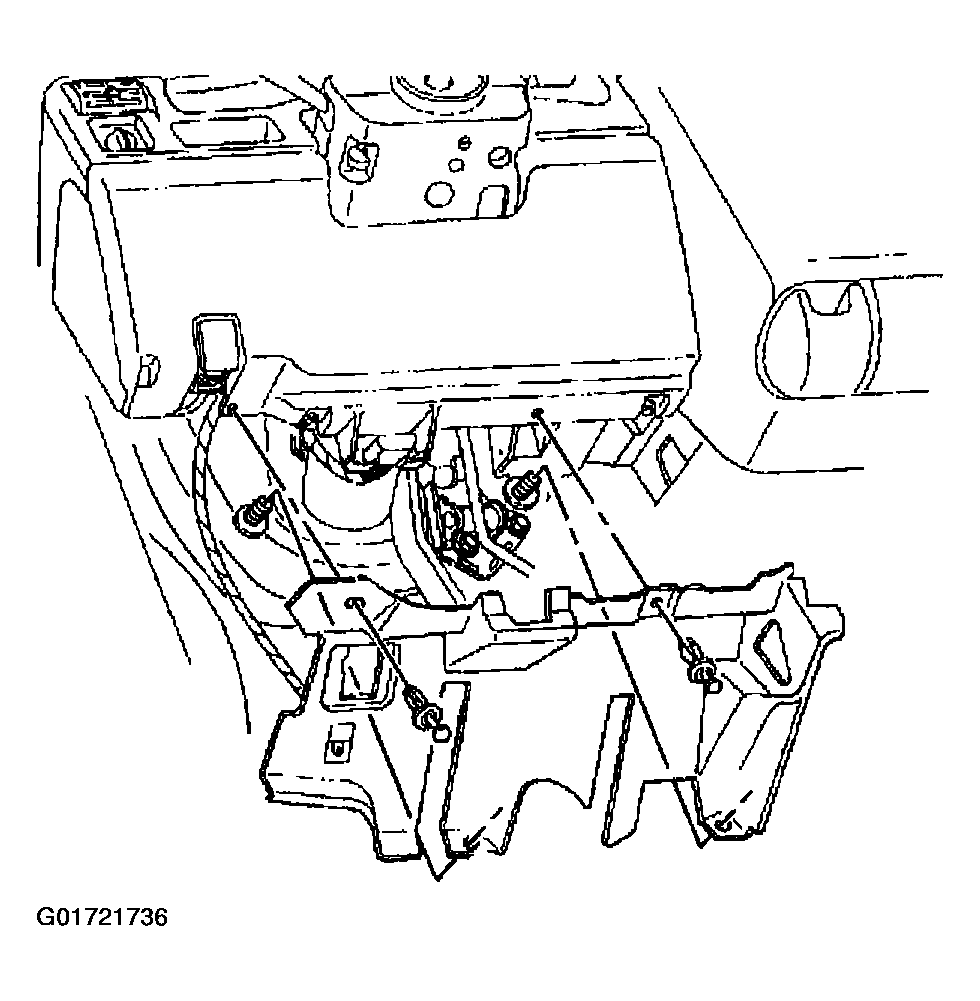

Fig 1: Removing IP Insulator Push-In And Press-On Retainers
Courtesy of GENERAL MOTORS CORP.
Unsnap the IP courtesy lamp from the IP insulator.

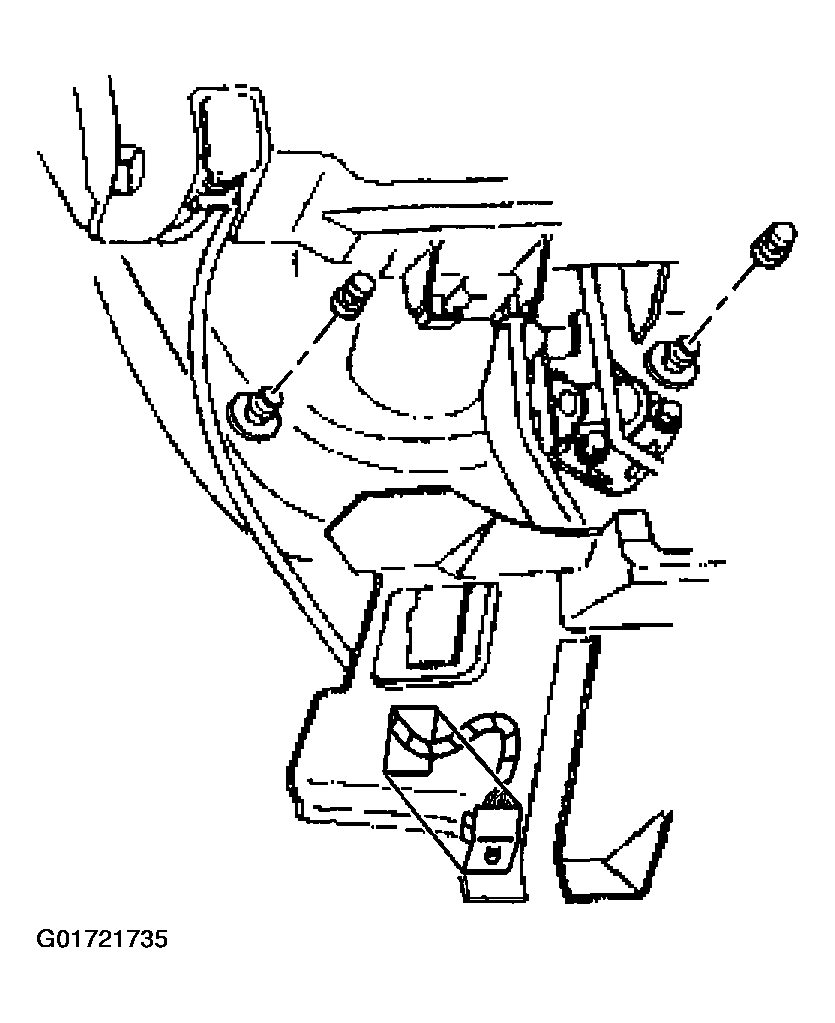

Fig 2: Unsnapping IP Courtesy Lamp
Courtesy of GENERAL MOTORS CORP.
Remove the IP insulator from the instrument panel.

Fig 3: Removing IP Insulator
Courtesy of GENERAL MOTORS CORP.
