Removal Procedure

  1. Remove the cigar lighter fuse.
  2. Place one side of the T-portion of J 42059  into the tab window and angle the other portion into the opposite tab window. Pull the cigar lighter socket straight out.
  3. Remove the tool from the cigar lighter socket.

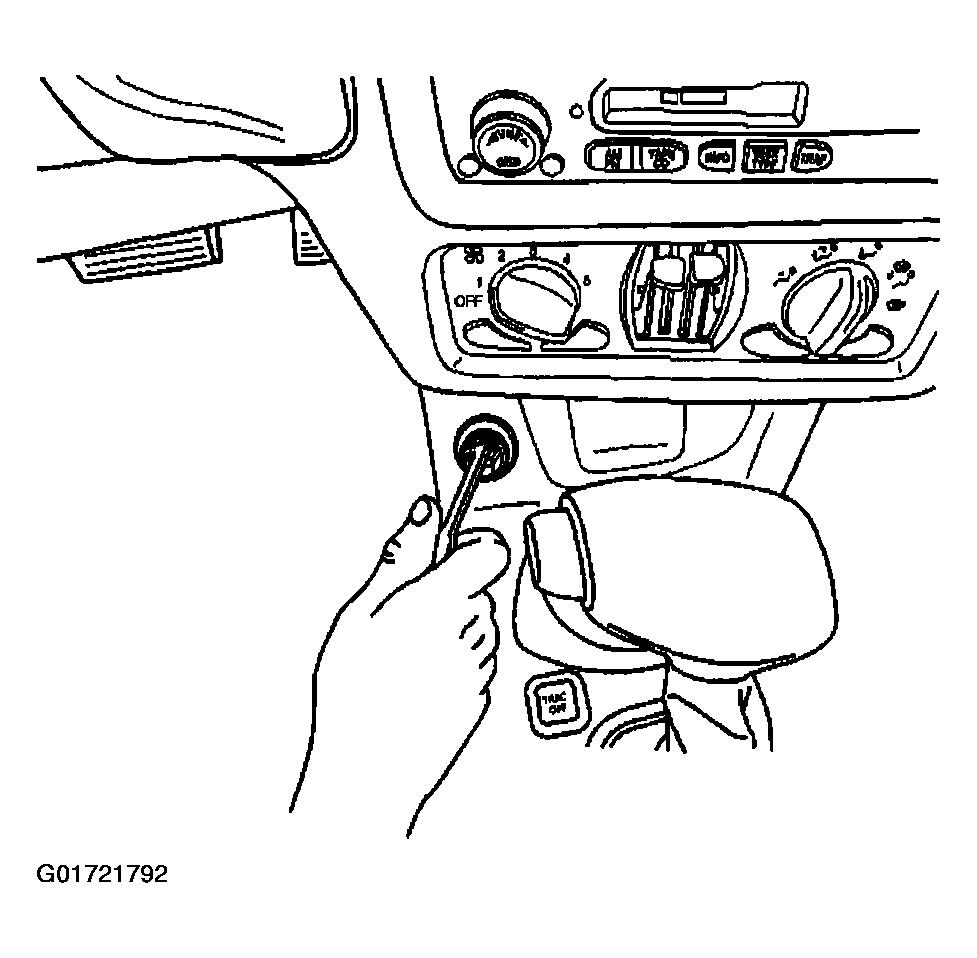

    Fig 1: Removing Cigar Lighter Socket
    G01721792Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connector from the front console cigar lighter socket.

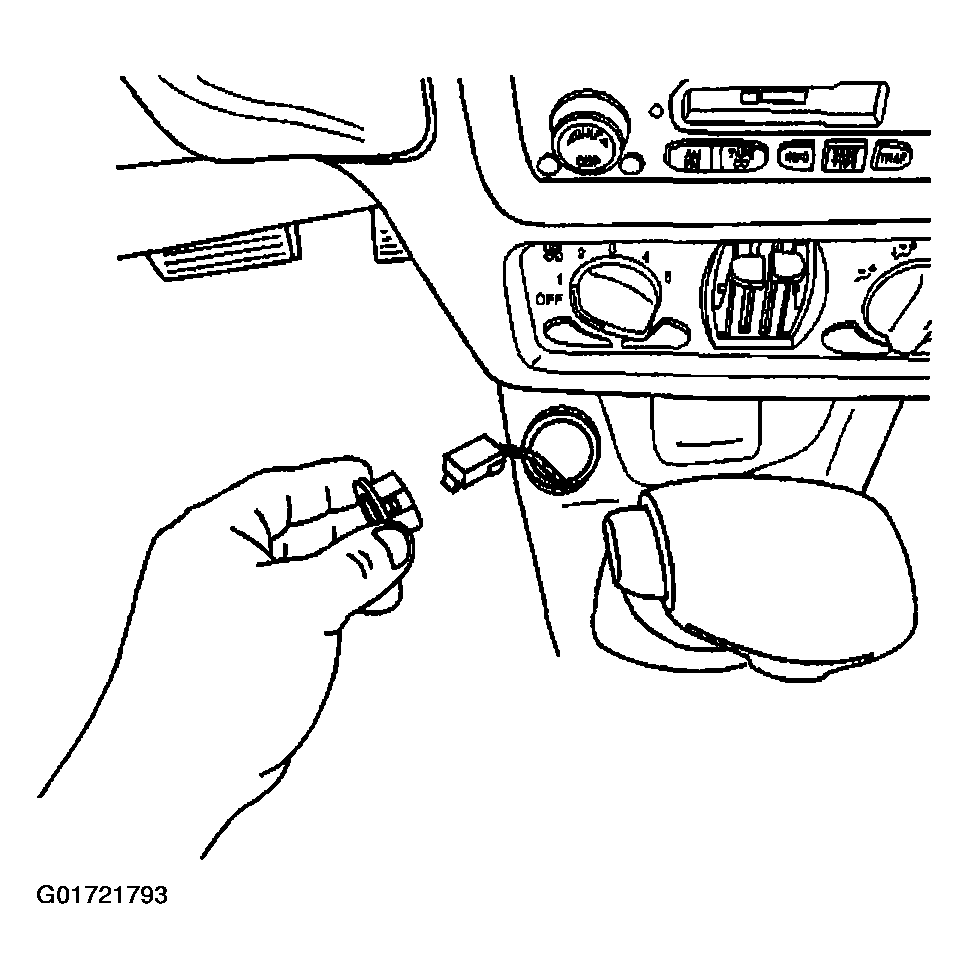

    Fig 2: Disconnecting Front Console Cigar Lighter Socket Electrical Connector
    G01721793Courtesy of GENERAL MOTORS CORP.
  5. Remove the cigar lighter port retainer by using your index finger and pulling out.

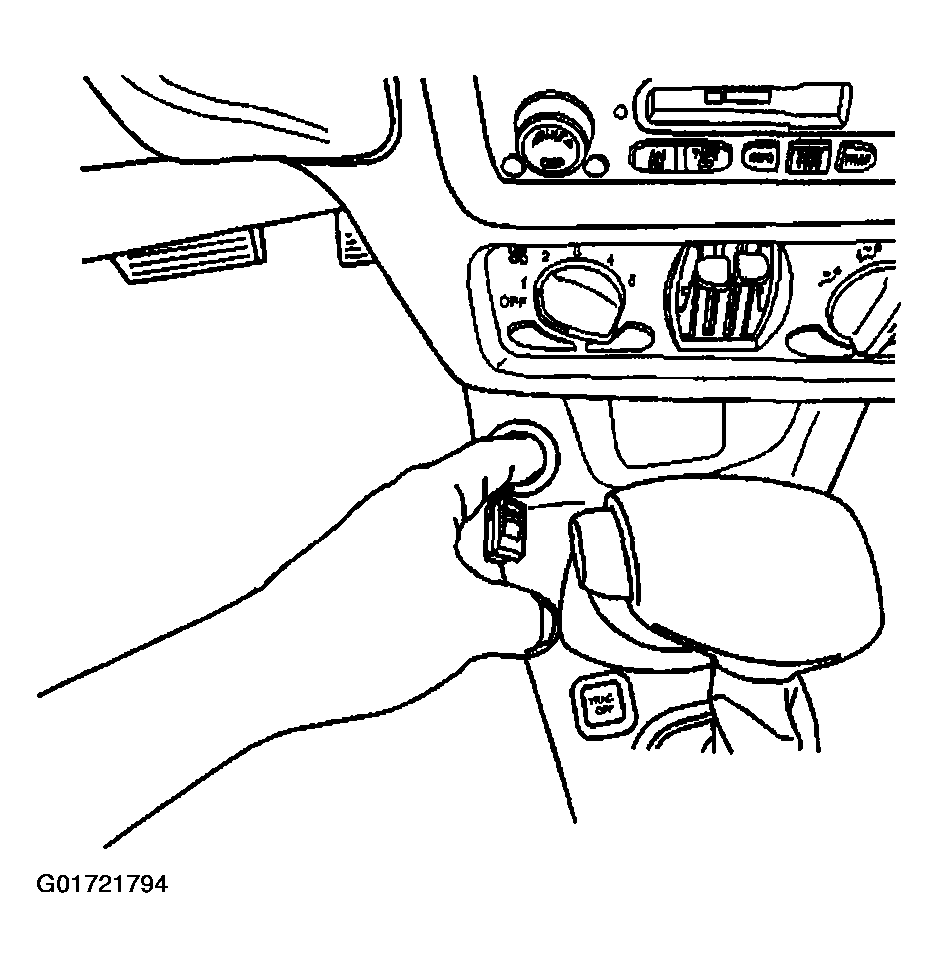

    Fig 3: Removing Cigar Lighter Port Retainer
    G01721794Courtesy of GENERAL MOTORS CORP.
