Installation Procedure

Position the cigar lighter port retainer, placing the key to the slot into the cigar lighter socket hole.

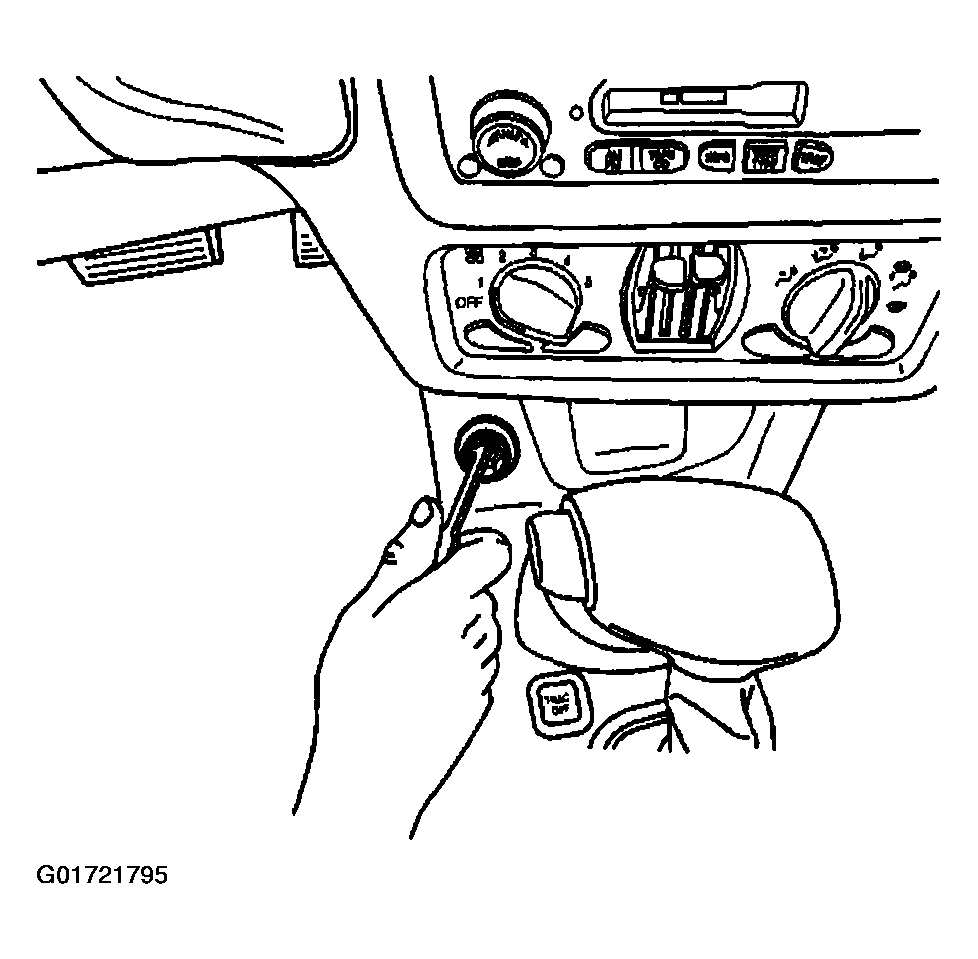

Fig 1: Positioning Cigar Lighter Port Retainer
Courtesy of GENERAL MOTORS CORP.
Install the cigar lighter port retainer by pressing into place until fully seated.

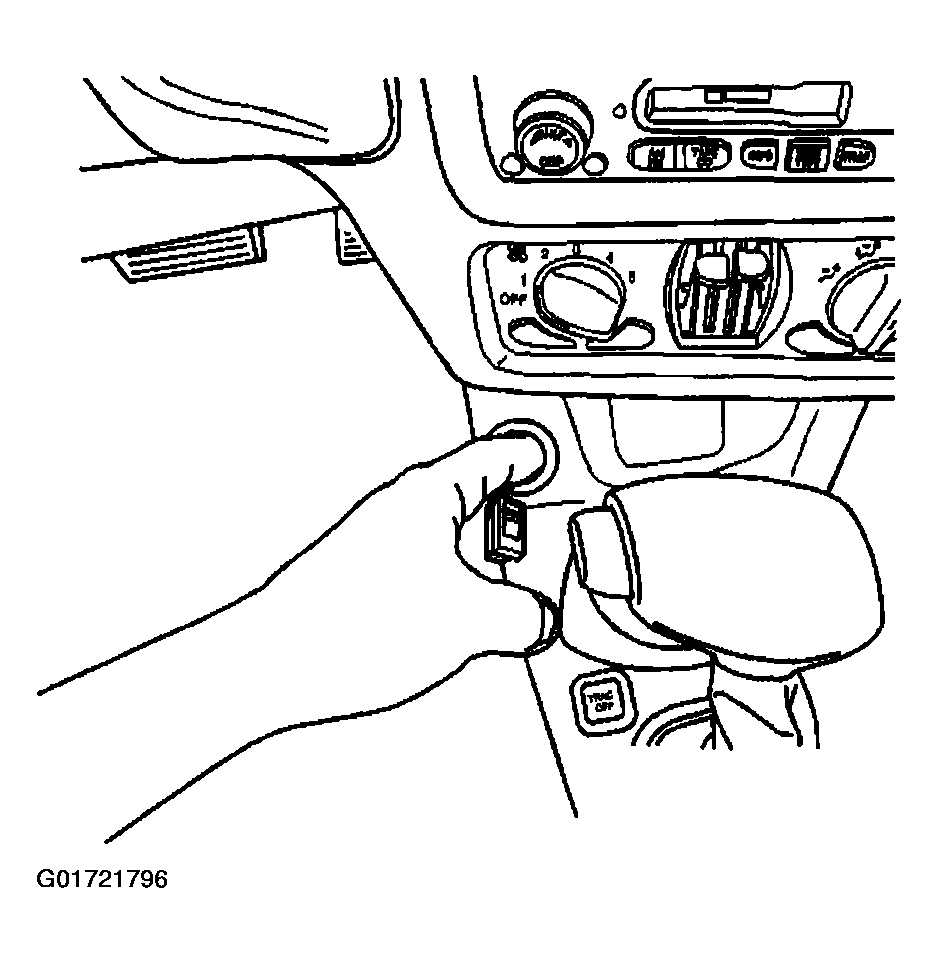

Fig 2: Installing Cigar Lighter Port Retainer
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connector to the cigar lighter socket.
Position the cigar lighter socket to the retainer.
Install the cigar lighter socket into the front console. Press into place until fully seated.
Install the cigar lighter fuse.
Inspect the cigar lighter for proper operation.

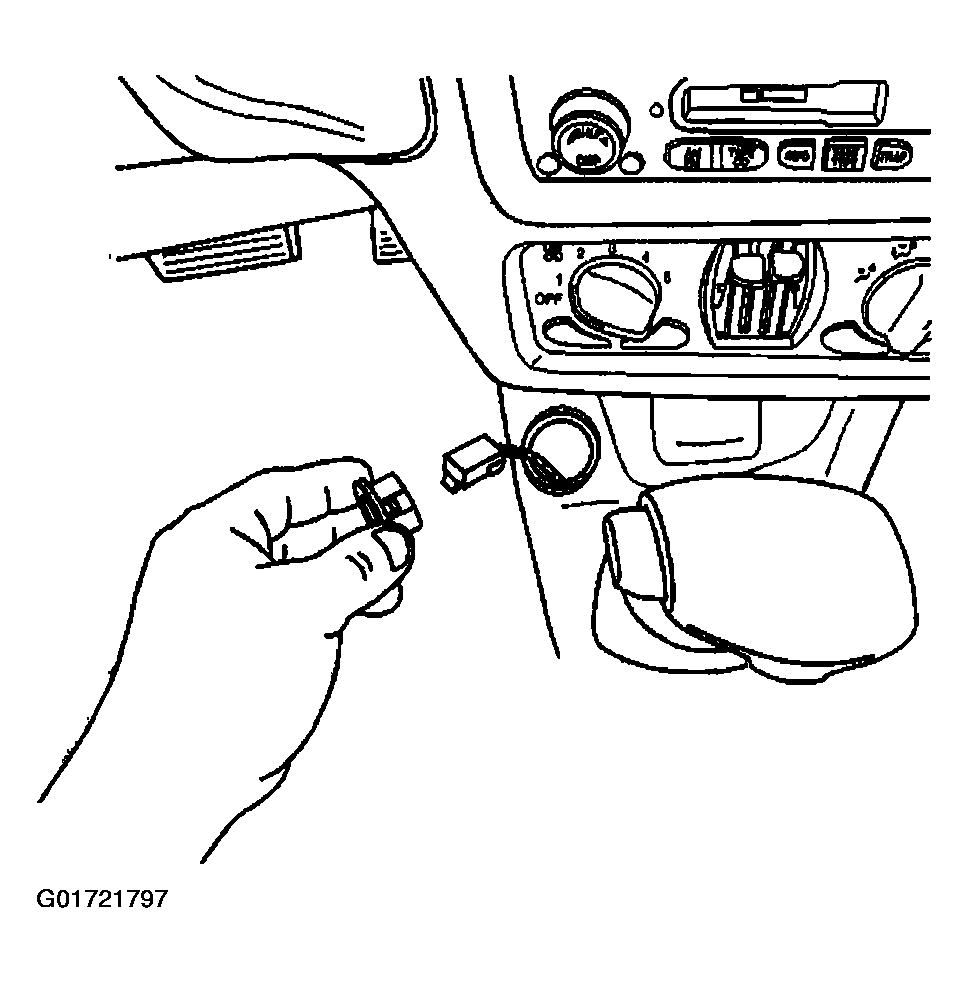

Fig 3: Connecting Cigar Lighter Socket Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
