Removal Procedure

  1. Remove the front floor console. Refer to Console Replacement - Front Floor (Aztek)  or Console Replacement - Front Floor (Rendezvous) .
  2. Remove the upper bolts (2) from the IP.
  3. Remove the lower nuts (1) from the floor.
  4. Remove the front floor console bracket from the floor.

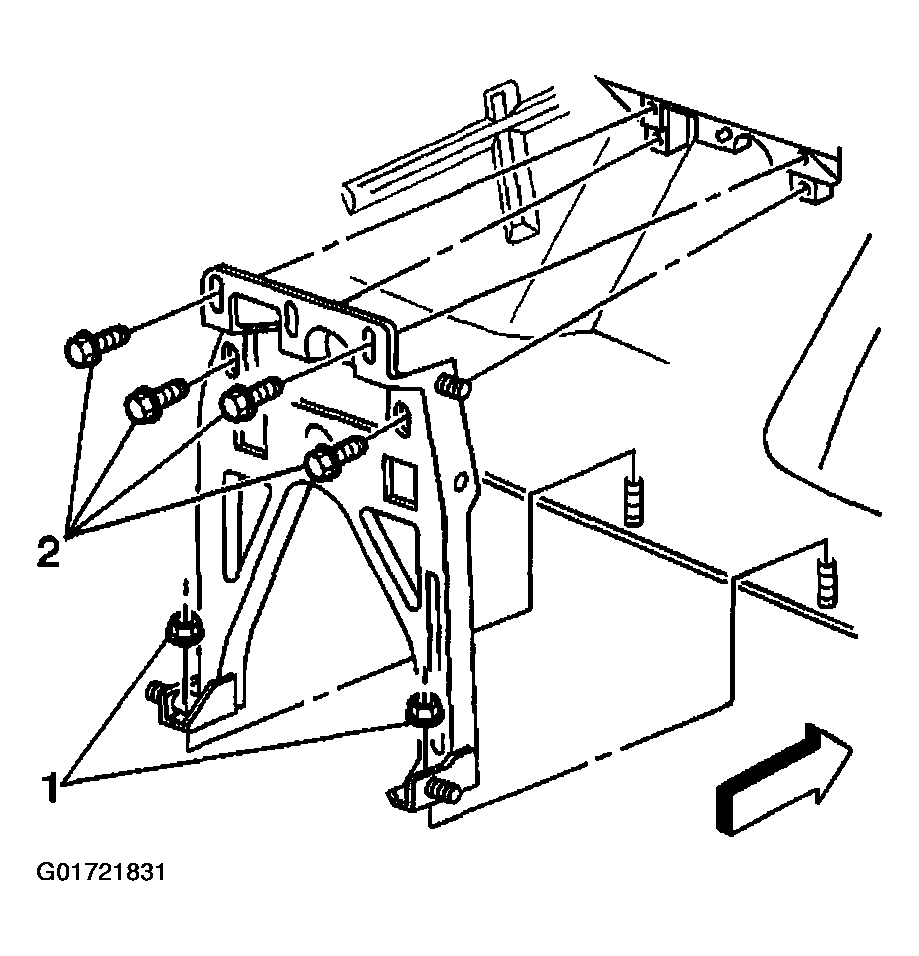

    Fig 1: Removing IP Upper Bolts And Floor Lower Nuts
    G01721831Courtesy of GENERAL MOTORS CORP.
