Installation Procedure

  1. Align the front floor console bracket to the floor.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the lower nuts (1) to the front floor console bracket.

    Tighten

    Tighten the nuts to 10 N.m (89 lb in).

  3. Install the upper bolts/screws (2) to the IP.

    Tighten

    Tighten the bolts/screws to 2.5 N.m (22 lb in).

  4. Install the front floor console. Refer to Console Replacement - Front Floor (Aztek)  or Console Replacement - Front Floor (Rendezvous) .

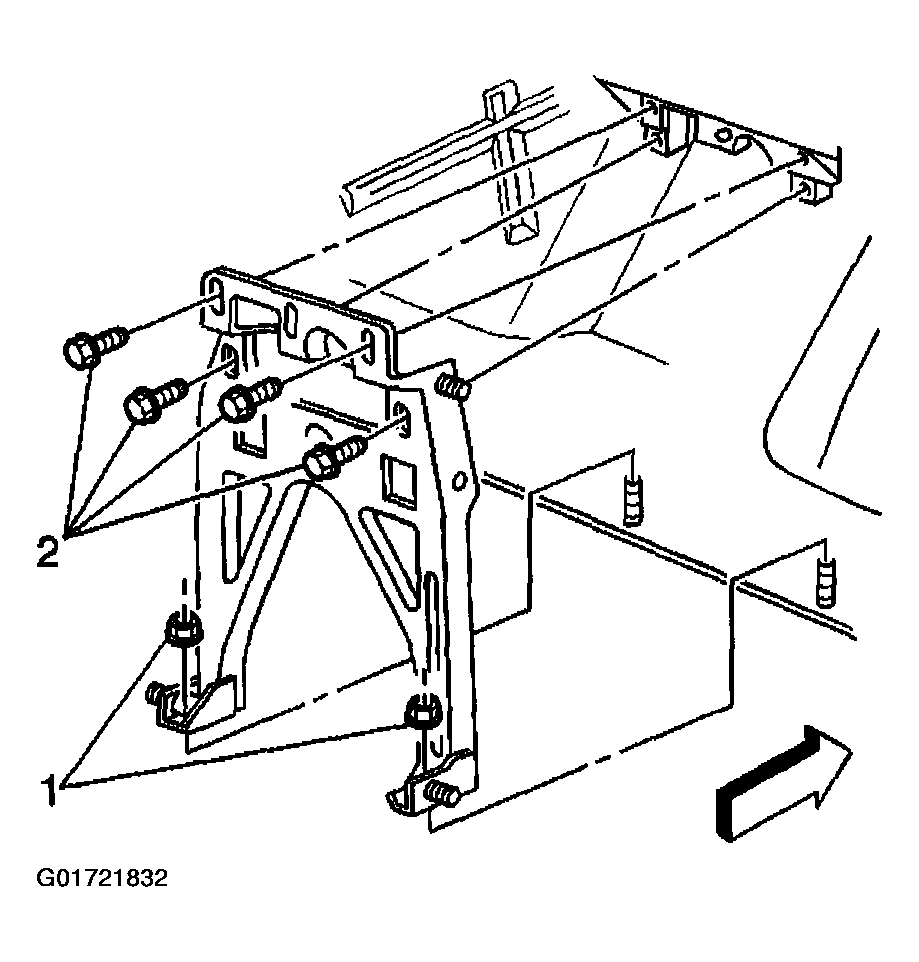

    Fig 1: Installing IP Upper Bolts And Floor Lower Nuts
    G01721832Courtesy of GENERAL MOTORS CORP.
