Installation Procedure

  1. Align the ambient air temperature sensor to the vehicle.
  2. Install the push-in retainer which secures the ambient air temperature sensor to the radiator core support.
  3. Connect the electrical connector to the ambient air temperature sensor.
  4. Install the right headlamp assembly. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT (AZTEK) or HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT (RENDEZVOUS) .
  5. Close the hood.

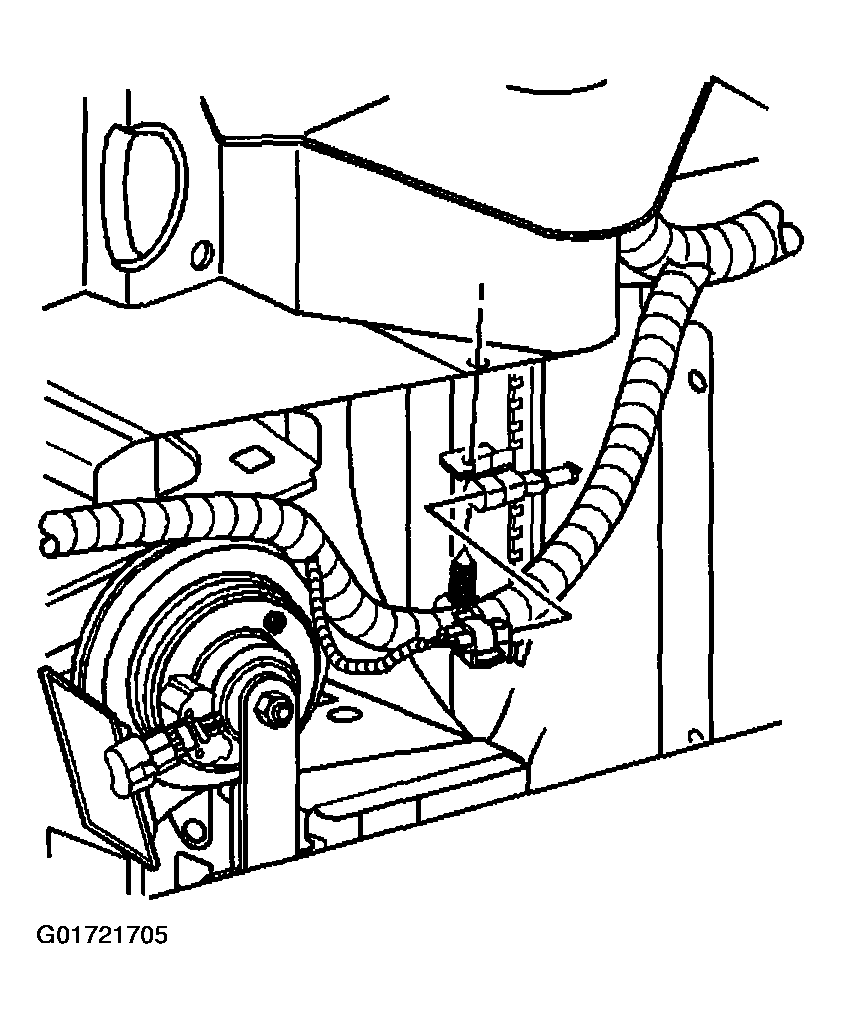

    Fig 1: Installing Ambient Air Temperature Sensor (Aztek)
    G01721705Courtesy of GENERAL MOTORS CORP.
