Installation Procedure

  1. Position the 12 volt power supply retainer with the key to the slot into the 12 volt power supply hole.

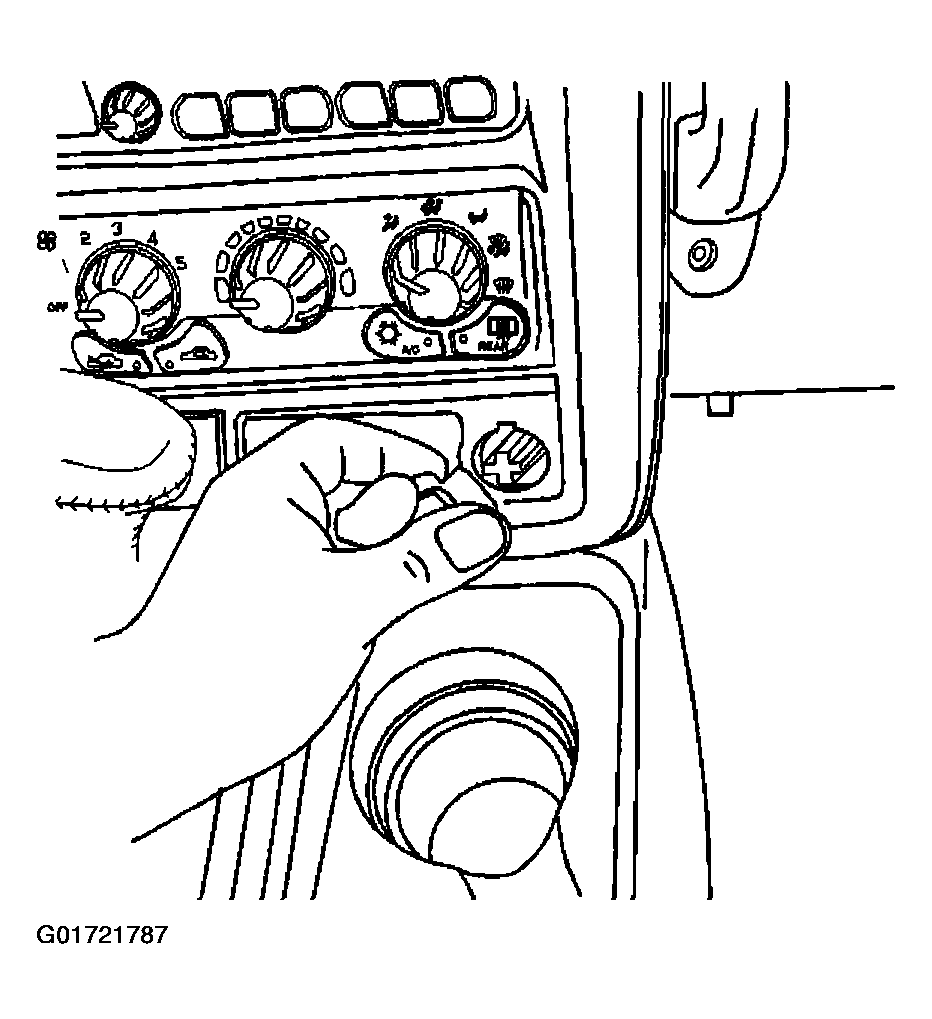

    Fig 1: Positioning 12 Volt Power Supply Retainer
    G01721787Courtesy of GENERAL MOTORS CORP.
  2. Install the 12 volt power supply retainer pressing into place until fully seated.

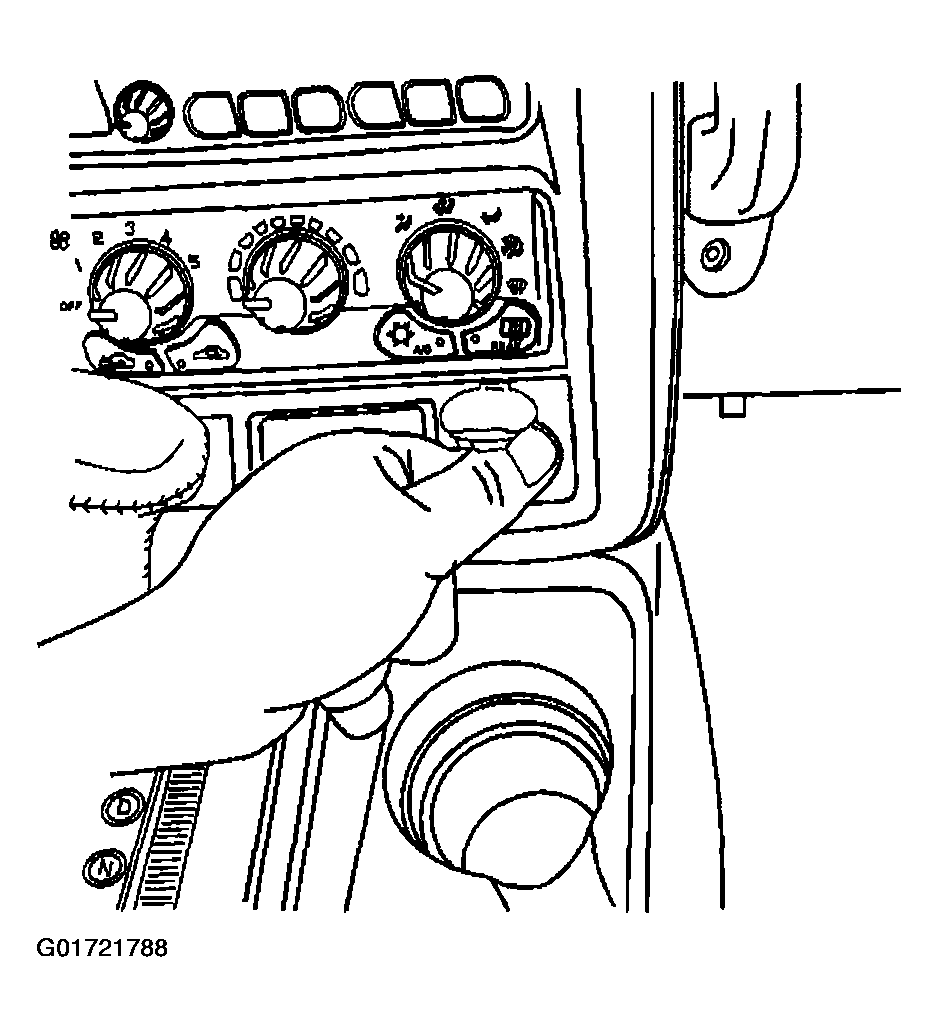

    Fig 2: Installing 12 Volt Power Supply Retainer
    G01721788Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to the instrument panel 12 volt power supply.

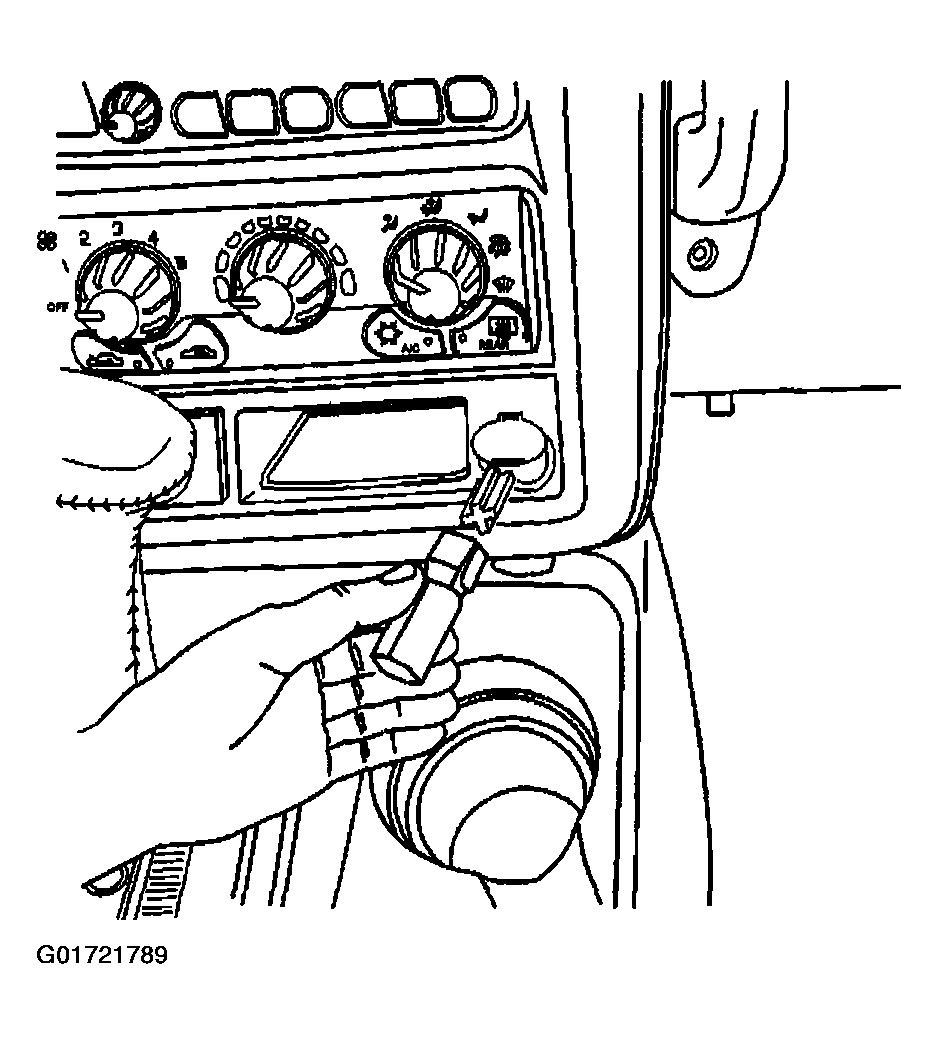

    Fig 3: Connecting Instrument Panel 12 Volt Power Supple Electrical Connector
    G01721789Courtesy of GENERAL MOTORS CORP.
  4. Position the 12 volt power supply to the retainer.

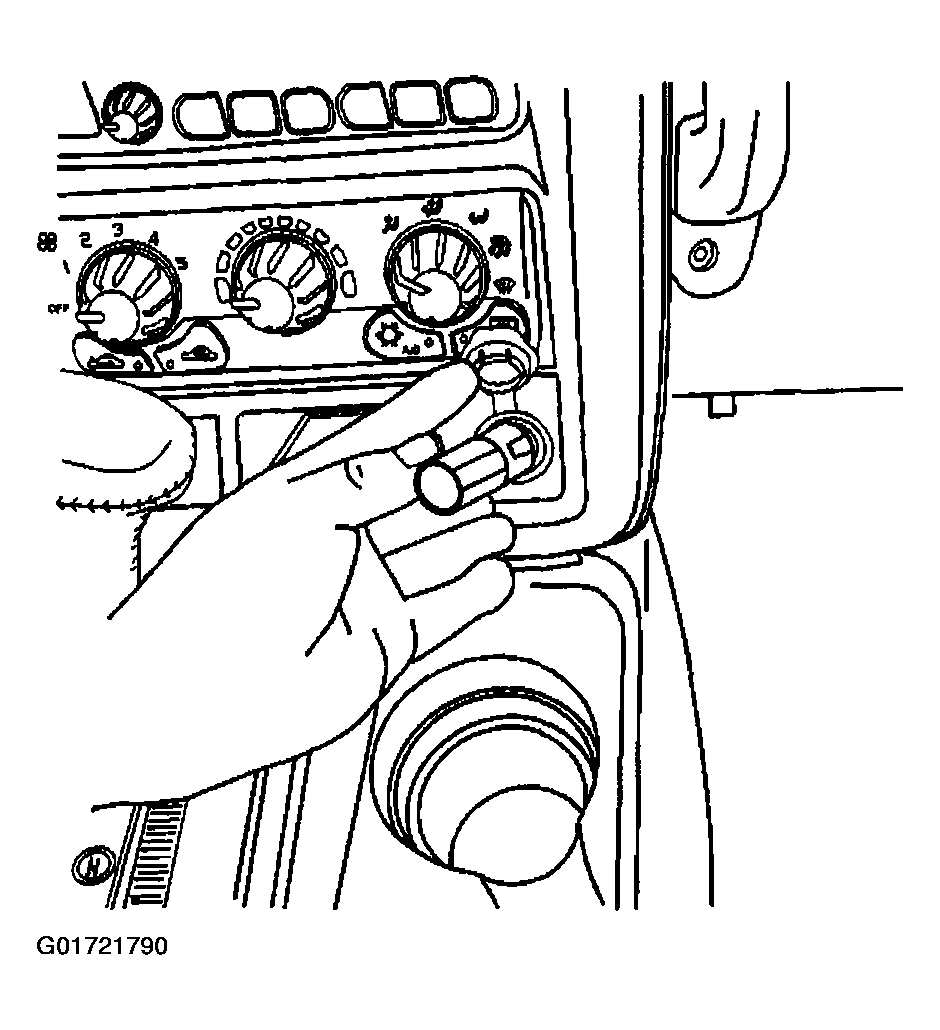

    Fig 4: Positioning 12 Volt Power Supply To Retainer
    G01721790Courtesy of GENERAL MOTORS CORP.
  5. Install the 12 volt power supply into the instrument panel pressing into place until fully seated.
  6. Install the 12 volt power supply fuse.
  7. Inspect the 12 volt power supply for proper operation.

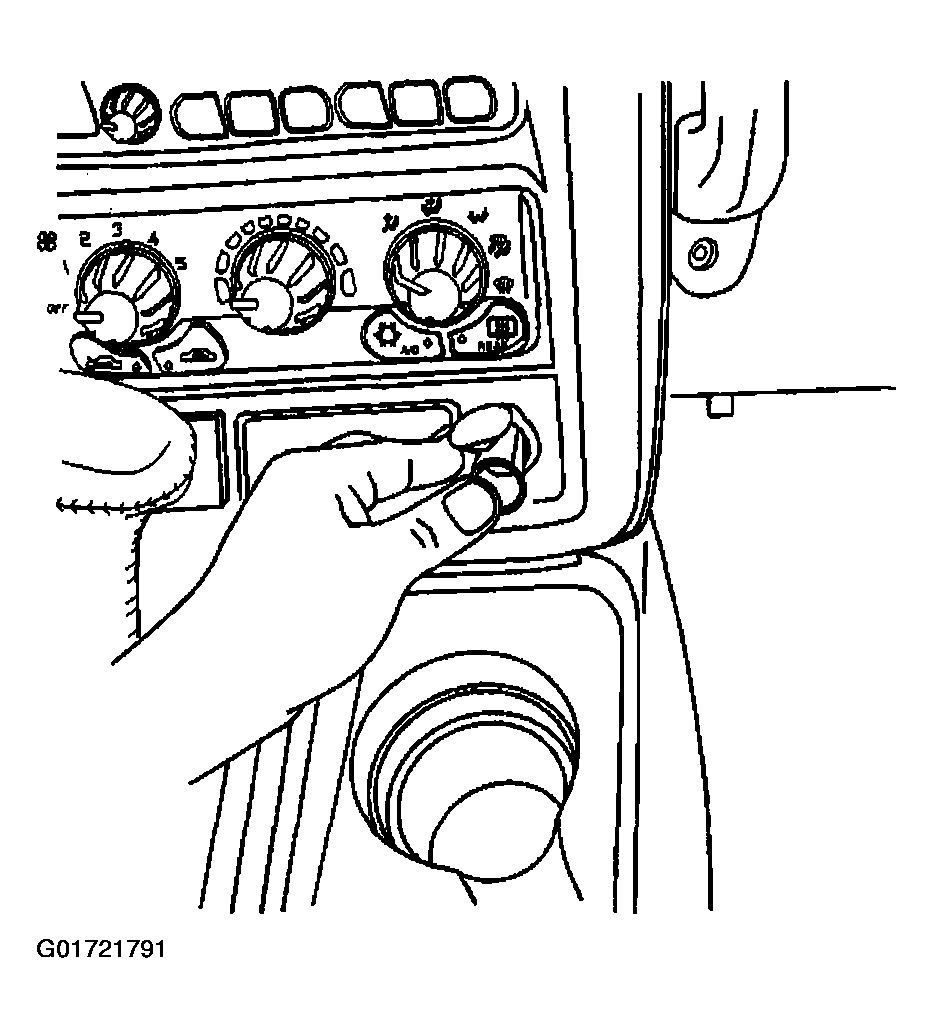

    Fig 5: Installing 12 Volt Power Supply
    G01721791Courtesy of GENERAL MOTORS CORP.
