Instrument Panel, Gages, and Console Connector End Views

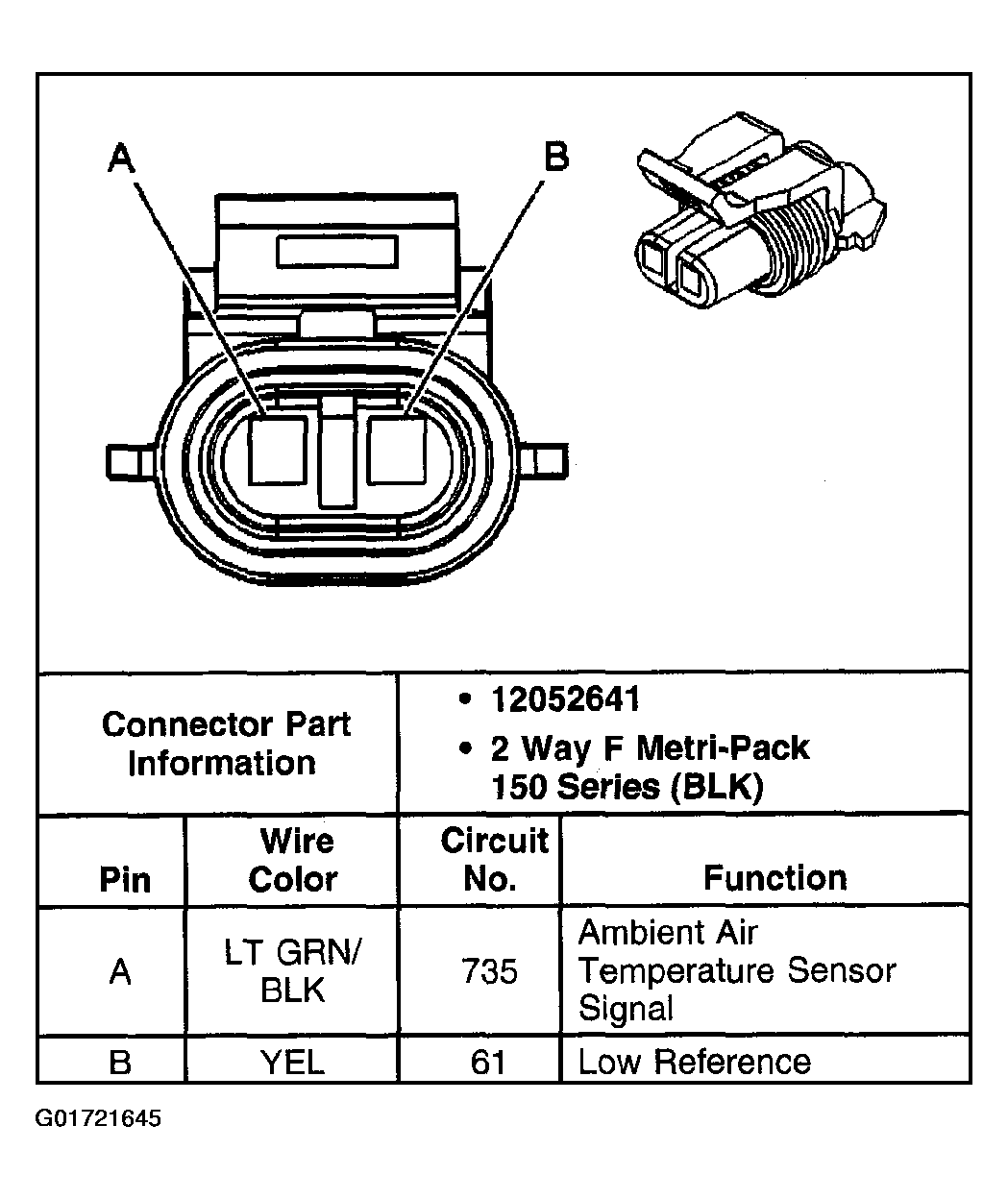

Fig 1: Ambient Air Temperature Sensor (UH9/CJ2) Connector End Views

Courtesy of GENERAL MOTORS CORP.

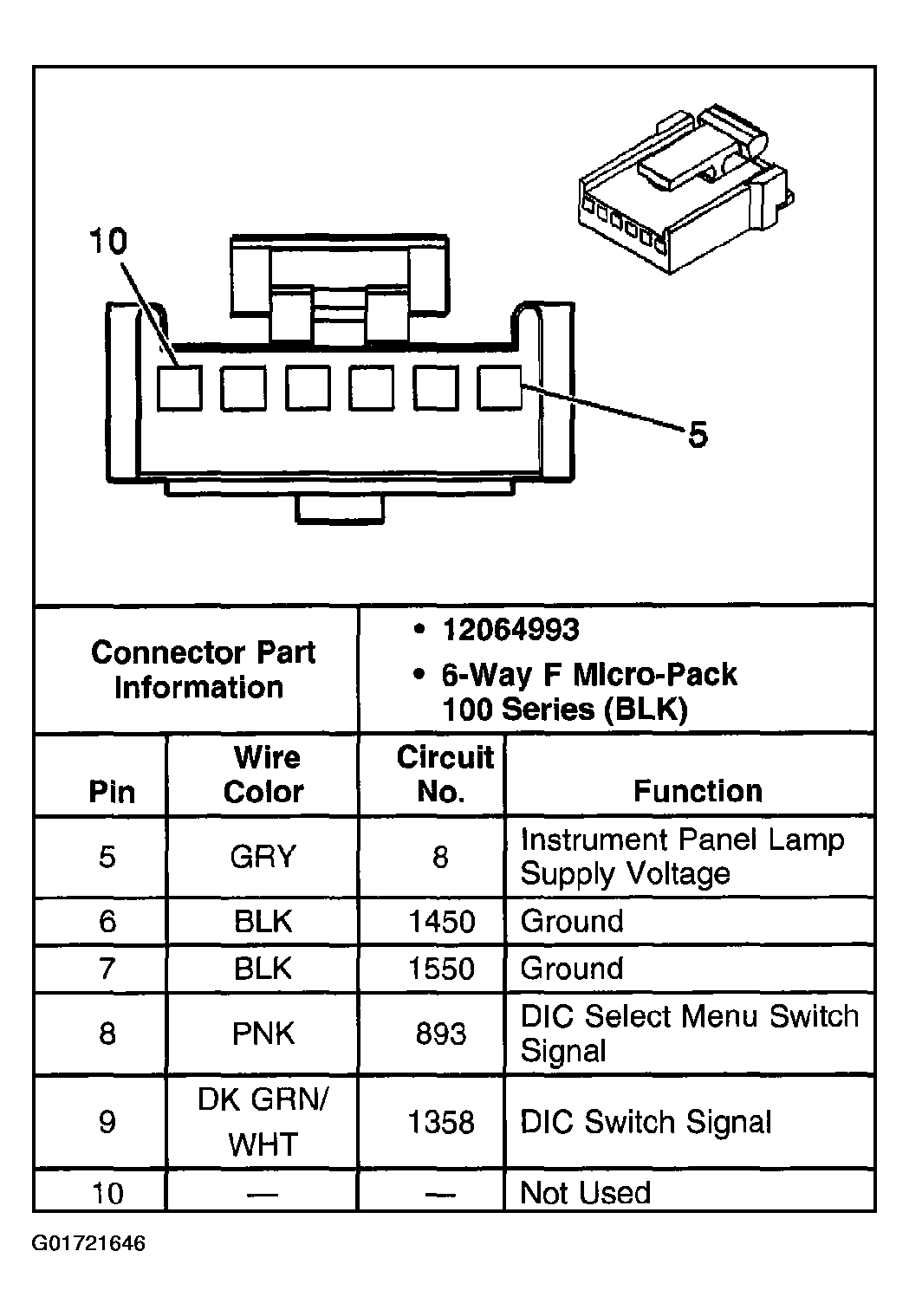

Fig 2: Driver Information Center (DIC) Switch (UH9) Connector End Views

Courtesy of GENERAL MOTORS CORP.

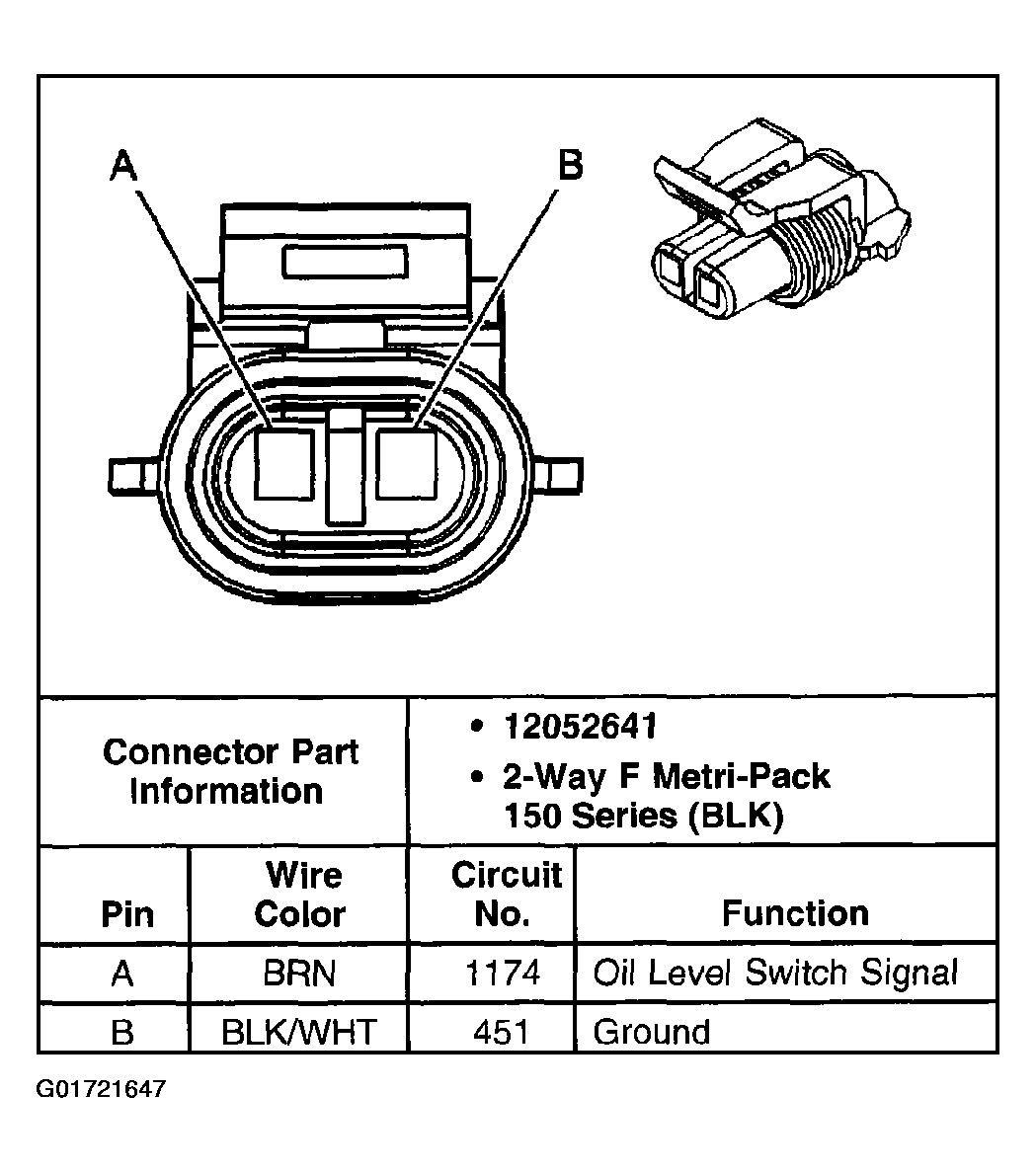

Fig 3: Engine Oil Level Switch Connector End Views

Courtesy of GENERAL MOTORS CORP.

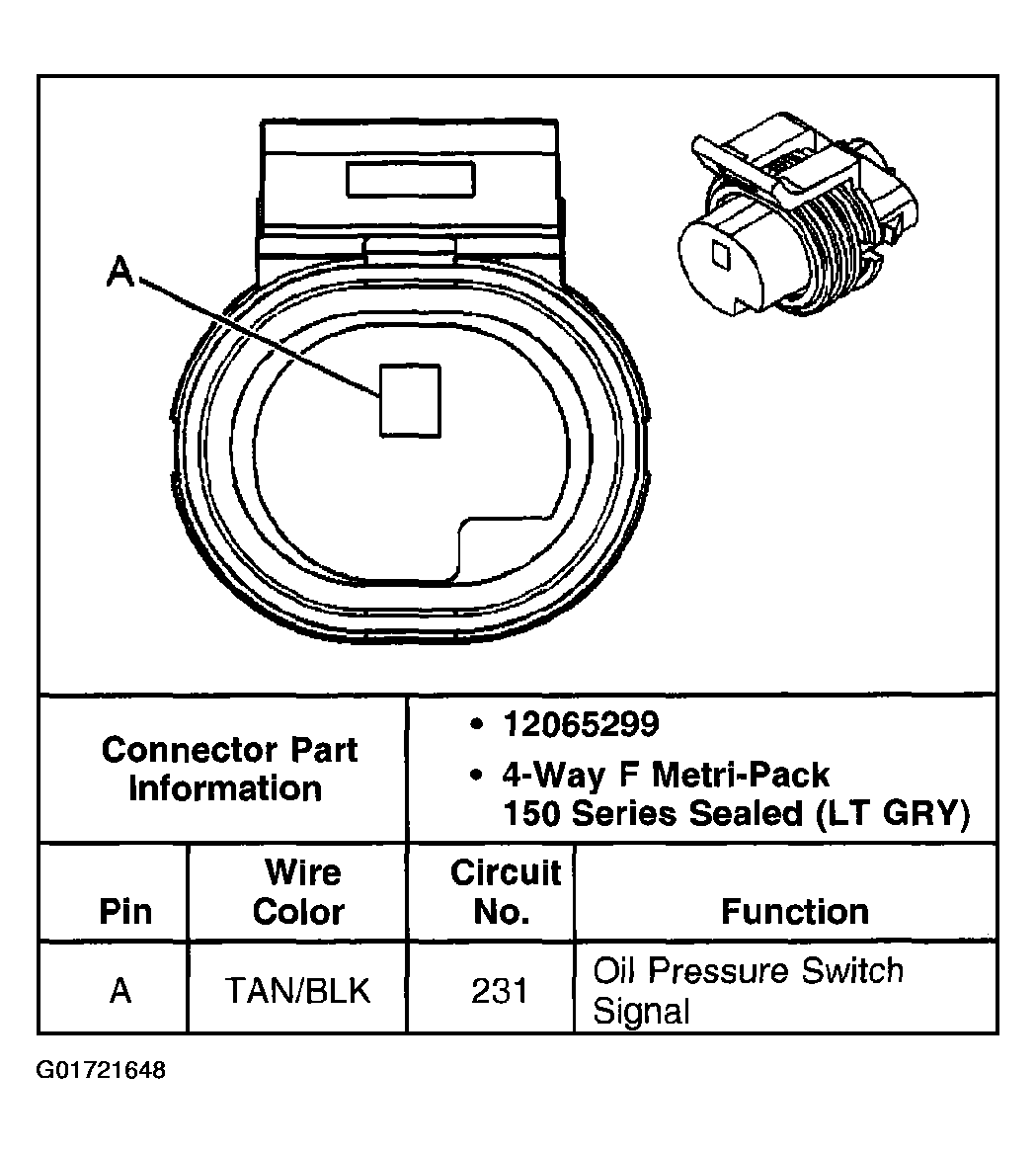

Fig 4: Engine Oil Pressure (EOP) Switch Connector End Views

Courtesy of GENERAL MOTORS CORP.

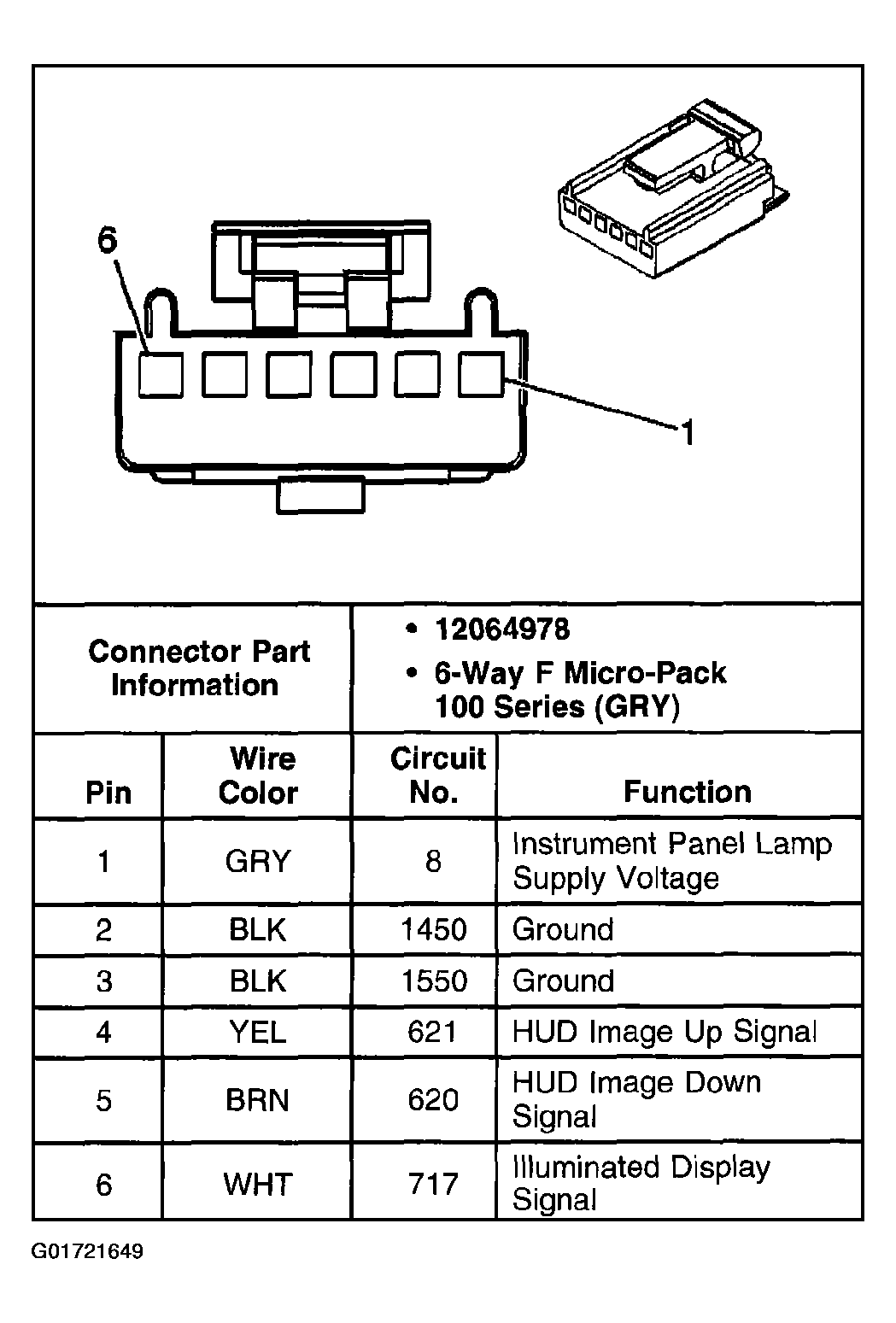

Fig 5: Head Up Display (HUD) Switch Connector End Views

Courtesy of GENERAL MOTORS CORP.

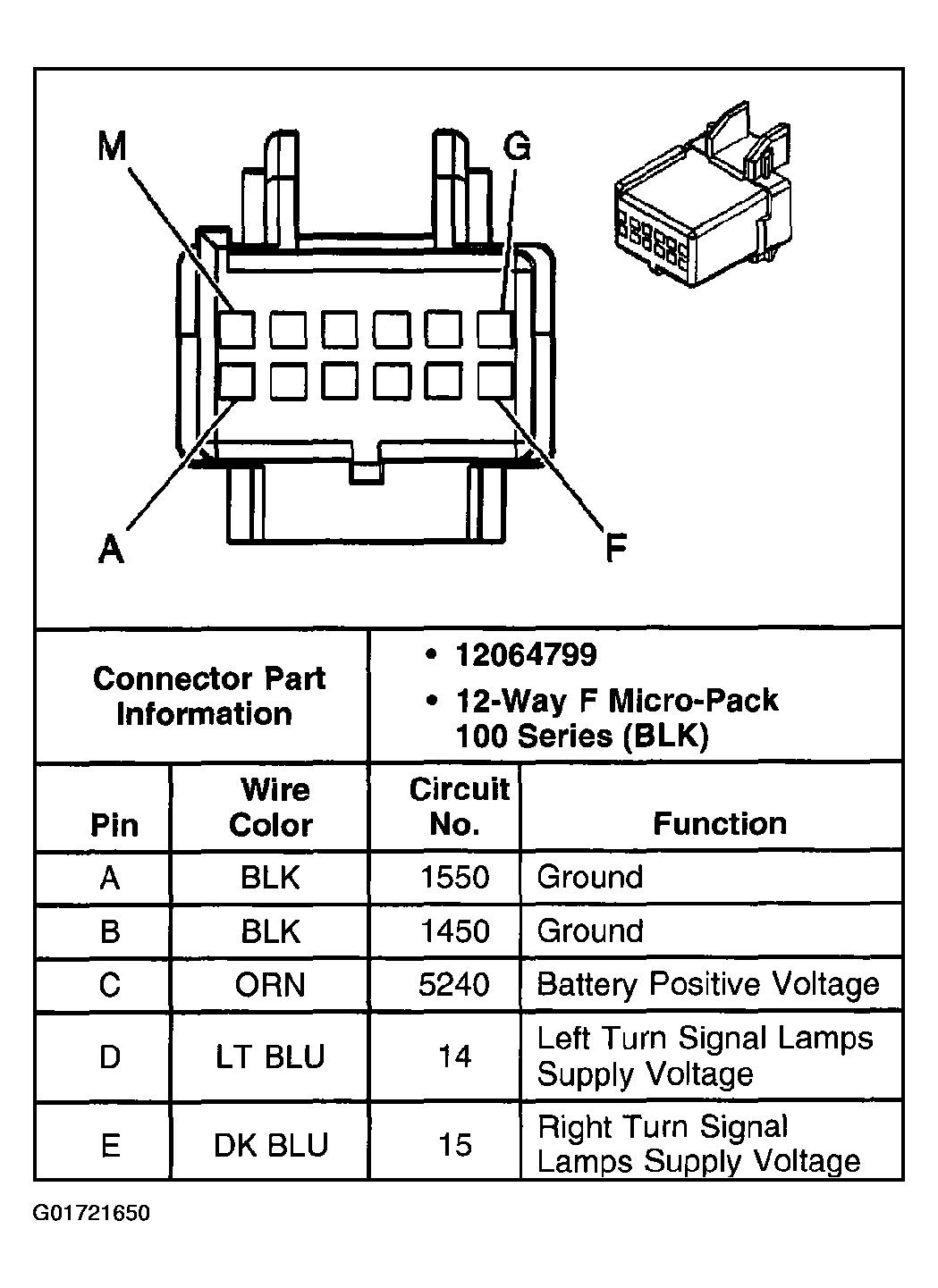

Fig 6: Head Up Display (HUD) Connector End Views (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

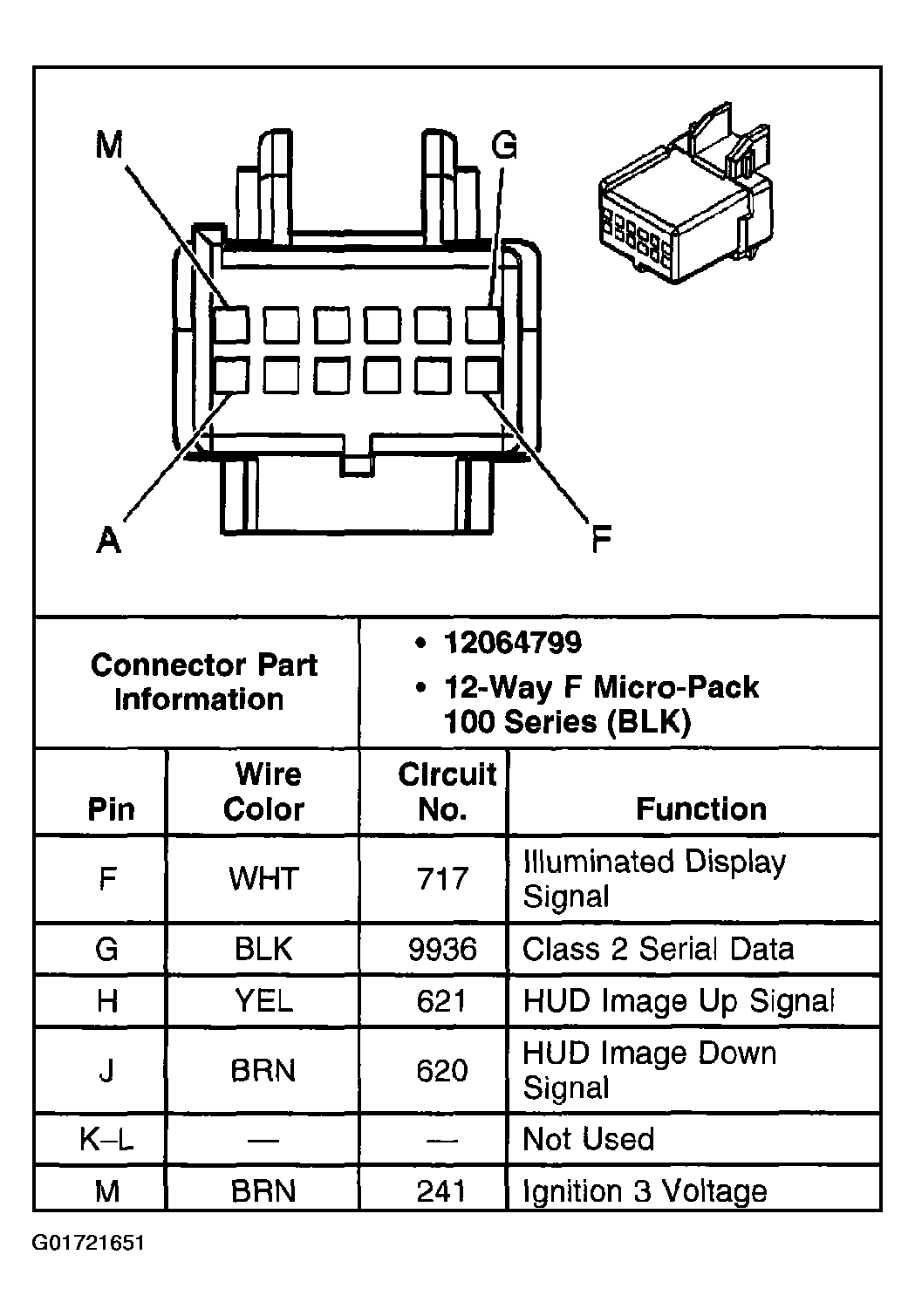

Fig 7: Head Up Display (HUD) Connector End Views (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

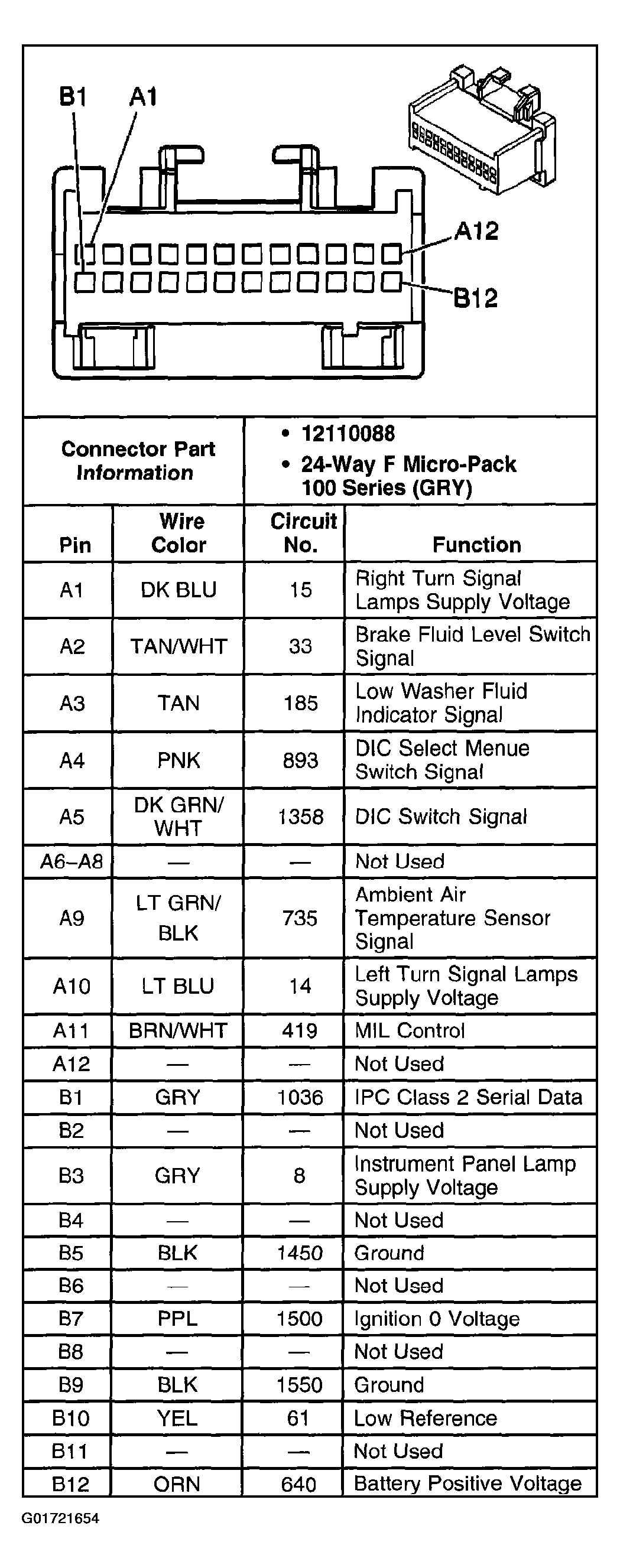

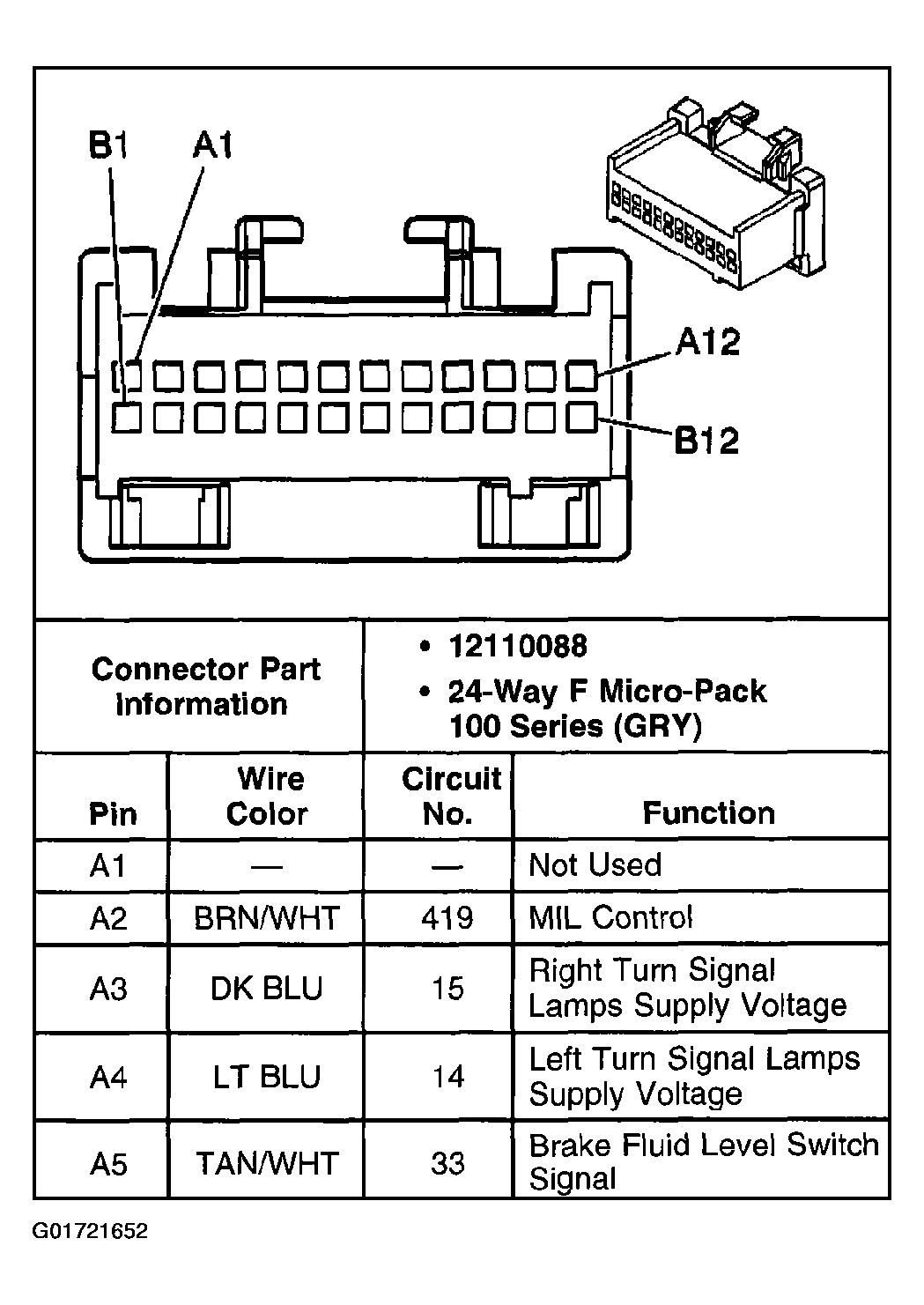

Fig 8: Instrument Panel Cluster (IPC)-Pontiac Connector End Views (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 9: Instrument Panel Cluster (IPC)-Pontiac Connector End Views (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

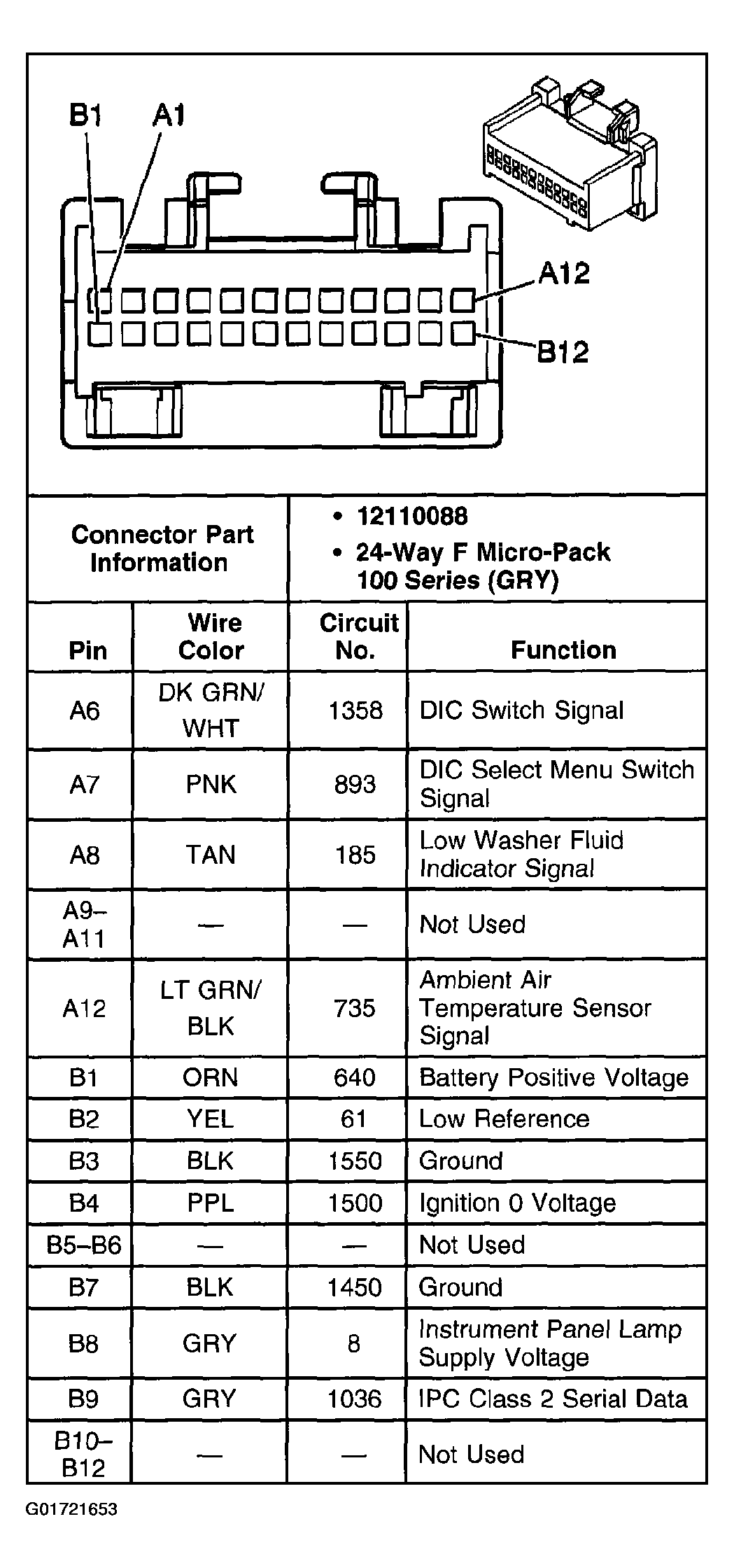

Fig 10: Instrument Panel Cluster (IPC)-Buick Connector End Views

Courtesy of GENERAL MOTORS CORP.

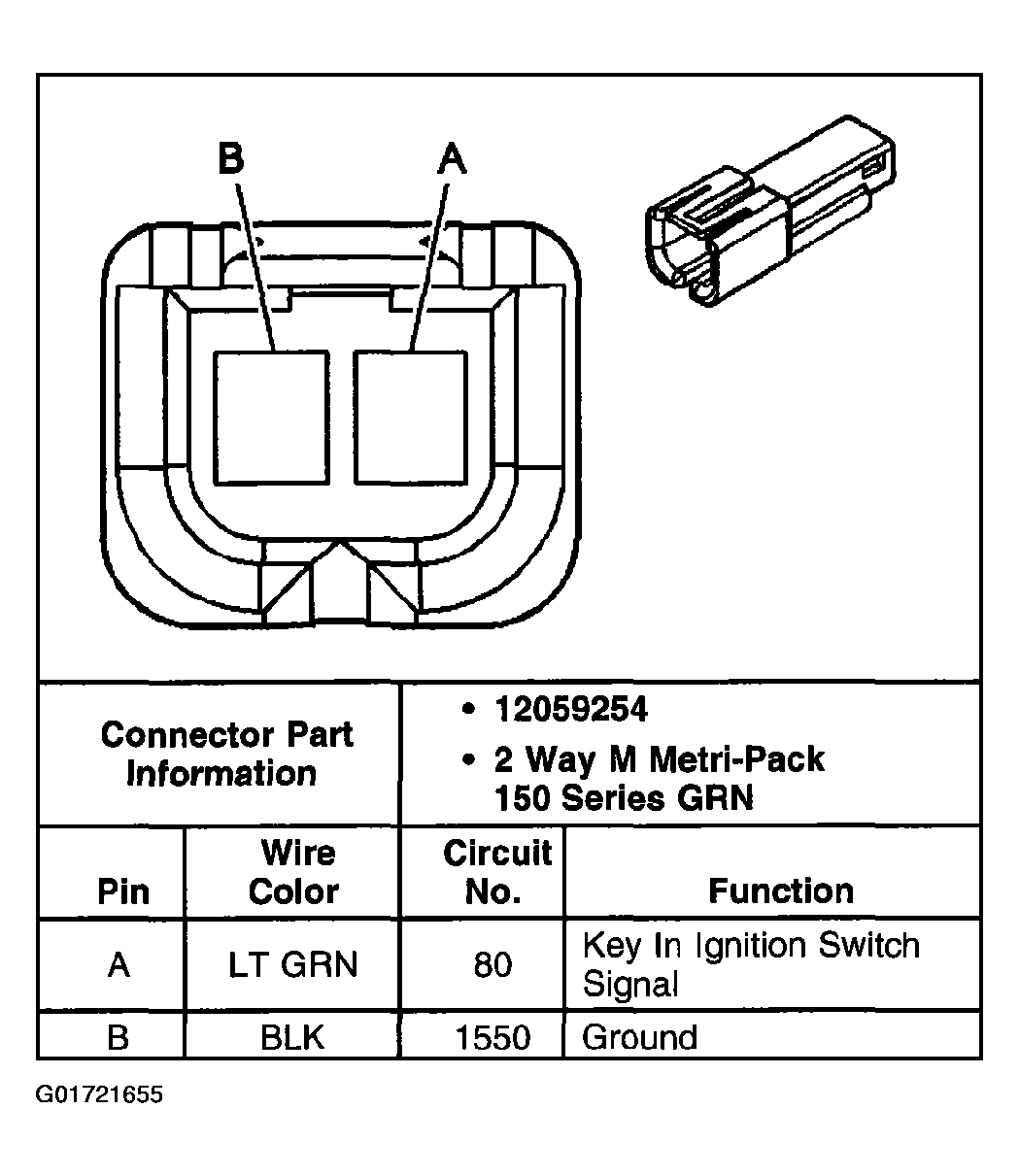

Fig 11: Ignition Key Alarm Switch Connector End Views

Courtesy of GENERAL MOTORS CORP.
