Instrument Panel, Gages, and Console Component Views

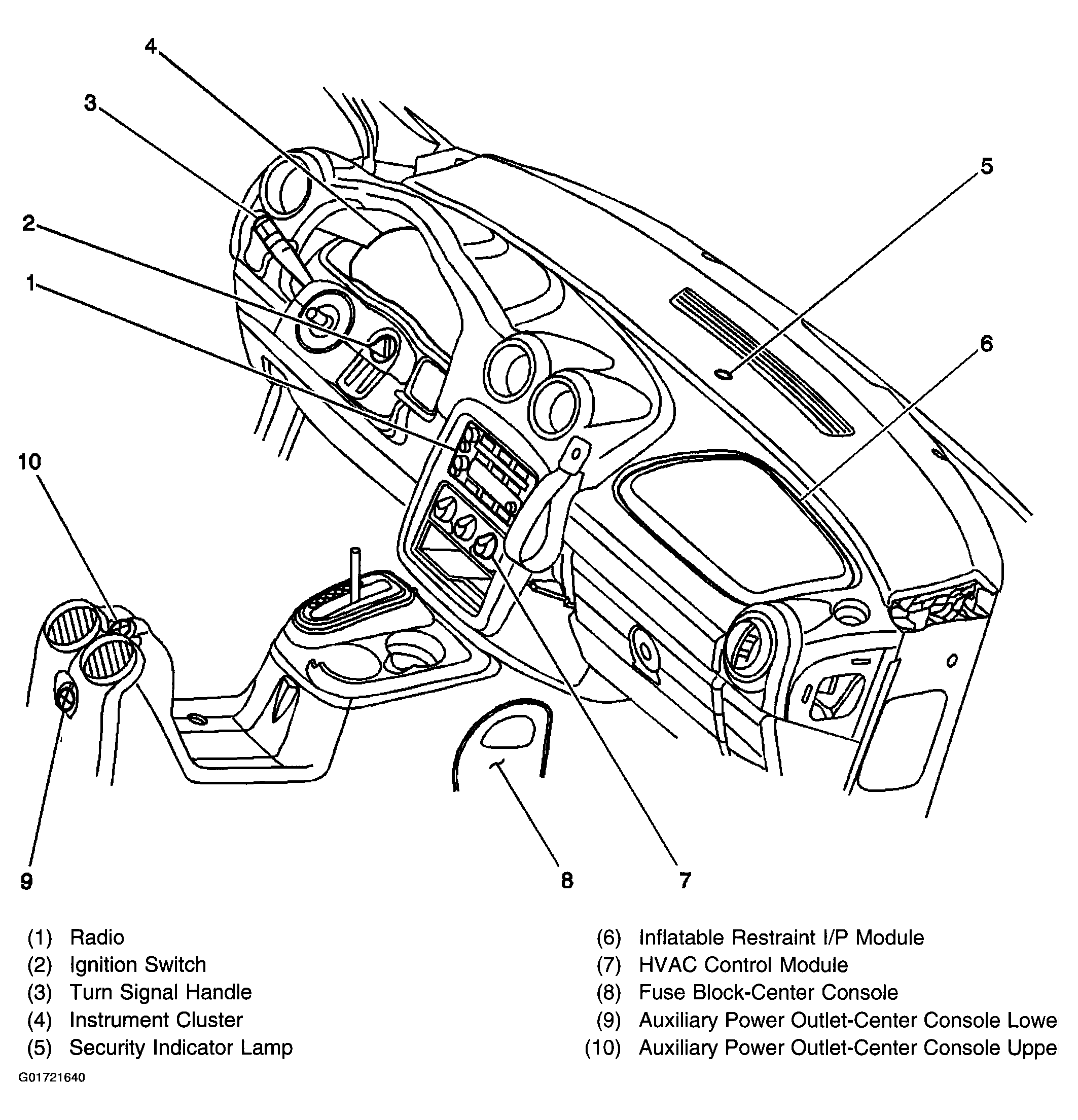

Fig 1: Instrument Panel and Center Console - Pontiac Component Views

Courtesy of GENERAL MOTORS CORP.

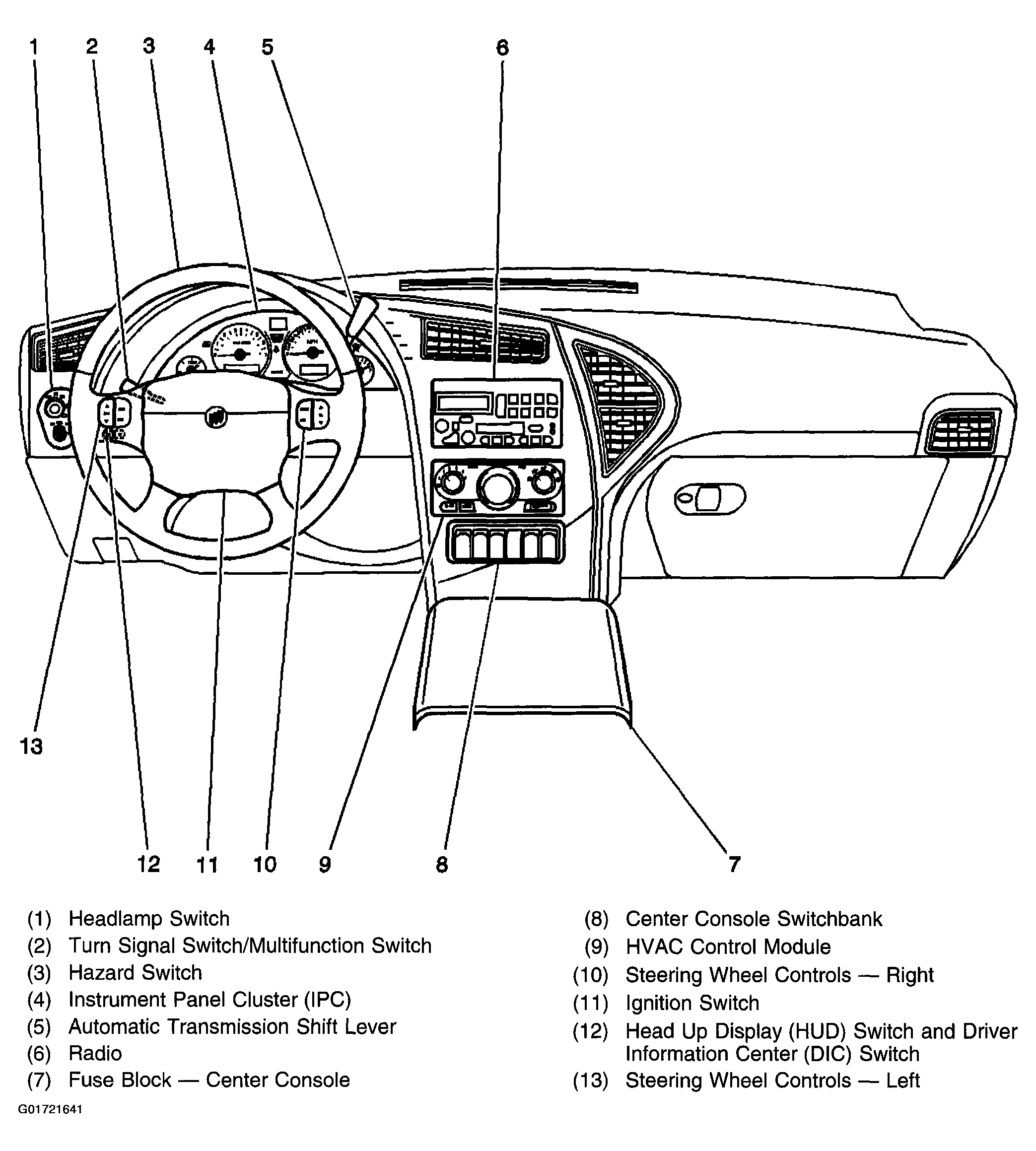

Fig 2: Instrument Panel - Buick Component Views

Courtesy of GENERAL MOTORS CORP.

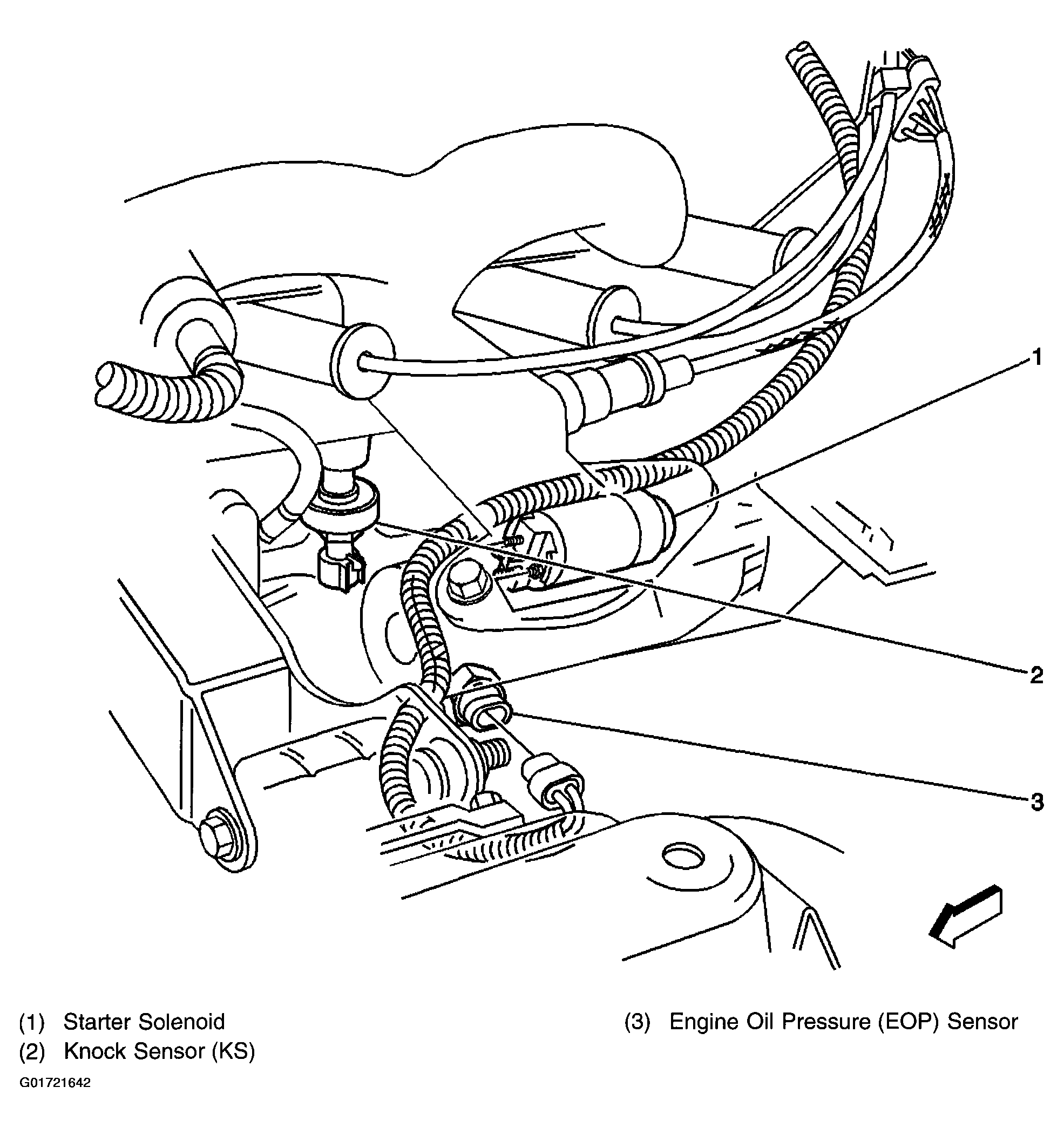

Fig 3: LH Side of Engine Component Views

Courtesy of GENERAL MOTORS CORP.

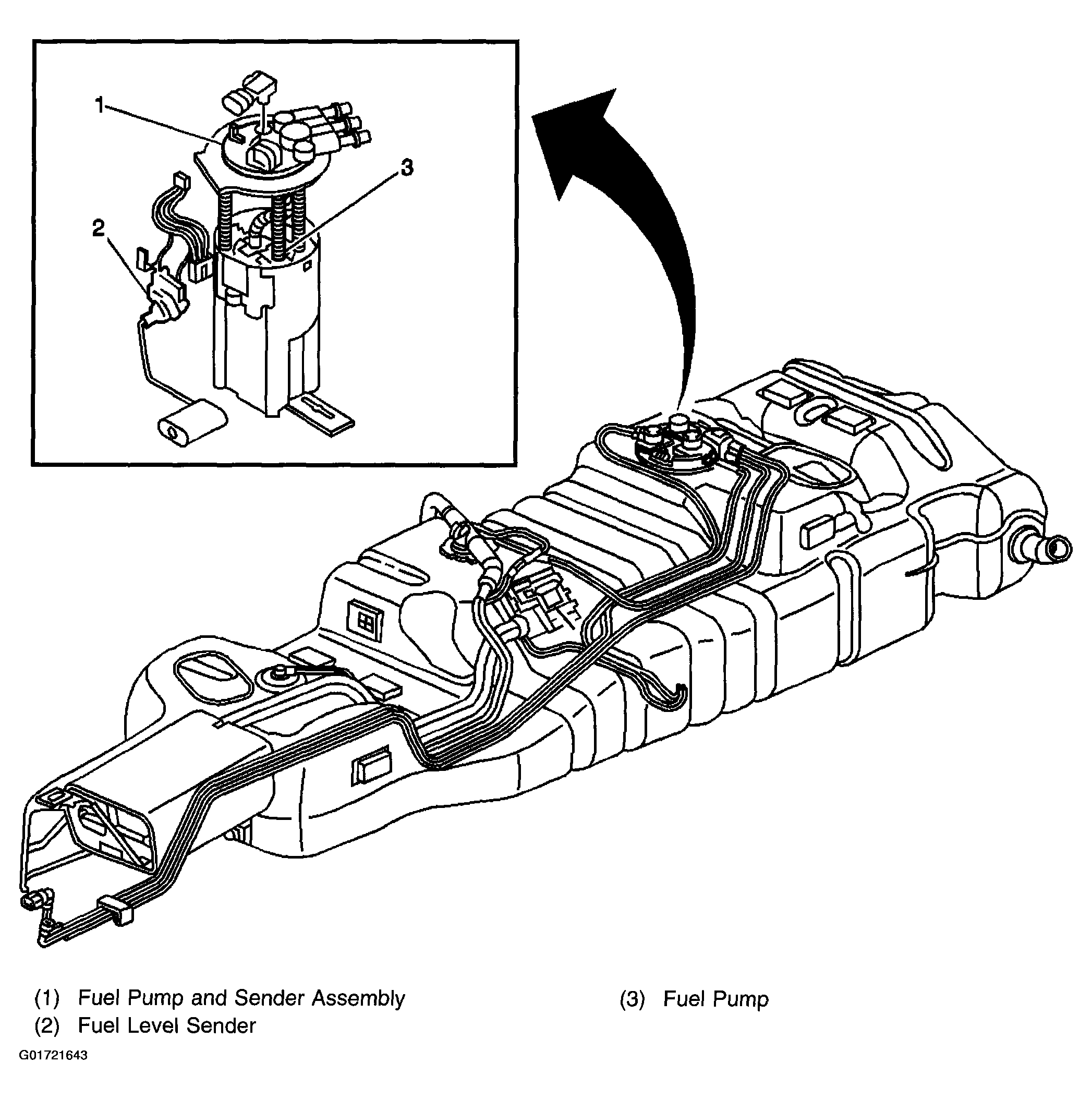

Fig 4: Fuel Tank Component Views

Courtesy of GENERAL MOTORS CORP.

Fig 5: LH Side of Engine Component Views

Courtesy of GENERAL MOTORS CORP.
