Rear Differential Carrier Leak Diagnosis

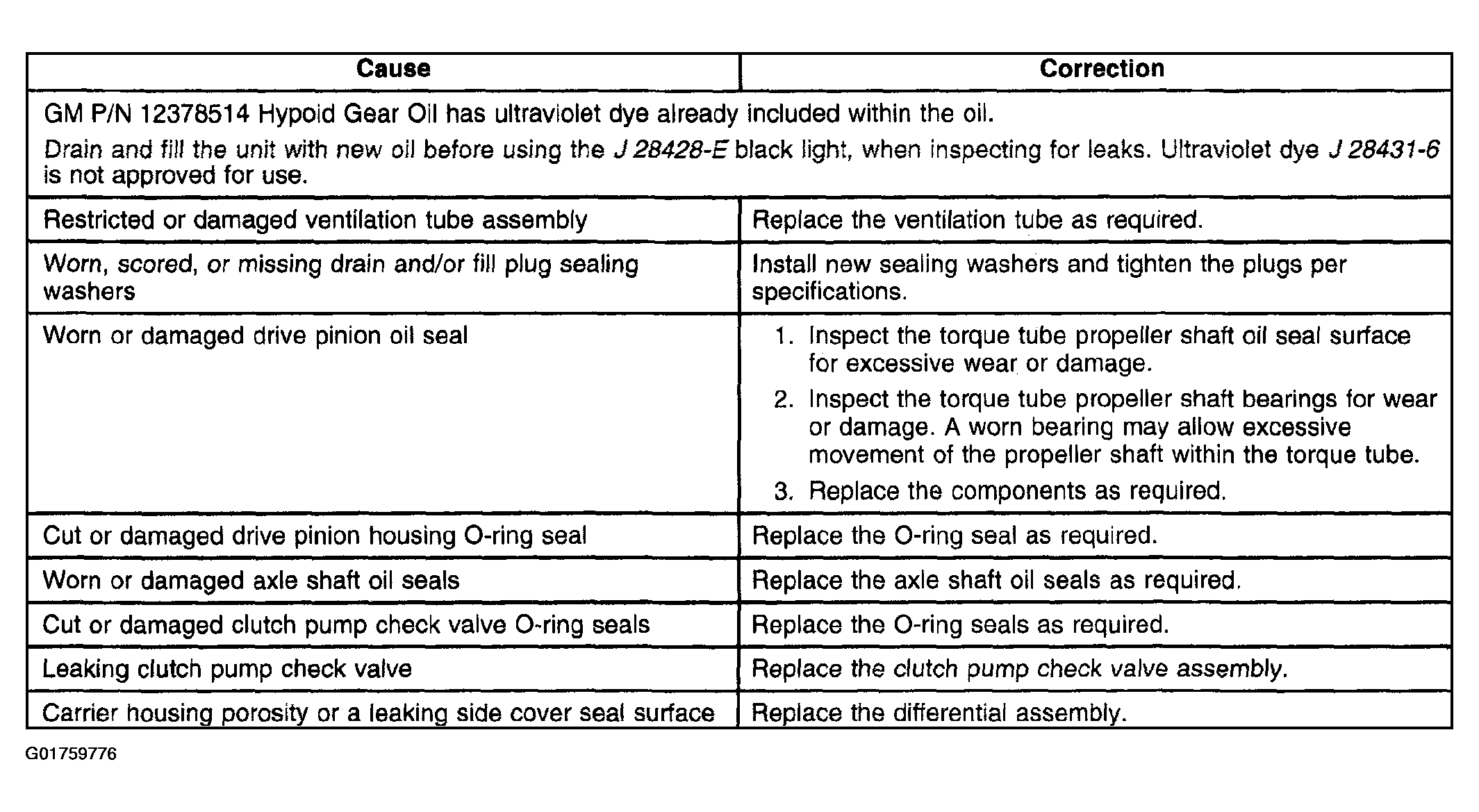

Fig 1: Rear Differential Carrier Leak Diagnosis

G01759776

Courtesy of GENERAL MOTORS CORP.
