Installation Procedure

  1. Using the J 48809  , install the right axle shaft oil seal (1).

    Important  Inspect the sealing surface of the wheel drive shaft inner tri-pot housing to ensure it is free of corrosion. Use a crocus cloth in order to remove any light corrosion and clean the sealing surface with denatured alcohol, or equivalent.

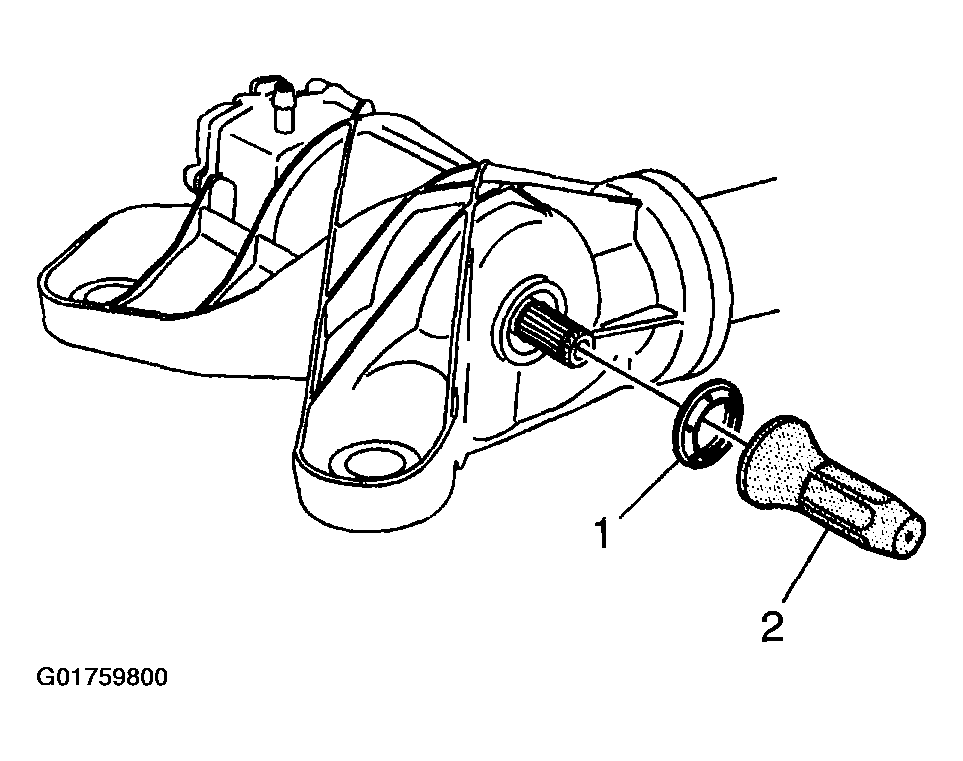

    Fig 1: Installing Rear Axle Shaft Seal (Right)
    G01759800Courtesy of GENERAL MOTORS CORP.
  2. Lubricate the wheel drive shaft sealing surface of the oil seal with synthetic gear oil GM P/N United States 12378514 Canada P/N 88901045 or equivalent.
  3. Install the right wheel drive shaft. See AXLE SHAFTS - REAR article.
  4. Install the right rear tire and wheel assembly
  5. Inspect the differential lubricate level.
  6. Lower the vehicle.
