Installation Procedure

  1. Lubricate the new pinion housing assembly oil seal with synthetic gear oil GM P/N United States 12378514 Canada P/N 88901045 or equivalent.
  2. Use the J 44915  in order to install a new oil seal (2) to the drive pinion housing.

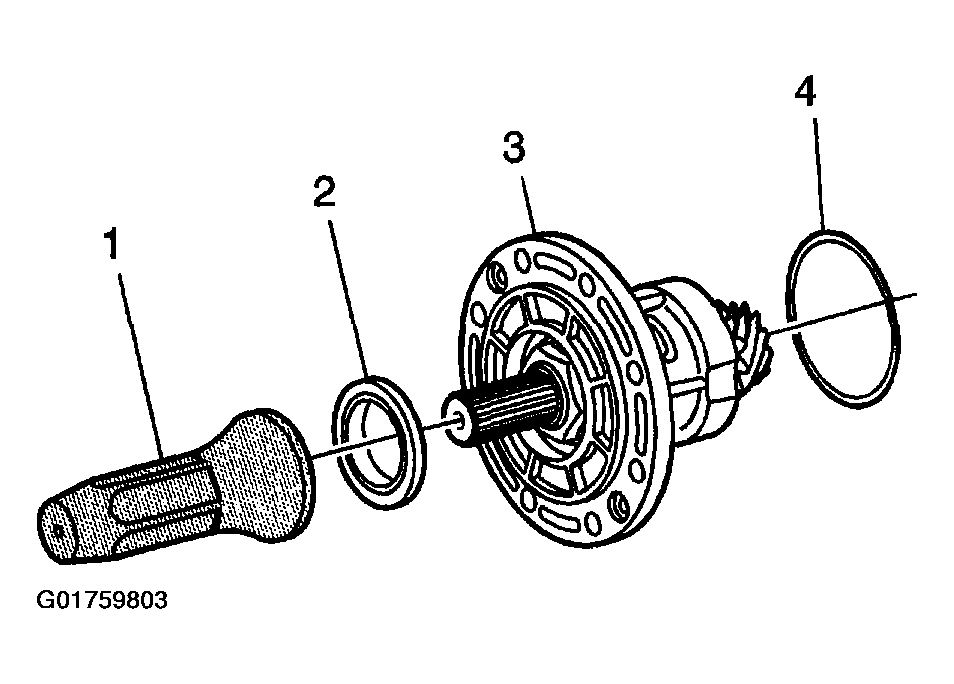

    Fig 1: Pinion Housing Assembly Order
    G01759803Courtesy of GENERAL MOTORS CORP.
  3. Install the torque tube assembly. Refer to TORQUE TUBE ASSEMBLY REPLACEMENT .
  4. Inspect the differential carrier lubricate level.
