Differential Clutch Pump Check Valve Cleaning and Inspection
Courtesy of GENERAL MOTORS CORP.

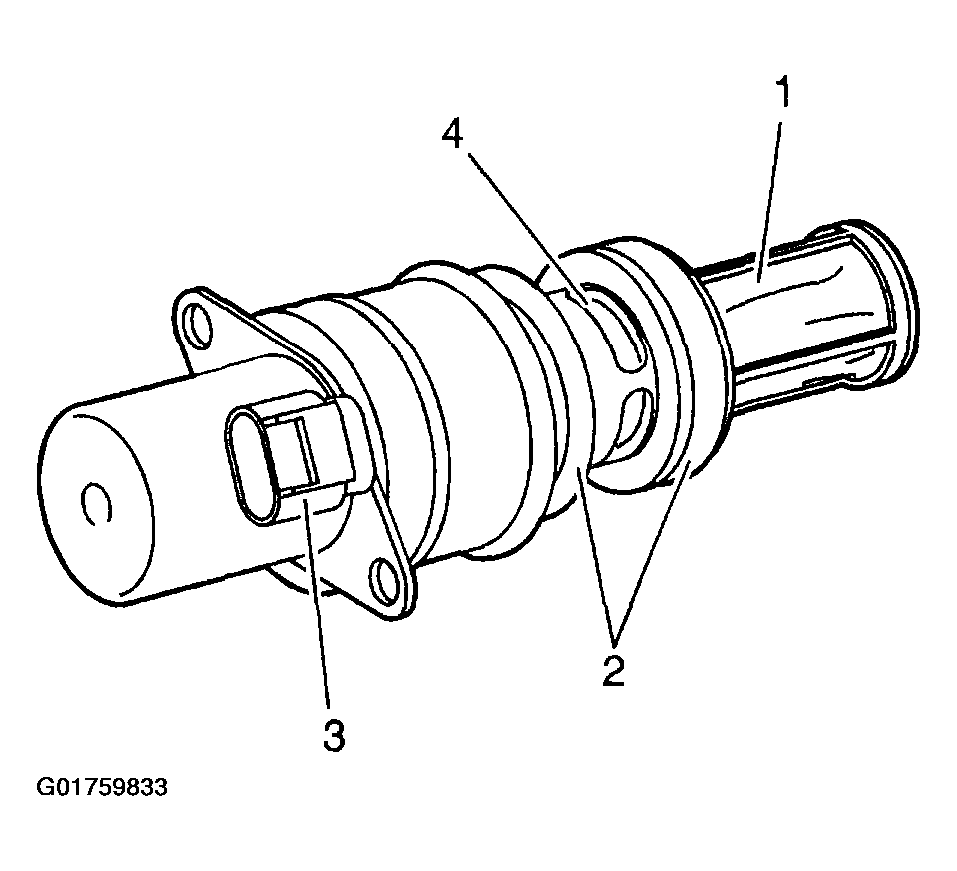

Inspect the inlet valve for the following:
- Damaged, loose, or missing pick up screen (1)
- Damaged or missing O-rings (2)
- Damaged electrical connector (3)
- Oil passages (4) restricted by dirt or debris
